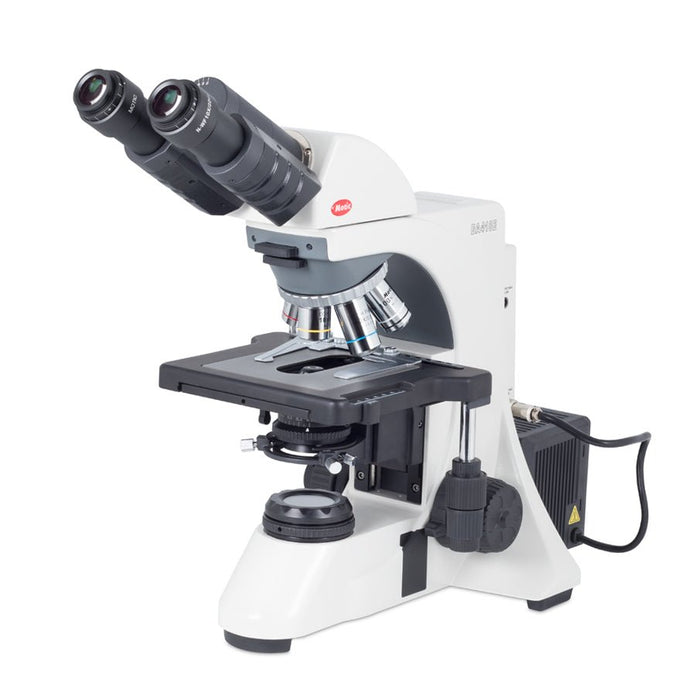

BA410E 3WLED binocular sextuple.

Features

The BA410E is Motic's flagship model, and it displays the highest level of optical performance. With a complete set of EC-H Plan Apochromatic lenses, it allows maximum clarity in colour reproduction and resolution. The BA410E also allows a profound diagnosis for those in pathology, haematology and cytology who require the best colour fidelity. Increased numerical apertures provide an expanded resolution power for a more detailed specimen evaluation.

Specifications

Overview

  • Nominal Height:
    17.1" (43.43 cm)
  • Nominal Width:
    9.5" (24.13 cm)
  • Nominal Length:
    21.7" (55.12 cm)

Technical Data

  • Optical System:
    Colour Corrected Infinity Optical System (CCIS)
  • Observation Tube:
    Binocular head, Siedentopf type
  • Inclination:
    30° inclined, 360° rotating
  • Interpupillary Distance:
    50-75 mm
  • Diopter Adjustment:
    On both eyepieces, ±5 diopter
  • Eyepieces:
    Widefield N-WF10X/22mm with Diopter Adjustment
  • Nosepiece:
    Reversed sextuple
  • Objective Classification:
    CCIS EC-H Plan Achromatic, DIN
  • Objectives:
    4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm)
  • Objective Mounting Thread:
    W 4/5" x 1/36" (RMS standard)
  • Stand Type:
    Upright
  • Stage:
    Mechanical stage with built-in low position rackless coaxial stage control, ceramic insert and sample holder
  • Stage Size:
    180 x 170 mm
  • Stage Size X&Y:
    80 x 55 mm
  • Condenser:
    Focusable and centerable Swing-out Abbe condenser N.A. 0.90/0.13
  • Diaphragm:
    Iris diaphragm
  • Focus Mechanism:
    Coaxial coarse and fine focusing system with tension adjustment
  • Fine Focus Precision:
    1 µm
  • Focusing Stroke:
    27 mm
  • Upper Limit Stop:
    Upper limit stop preset but adjustable
  • Filter Holder:
    On top of the illuminator with fixing cap
  • Transmitted Illumination:
    Koehler Quartz halogen 12V/50W with intensity control
  • Illumination Interchangeability:
    Quartz halogen 6V/30W or LED 3W
  • Illumination Features:
    Auto-OFF and Light Memory function. External lamphouse
  • Transformer:
    Internal
  • Power Supply:
    100-240V (CE)
  • Accessories Included:
    Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, arm rest
  • Net Weight:
    14.2kg
