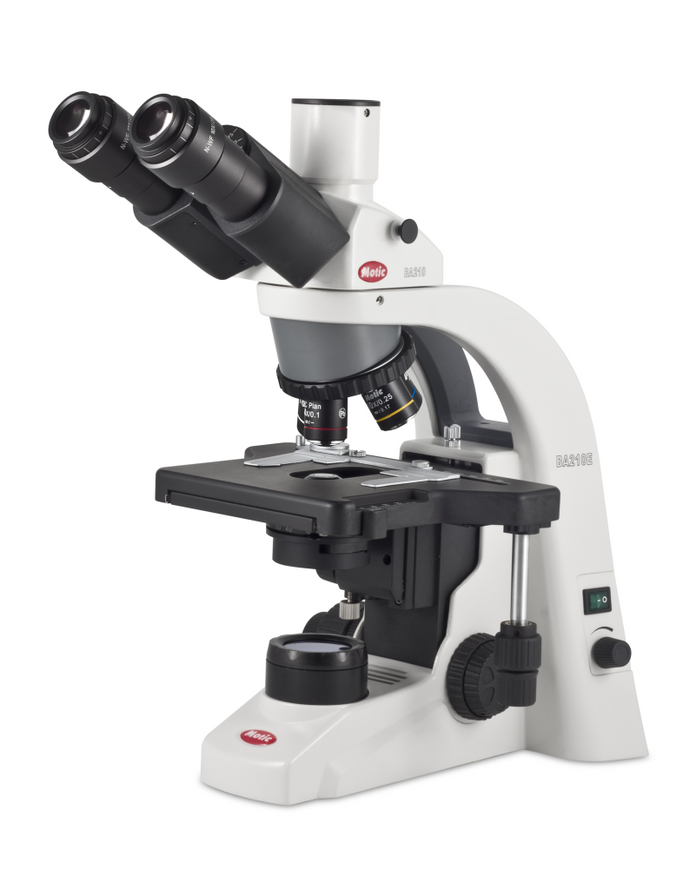

Motic Instruments - 1100100403781 - BA210E LED Trinocular Upright Microscopes (5000K)

Motic Instruments - 1100100403781 - BA210E LED Trinocular Upright Microscopes (5000K)
Motic Instruments - 1100100403781 - BA210E LED Trinocular Upright Microscopes (5000K)
Motic Instruments - 1100100403781 - BA210E LED Trinocular Upright Microscopes (5000K)
Motic Instruments - 1100100403781 - BA210E LED Trinocular Upright Microscopes (5000K)

Motic Instruments - 1100100403781 - BA210E LED Trinocular Upright Microscopes (5000K)

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The BA210S biological compound microscope is designed for advanced biology students, teachers, doctors, and lab technicians. Every aspect of these microscopes contributes to making your daily work easier. The ergonomic shape of the stand and the comfortability of the different heads enables fatigue-free viewing for many hours.

Features

A compound microscope perfect for basic work in life sciences, education, and industrial environments. The use of Motic's Plan Achromatic objectives ensures the clarity and precision of sections, smears, and native transparent samples. Students and lab technicians benefit from the pre-installed optics and illuminations.


Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Specifications

Overview

  • Nominal Height:
    15.6" (39.62 cm)
  • Nominal Width:
    8.7" (22.1 cm)
  • Nominal Length:
    14.2" (36.07 cm)

Technical Data

  • Optical System:
    Colour Corrected Infinity Optical System (CCIS)
  • Observation Tube:
    Trinocular head, Siedentopf type
  • Inclination:
    30° inclined, 360° rotating
  • Interpupillary Distance:
    55-75 mm
  • Diopter Adjustment:
    On both eyepieces, ±5 diopter
  • Eyepieces:
    Widefield N-WF10X/20mm with diopter adjustment
  • Nosepiece:
    Reversed quadruple
  • Objective Classification:
    CCIS® EC Plan Achromatic, DIN
  • Objectives:
    4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm)
  • Objective Mounting Thread:
    W 4/5"x1/36" (RMS standard)
  • Stand Type:
    Upright
  • Stage:
    Mechanical stage with built-in low position rackless coaxial stage control and sample holder
  • Stage Size:
    150 x 150 mm
  • Travel Range X&Y:
    80 x 30 mm
  • Condenser:
    Focusable Abbe condenser N.A. 1.25 with slot for contrast sliders
  • Diaphragm:
    Iris diaphragm
  • Focus Mechanism:
    Coaxial coarse and fine focusing system with tension adjustment
  • Fine Focus Precision:
    2 µm
  • Focusing Stroke:
    20 mm
  • Upper Limit Stop:
    Upper limit stop preset but adjustable
  • Filter Holder:
    On top of the illuminator with fixing cap
  • Transmitted Illumination:
    Quartz halogen 6V/30W with intensity control
  • Illumination Interchangeability:
    Quartz halogen 6V/30W or LED 3W
  • Transformer:
    Internal
  • Power Supply:
    100-240V (CE)
  • Accessories Included:
    Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, cord hanger, thumb screw
  • Net Weight:
    7.2kg
