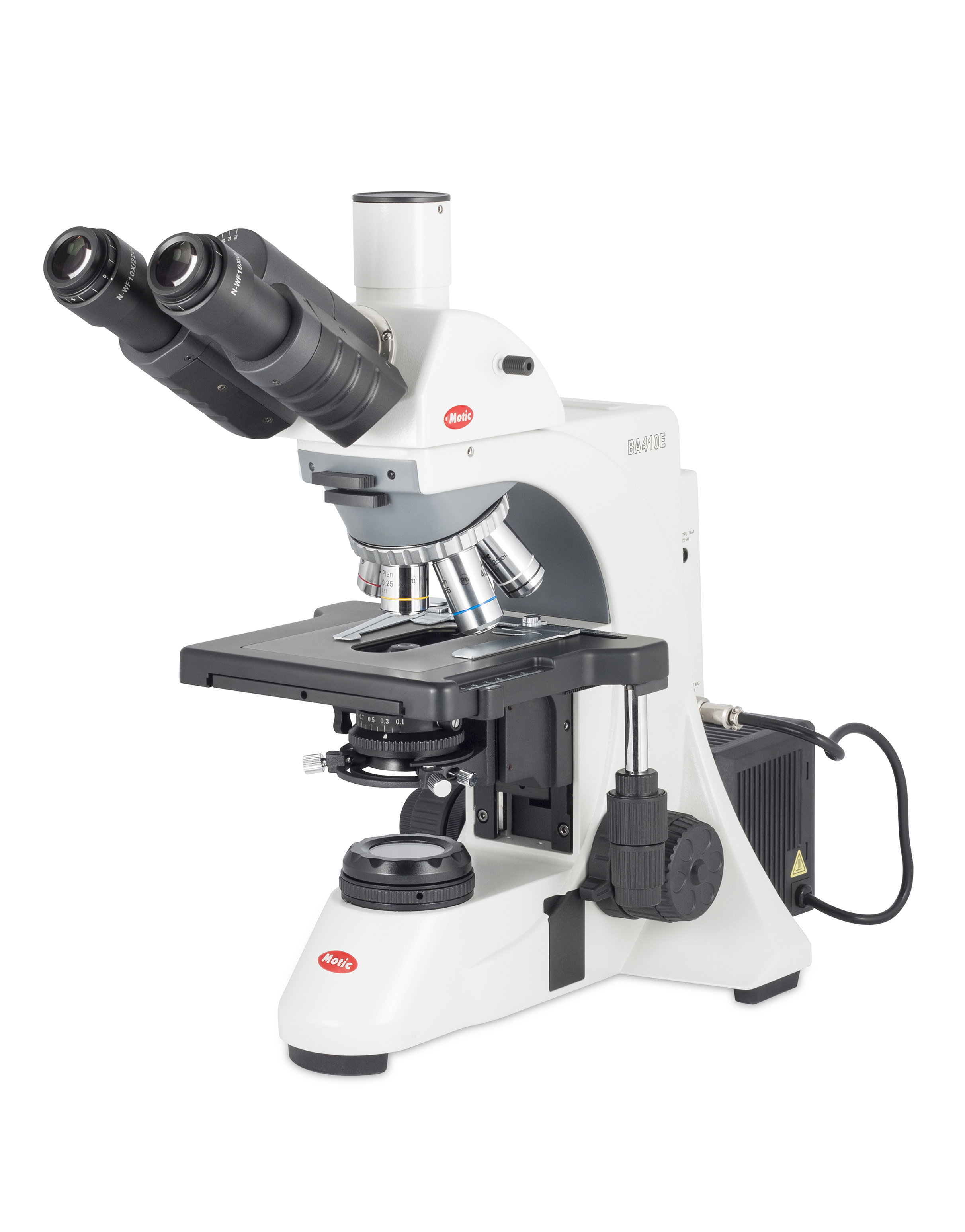

BA410E premium phase lab package.

Features

The BA410E Phase package comes with a turret condenser and other phase equipment allowing users to view their samples using phase contrast.


The BA410E is Motic's flagship model, and it displays the highest level of optical performance. With a complete set of EC-H Plan Apochromatic lenses, it allows maximum clarity in color reproduction and resolution. The BA410E also allows a profound diagnosis for those in pathology, hematology, and cytology who require the best color fidelity. Increased numerical apertures provide an expanded resolution power for a more detailed specimen evaluation.


Note: The BA410E is a custom order item.

Specifications

Overview

  • Nominal Height:
    17.1" (43.43 cm)
  • Nominal Width:
    9.5" (24.13 cm)
  • Nominal Length:
    21.7" (55.12 cm)

Technical Data

  • Optical System:
    Colour Corrected Infinity Optical System (CCIS)
  • Observation Tube:
    Trinocular head, Siedentopf type
  • Condenser:
    Focusable and centerable Swing-out Abbe condenser N.A. 0.90/0.13
  • Darkfield:
    Iris diaphragm
  • Data Transfer:
    Optional slider/turret
  • Diopter Adjustment:
    On both eyepieces, ±5 diopter
  • Eyepieces:
    Widefield N-WF10X/22mm with Diopter Adjustment
  • Filter Holder:
    On top of the illuminator with fixing cap
  • Fine Focus Precision:
    1 µm
  • Fluorescence:
    Optional HBO
  • Focus Mechanism:
    Coaxial coarse and fine focusing system with tension adjustment
  • Focusing Stroke:
    27 mm
  • Illumination Features:
    Auto-OFF and Light Memory function. External lamphouse.
  • Illumination Interchangeability:
    Quartz halogen 12V/50W or LED 3W
  • Inclination:
    30° inclined, 360° rotating
  • Interpupillary Distance:
    50-75 mm
  • Nosepiece:
    Reversed sextuple
  • Objective Classification:
    CCIS EC-H Plan Achromatic, DIN
  • Objective Mounting Thread:
    W 4/5" x 1/36" (RMS standard)
  • Objectives:
    4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm)
  • Phase Contrast:
    Optional slider/turret
  • Polarization:
    Optional sliders/add on
  • Stage:
    Mechanical stage with built-in low position rackless coaxial stage control, ceramic insert and sample holder
  • Stage Size:
    180 x 170 mm
  • Stand Type:
    Upright
  • Standard Contrast Technique:
    Brightfield
  • Transmitted Illumination:
    Koehler Quartz halogen 12V/50W with intensity control
  • Stage Size X&Y:
    80 x 55 mm
  • Upper Limit Stop:
    Upper limit stop preset but adjustable
  • Transformer:
    Internal
  • Power Supply:
    100-240V (CE)
  • Accessories Included:
    Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, arm rest
  • Weight Net:
    14.2kg
