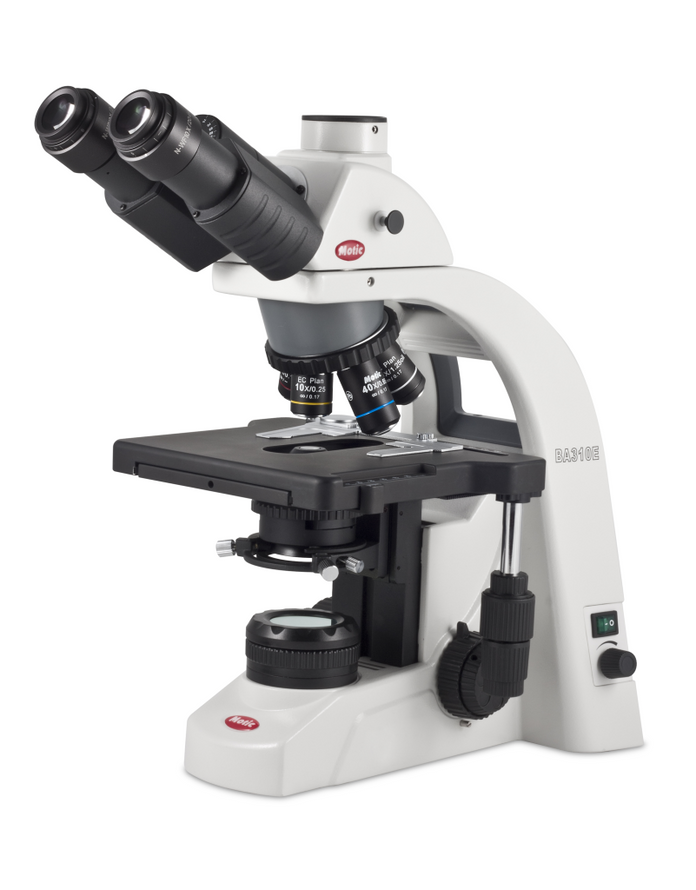

The BA310 is designed for the rigors of daily routine work in the demanding applications of universities, clinics, laboratories, and many other life sciences or medical applications requiring quality optical performance.

Features

The BA310 is designed for the rigors of daily routine work in the demanding applications of universities, clinics, laboratories, and many other life sciences or medical applications requiring quality optical performance. BA310's full Kohler configuration provides maximum illumination quality for even the most demanding samples. Additional contrast methods like Phase contrast, polarization, and darkfield and discussion/teaching devices ensure that the BA310 offers long term functionality to all user levels.

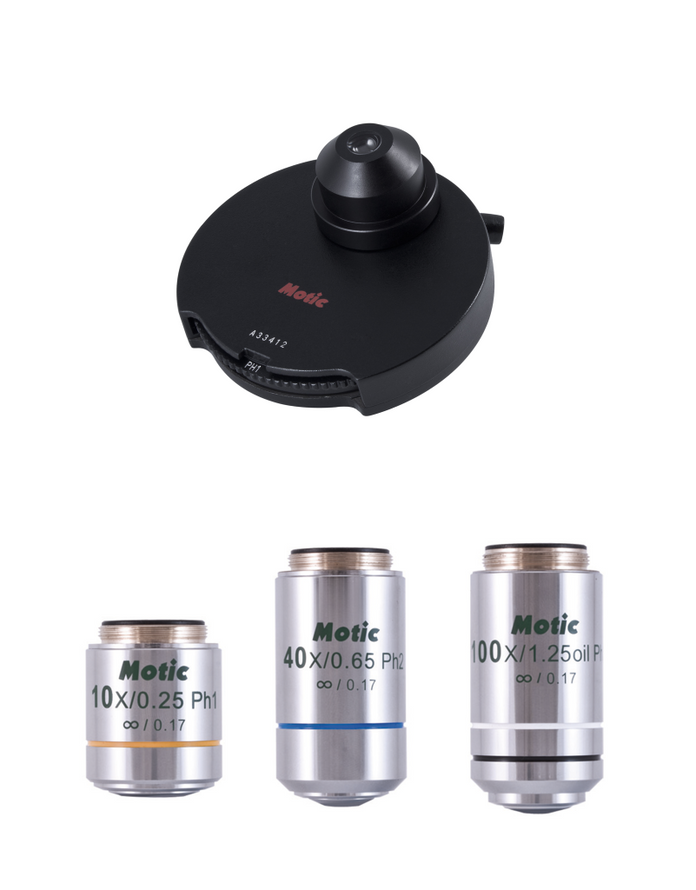

The BA310E LED Phase package contains everything in the BA310E LED along with phase accessories including a turret condenser, phase objectives and phase centering telescope. The turret condenser allows the user to switch between brightfield, darkfield and different phase settings.

Specifications

Overview

  • Nominal Height:
    15.7" (39.88 cm)
  • Nominal Width:
    8.7" (22.1 cm)
  • Nominal Length:
    15.7" (39.88 cm)

Technical Data

  • Observation Tube:
    Trinocular head, Siedentopf type, 360° swiveling
  • Optical System:
    Colour Corrected Infinity Optical System (CCIS)
  • Condenser:
    Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
  • Darkfield:
    Optional slider/turret
  • Diaphragm:
    Iris diaphragm
  • Diopter Adjustment:
    On both eyepieces, ±5 diopter
  • Eyepieces:
    Widefield N-WF10X/20mm with Diopter Adjustment
  • Filter Holder:
    On top of the illuminator with fixing cap
  • Fine Focus Precision:
    2 µm
  • Fluorescence:
    Optional LED
  • Focus Mechanism:
    Coaxial coarse and fine focusing system with tension adjustment
  • Focusing Stroke:
    20 mm
  • Illumination Interchangeability:
    Quartz halogen 6V/30W or LED 3W
  • Inclination:
    30° inclined, 360° rotating
  • Interpupillary Distance:
    48-75 mm
  • Nosepiece:
    Reversed quintuple
  • Objective Classification:
    CCIS EC Plan Achromatic, DIN
  • Objective Mounting Thread:
    W 4/5" x 1/36" (RMS standard)
  • Objectives:
    4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm)
  • Phase Contrast:
    Optional slider/turret
  • Polarization:
    Optional add-on
  • Stage:
    Mechanical stage with built-in low position rackless coaxial stage control with tension adjustment and sample holder
  • Stage Size:
    180 x 170 mm
  • Stand Type:
    Upright
  • Standard Contrast Technique:
    Brightfield
  • Transmitted Illumination:
    Koehler Quartz halogen 6V/30W with intensity control
  • Stage Size X&Y:
    80 x 55 mm
  • Upper Limit Stop:
    Upper limit stop preset but adjustable
  • Transformer:
    Internal
  • Power Supply:
    100-240V (CE)
  • Accessories Included:
    Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, cord hanger, thumb screw
  • Weight Net:
    8.6kg
