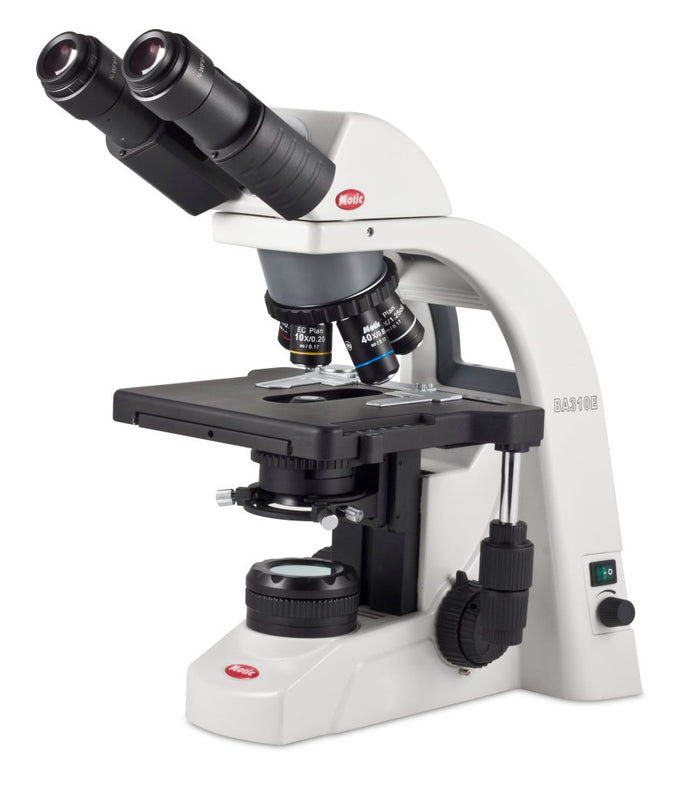

Motic Instruments - 1100100402631 - BA310E LED Binocular Upright Microscopes (6000K)

Motic Instruments - 1100100402631 - BA310E LED Binocular Upright Microscopes (6000K)

Motic Instruments - 1100100402631 - BA310E LED Binocular Upright Microscopes (6000K)

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The BA310 is designed for the rigors of daily routine work in the demanding applications of universities, clinics, laboratories, and many other life sciences or medical applications requiring quality optical performance.

Features

The BA310 is designed for the rigors of daily routine work in the demanding applications of universities, clinics, laboratories, and many other life sciences or medical applications requiring quality optical performance. BA310's full Kohler configuration provides maximum illumination quality for even the most demanding samples. Additional contrast methods like Phase contrast, polarization, and darkfield and discussion/teaching devices ensure that the BA310 offers long term functionality to all user levels.


Committed to the concept of continuously improving its models, Motic’s Elite series microscopes represent Motic’s most advanced models. Featuring Motic’s Infinity Optical System and the improved CCIS EC Plan objective lenses, the BA310 Elite provides superior image clarity and contrast. The elite models introduce a new rackless stage concept without a prominent gear rack which allows even more convenient use of the X/Y movement. The elite models also allow easy interchangeability of its 6V/30W Halogen bulb with LED modules.


Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Specifications

Overview

  • Nominal Height:
    15.7" (39.88 cm)
  • Nominal Width:
    8.7" (22.1 cm)
  • Nominal Length:
    15.7" (39.88 cm)

Technical Data

  • Optical System:
    Colour Corrected Infinity Optical System (CCIS)
  • Observation Tube:
    Binocular head, Siedentopf type, 360° swiveling
  • Inclination:
    30° inclined, 360° rotating
  • Interpupillary Distance:
    48-75 mm
  • Diopter Adjustment:
    On both eyepieces, ±5 diopter
  • Eyepieces:
    Widefield N-WF10X/20mm with diopter adjustment
  • Nosepiece:
    Reversed quintuple
  • Objective Classification:
    CCIS EC Plan Achromatic, DIN
  • Objectives:
    4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm)
  • Objective Mounting Thread:
    W 4/5"x1/36" (RMS standard)
  • Stand Type:
    Upright
  • Stage:
    Mechanical stage with built-in low position rackless coaxial stage control with tension adjustment and sample holder
  • Stage Size:
    180 x 170 mm
  • Travel Range X&Y:
    80 x 55 mm
  • Condenser:
    Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
  • Diaphragm:
    Iris diaphragm
  • Focus Mechanism:
    Coaxial coarse and fine focusing system with tension adjustment
  • Fine Focus Precision:
    2 µm
  • Focusing Stroke:
    20 mm
  • Upper Limit Stop:
    Upper limit stop preset but adjustable
  • Filter Holder:
    On top of the illuminator with fixing cap
  • Transmitted Illumination:
    Koehler Quartz halogen 6V/30W with intensity control
  • Illumination Interchangeability:
    Quartz halogen 6V/30W or LED 3W
  • Transformer:
    Internal
  • Power Supply:
    100-240V (CE)
  • Accessories Included:
    Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, cord hanger, thumb screw
  • Net Weight:
    8.6kg
