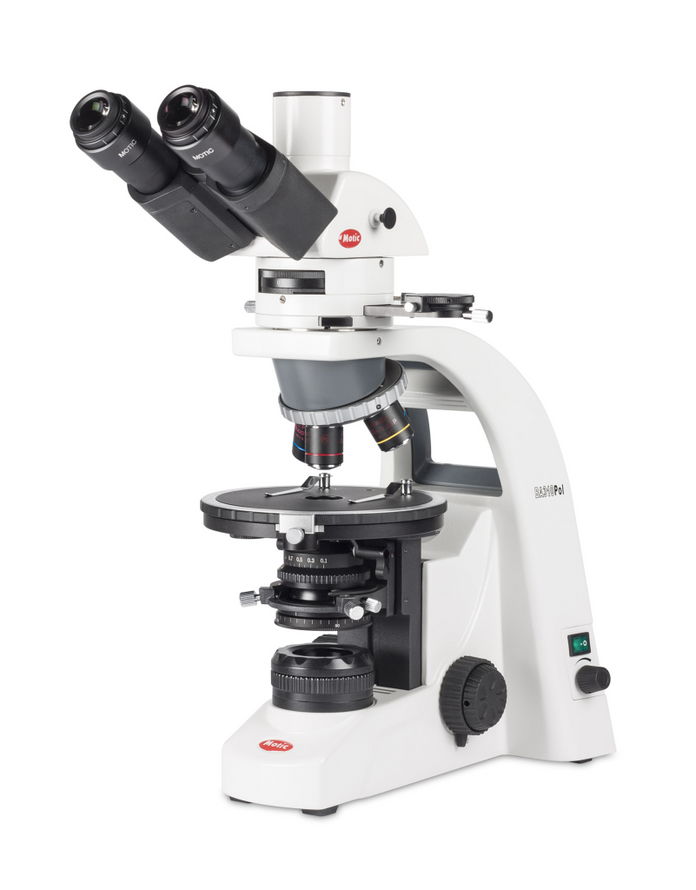

BA310Pol binocular.

Features

Based on the success of its popular BA Microscope Series for biomedical applications, Motic is pleased to introduce the BA310POL, an extremely powerful yet affordable polarization microscope for transmitted light samples.


The BA310POL is designed for the examination of birefringent samples from petrography and mineralogy, and can also be used for the synthetic materials industry where repeatable observations can be performed with efficiency and reliability. The BA310POL also works especially well in educational applications of material professions, where affordability and ease-of-use are the key requirements.

Specifications

Overview

  • Nominal Height:
    17.8" (45.21 cm)
  • Nominal Width:
    8.7" (22.1 cm)
  • Nominal Length:
    15.7" (39.88 cm)

Technical Data

  • Optical System:
    Colour Corrected Infinity Optical System (CCIS)
  • Observation Tube:
    Binocular head, Siedentopf type
  • Inclination:
    30° inclined, 360° rotating
  • Interpupillary Distance:
    55-75 mm
  • Diopter Adjustment:
    On both eyepieces, ±5 diopter
  • Eyepieces:
    Widefield N-WF10X/20mm with Diopter Adjustment and cross reticle on right eyepiece

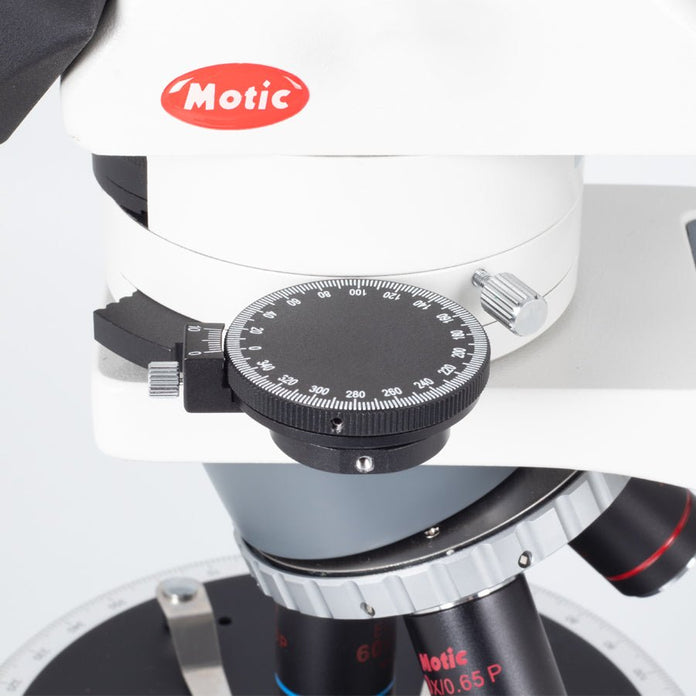

  • Intermediate Body:
    Rotatable analyzer 360°, Bertrand lens 0.5X, slot for compensators
  • Nosepiece:
    Reversed quadruple, single centerable positions
  • Objective Classification:
    CCIS EC Plan Achromatic (strain-free), DIN

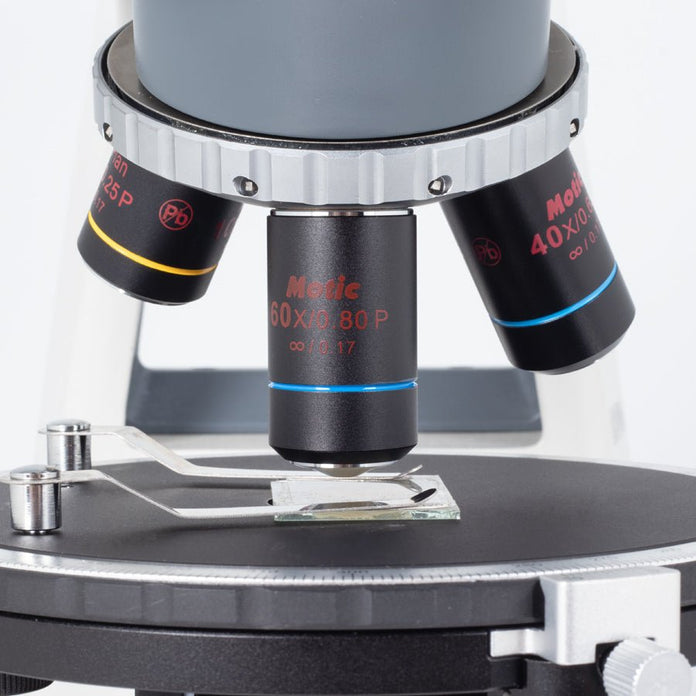

  • Objectives:
    4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 60X/0.80/S (WD 0.35mm)
  • Objective Mounting Thread:
    W 4/5" x 1/36" (RMS standard)
  • Stand Type:
    Upright

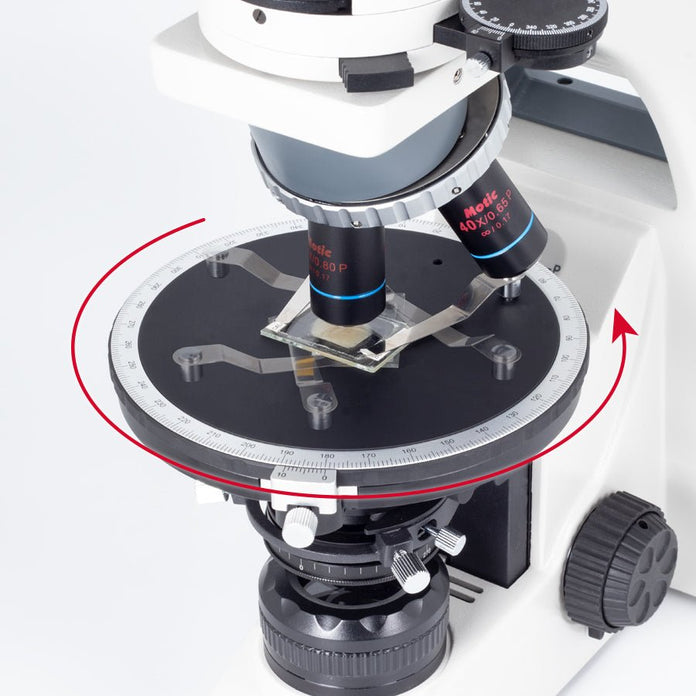

  • Stage:
    Circular rotating 360°, lockable
  • Stage Size:
    Ø160 mm
  • Stage Size X&Y:
    1° increments, 0.1° vernier scale

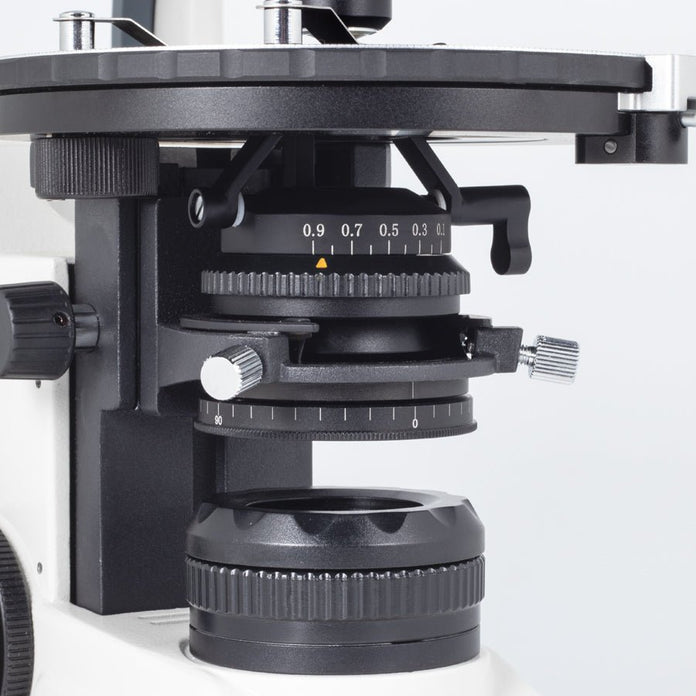

  • Condenser:
    Focusable and centerable Achromat Swing-out Abbe condenser N.A. 0.90/0.13 (strain-free)
  • Diaphragm:
    Iris diaphragm
  • Focus Mechanism:
    Coaxial coarse and fine focusing system with tension adjustment
  • Fine Focus Precision:
    2 µm
  • Focusing Stroke:
    17 mm
  • Upper Limit Stop:
    Preset but adjustable
  • Filter Holder:
    On top of the illuminator with fixing cap
  • Transmitted Illumination:
    Koehler Quartz halogen 6V/30W with intensity control
  • Illumination Features:
    Rotatable polarizer 360°
  • Transformer:
    Internal
  • Power Supply:
    100-240V (CE)
  • Accessories Included:
    Dust cover, power cord, Allen key, blue filter, spare fuse, empty insertion plate
  • Net Weight:
    10.4kg
