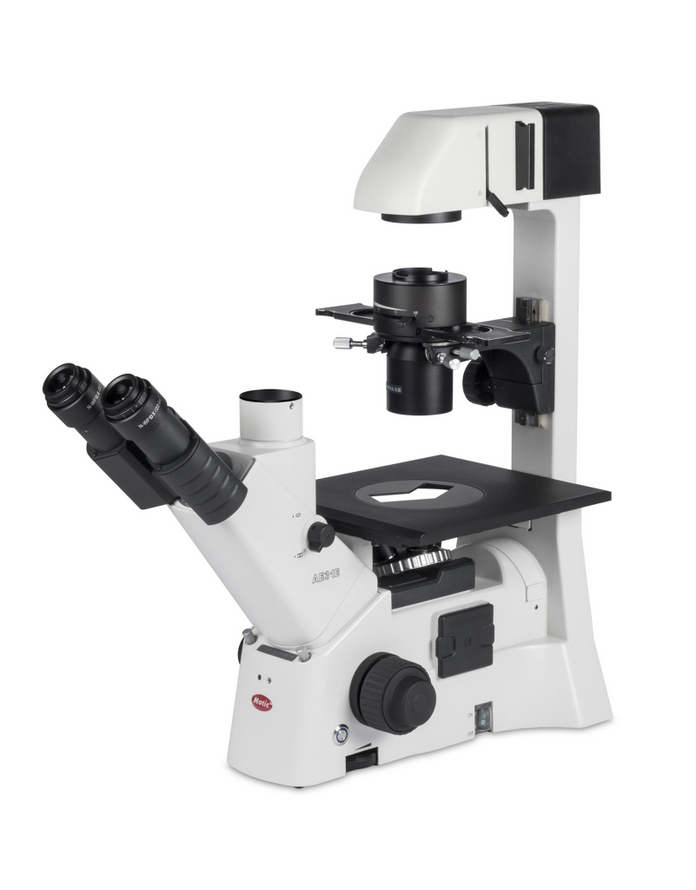

Motic Instruments - 1100100200841 - AE31E LED Trinocular Inverted Microscopes

Motic Instruments - 1100100200841 - AE31E LED Trinocular Inverted Microscopes

Motic Instruments - 1100100200841 - AE31E LED Trinocular Inverted Microscopes

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The AE31 Elite is a refined inverted microscope with an extended focus on practical aspects.

Features

The AE31 Elite is a refined inverted microscope with an extended focus on practical aspects. In order to harmonize the optical setup of our CCIS© Infinity concept, the AE31 Elite works with the newest generation of LWD Plan Achromatic lenses. All accessories from the BA series such as the C-mounts, additional eyepieces, etc. can be used without restriction on AE31 Elite. Upgradable options like fluorescence are available within this inverted microscope series.

Specifications

Overview

  • Nominal Height:
    20.8" (52.83 cm)
  • Nominal Width:
    7.9" (20.07 cm)
  • Nominal Length:
    21.9" (55.63 cm)

Technical Data

  • Optical System:
    Colour Corrected Infinity Optical System (CCIS)
  • Observation Tube:
    Trinocular head, Siedentopf type, 360° swiveling
  • Inclination:
    45° inclined
  • Interpupillary Distance:
    48-75 mm
  • Diopter Adjustment:
    On both eyepieces, ±5 diopter
  • Eyepieces:
    Widefield N-WF10X/20mm with diopter adjustment
  • Nosepiece:
    Left side facing quintuple
  • Objective Classification:
    CCIS Plan Achromatic, DIN
  • Objectives:
    4X/0.10 (WD 12.6mm), PH10X/0.25 (WD 4.1mm), LWD PH20X/0.30 (WD 4.7mm), LWD PH40X/0.50 (WD 3.0mm)
  • Objective Mounting Thread:
    W 4/5" x 1/36" (RMS standard)
  • Stand Type:
    Inverted
  • Stage:
    Plain stage with metal and glass stage inserts
  • Stage Size:
    200 x 239 mm
  • Condenser:
    Focusable and centerable ELWD condenser N.A. 0.30 (WD 72mm)
  • Diaphragm:
    Iris diaphragm
  • Focus Mechanism:
    Coaxial coarse and fine focusing system with tension adjustment
  • Fine Focus Precision:
    2 μm
  • Focusing Stroke:
    10 mm
  • Free Working Distance:
    Working distance without condenser 231mm
  • Transmitted Illumination:
    Koehler Quartz halogen 6V/30W with intensity control
  • Illumination Interchangeability:
    Quartz halogen 6V/30W or LED 3W
  • Illumination Features:
    Auto-OFF and Light Memory function
  • Transformer:
    External
  • Power Supply:
    100-240V (CE)
  • Accessories:
    Dust cover, power cord, Allen key, blue, green interference and ground glass filters, phase ring Ph1, centering telescope, centering keys, spare fuse
  • Net Weight:
    11.7kg
