Crystal Industries - TR-05UA - Large Capacity Tube Rotator
Features
Tube Rotators are the ideal instruments for applications requiring highly efficient and consistent mixing. They are widely used in clinical, research, and academic laboratories. Crystal Tech offers both a fixed-speed Tube Rotator as well as a variable speed model with a timer. This High-Capacity Tube Rotator is well suited for the high throughput mixing of samples of various sizes.
- 24 RPM Rotation
- Tilt angle is adjustable to accommodate different applications

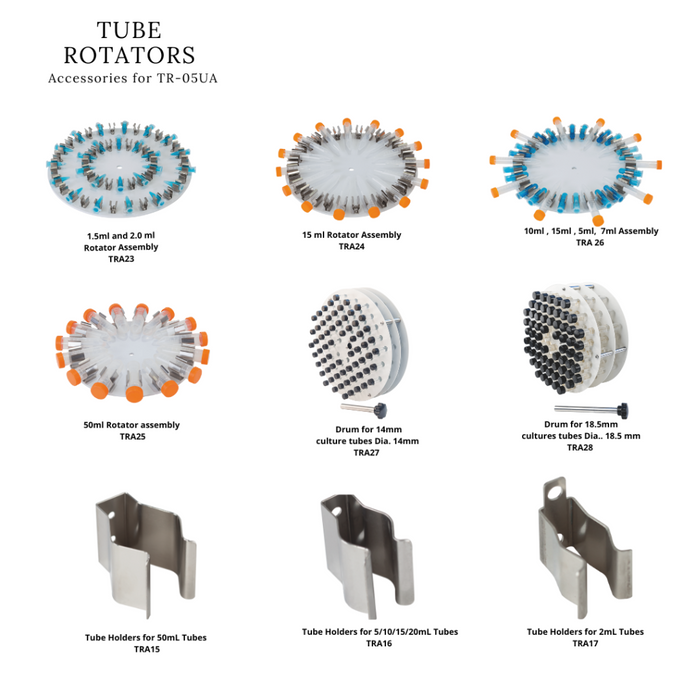

- Variable types of tube holders are available to hold different tubes
- All units are compatible with cold room and incubator environments
- TR-04UA and TR-05UA models have speed adjustment, continuous and timer mode with automatic stop
Specifications
Overview
-
Nominal Height:18.3" (46.48 cm)
-
Nominal Width:17.3" (43.94 cm)
-
Nominal Length:11.7" (29.72 cm)
Technical Data
-
Speed:5-80 RPM
-
Speed Accuracy:±1 RPM
-
Tilt Angle:95"~180° (Si x Steps
-
Timer:0~99 hr 59 min
-
Carousel Diameter:Ø290 mm (Ø11.4 inch)
-
Capacity:15 x 50ml/30 x 15ml/ 10 x 10/15ml + 20 x 5/7ml/ 64 x Ø18.5mm Culture Tubes/ 64 x Ø14mm Culture Tubes
-
Display:LED
-
Accessories Included in Standard Packaging:TRA25 (Carousel for 15 x 50ml Tubes)
-
Operating Environment-Ambient Temperature:4°C-40°C
-
Operating Environment-Relative Humidity:≤ 80%
-
Power Supply:AC110V, 60Hz
-
Max . Power:8W
-
Net Weight:8.1 kg (17.7 lb)
-
Protection Level:IP21
-
Certifications:CCSAus, CE, RoHS, WEEE
