Crystal Industries - TR-02UA - Variable Speed Tube Revolver with Digital Display
Features

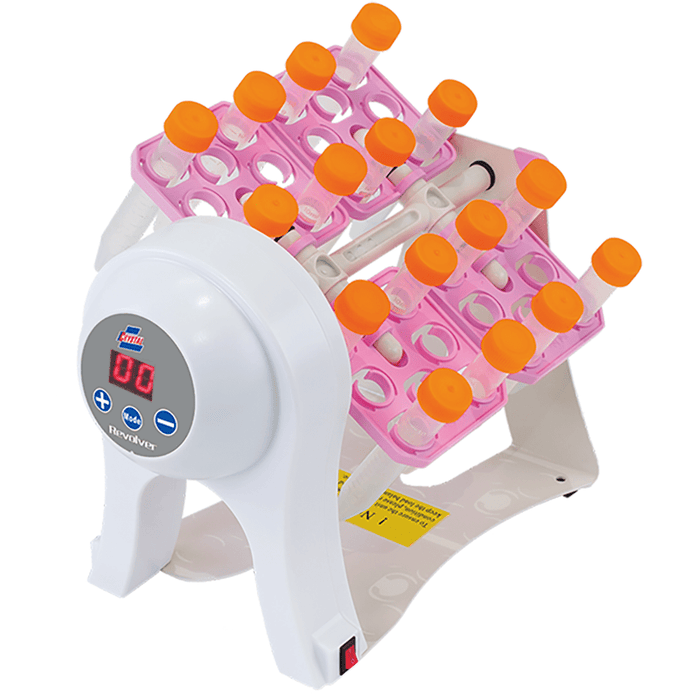

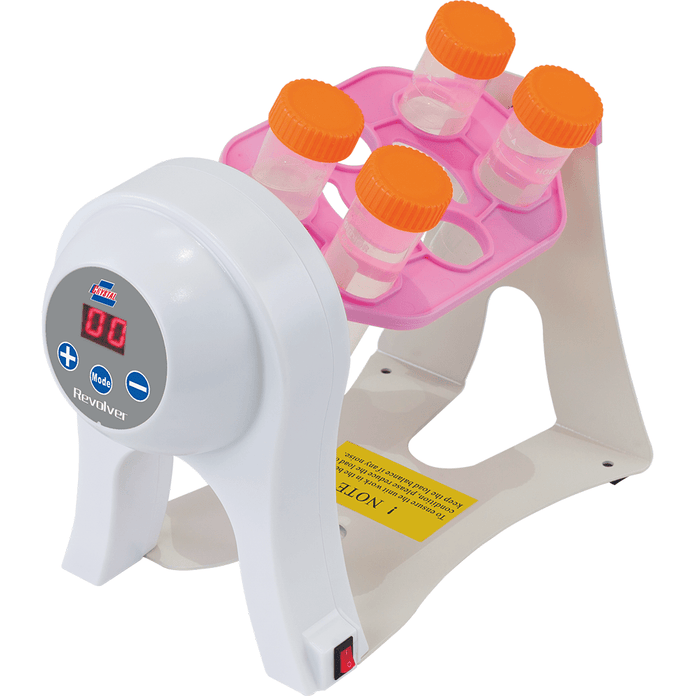

The Tube Revolver can be used in a variety of laboratory fields such as Molecular Biology, Biochemistry, Clinical, and Histochemistry. The rotisseries are interchangeable so that the unit works with a variety of tube sizes. The four rotisserie paddles can be mixed for a combination of different tubes. Each paddle direction can be independently adjusted from 0-90 degrees.
In addition to the speed adjustability and digital display, Model TR-02U can be programmed to operate in a back-and-forth oscillating mode, simulating the mixing process by hand. The oscillation occurs every 40 degrees in the rotation. The combination of rotation and oscillation mixes liquid more effectively.
- Ergonomically designed for simple operation and minimal space usage
- Includes 5 unique interchangeable rotisseries
- Rotisseries can be mixed to accommodate a variety of tube sizes simultaneously
- The maintenance-free motor is powerful and quiet
- TR-02UA can be programmed to oscillate at every 40° to simulate hand mixing with rotation and shaking
Specifications
Overview
-
Nominal Height:7.7" (19.56 cm)
-
Nominal Width:5.8" (14.73 cm)
-
Nominal Length:10.2" (25.91 cm)
Technical Data
-
Speed:10~40 RPM
-
Speed Accuracy:±1 RPM
-
Capacity:84 x 0.5/0.8ml, 60 x 1.5/2.0ml, 28 x 5/7ml, 28 x 10/15ml, 6x50ml Tubes
-
Display:LED
-
Accessories Included in Standard Packaging:2xTRA01 (10/15ml Paddle) + 2xTRA02 (5/7ml Paddle) + 2xTRA03 (1.5/2ml Paddle) + 2xTRA04 (0.5/0.8ml Paddle) + 1xTRA05 (50ml Tube Paddle)
-
Oscillation Mode:Oscillation mode oscillates rotisserie every 40°
-
Operating Environment - Ambient Temperature:4°C~60°C
-
Operating Environment - Ambient Relative Humidity:≤80%
-
Power Supply:AC110V±11V, 60Hz
-
Max. Power:10W
-
Net Weight:1 kg (2.2 lb)
-
Protection Level:IP21
-
Certifications:CCSAus, CE, RoHS, WEEE
