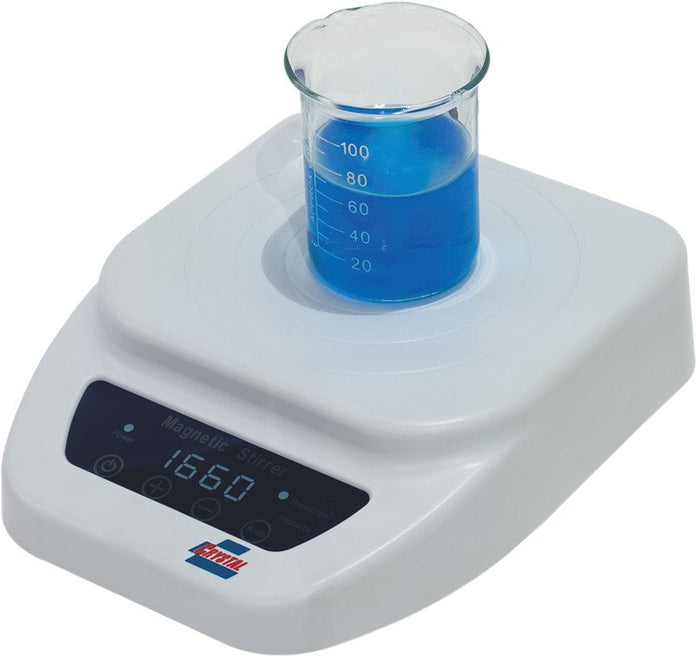

Crystal Industries - MS-01TUA - Touch-Pad Magnetic Stirrer

Crystal Industries - MS-01TUA - Touch-Pad Magnetic Stirrer

Crystal Industries - MS-01TUA - Touch-Pad Magnetic Stirrer

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Magnetic stirrers, touch pad, 100V-240V.

Features

An Essential Instrument for every Laboratory for Mixing Solutions.



  • Motorless drive stirring mechanism provides quiet and maintenance-free operation
  • Constructed of corrosion-resistant materials for easy clean-up and long operational life
  • Ergonomically designed for simple operation and minimal benchtop space usage
  • Speeds from 0~2000 RPM with capacities and power for any benchtop use
  • ABS Platforms provide extreme durability and chemical resistance
  • Timer with an automatic stop available on MS-01DUA (0~99hr 59m)
  • Five stirring power levels are available on MS-01UA and MS-01TUA for mixing high viscosity liquids



Watch the video

Specifications

Overview

  • Nominal Height:
    1.9" (4.83 cm)
  • Nominal Width:
    6.3" (16.0 cm)
  • Nominal Length:
    7.9" (20.07 cm)

Technical Data

  • Stirring Speed:
    80-2000 RPM
  • Speed Resolution:
    10 RPM
  • Max Stirrer Bar Length:
    ≤50 mm (1.97 in)
  • Platform Size:
    140 x 140 mm (5.5 x 5.5 inch)
  • Capacity:
    1 x 2,000ml Beaker or Flask
  • Max Load:
    5 kg (11 lb)
  • Platform Material:
    ABS plastic
  • Display:
    Touch-Pad LCD
  • Stirring Power Levels:
    1-5
  • Accessory Included in Standard Package:
    MSA04 Stirrer Bar Ø12x30 mm (Ø0.47 x 1.18 inch)
  • Operating Environment - Ambient Temperature:
    5℃~40℃
  • Operating Environment - Ambient Relative Humidity:
    ≤80%
  • Power Supply:
    AC 110V±11V, 60Hz
  • Max Power Consumption:
    24W
  • Net Weight:
    1 kg (2.2 lb)
  • IP Protection Rating:
    IP24
  • Certifications:
    CE, RoHS, WEEE
