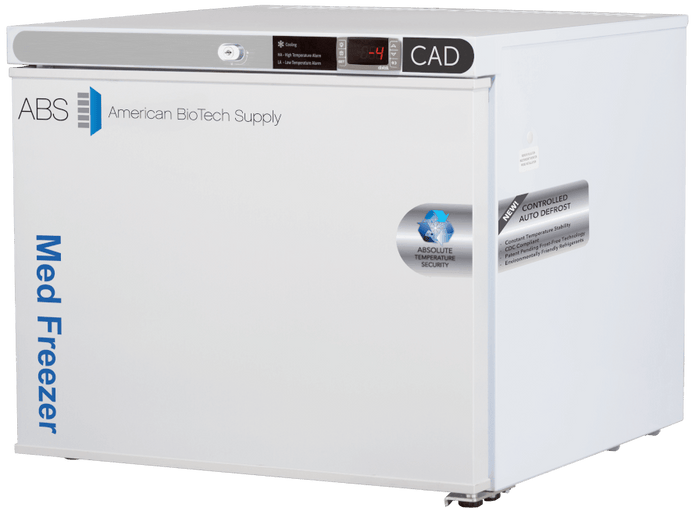

American Biotech Supply - PH-ABT-HC-UCFS-0120A-CAD - 1 Cu. Ft. Pharmacy Countertop Controlled Auto Defrost Freezer Freestanding

Features
Provides the convenience of an auto-defrost design while still ensuring that vaccines remain at consistent and stable temperatures below 5°F (-15°C).
Details
- 2 adjustable shelves
- Vaccine storage power cord warning label
- Keyed door lock
- Magnetic door gasket for positive seal
- Leveling legs
- HFC-free refrigerant (R600a), foam insulation and packaging
- Pharmacy refrigerator/freezer toolkit and temperature logs
- Two year parts and labor warranty, plus an additional three year compressor parts only warranty
Temp Controller
- Microprocessor temperature controller
- Digital temperature display with sample simulated probe
- Audible and visual high and low temperature alarms
- Remote alarm contacts
- Operating temperature range: 5°F to -13°F (-15°C to -25°C)
- Auto Defrost Cycle Every 6 hours (at Set Point -11°F / -24°C)
- Max air temp in empty freezer: 5°F (-15°C)
- Max air temp in loaded freezer: 3°F (-16°C)
- Max sample temp in empty freezer:-4°F (-20°C)
Specifications
Overview
-
Nominal Height:20.38" (51.77 cm)
-
Nominal Width:23.75" (60.33 cm)
-
Nominal Length:24" (60.96 cm)
-
Internal Height:12.38" (31.45 cm)
-
Internal Width:17.75" (45.09 cm)
-
Internal Length:7.5" (19.05 cm)
-
Capacity:1
Technical Data
-
Defrost:Controlled Auto
-
Door:1 Solid
-
Int Door:0
-
Shelves:2 Adj
-
Refrigerant:R600a
-
H.P.:0.125
-
Amps:1
-
Weight:80 lbs.
Drawings
-
PH-ABT-HC-UCFS-0120A-CAD Ext CutsheetVisit Link
-
PH-ABT-HC-UCFS-0120A-CAD Int CutsheetVisit Link
