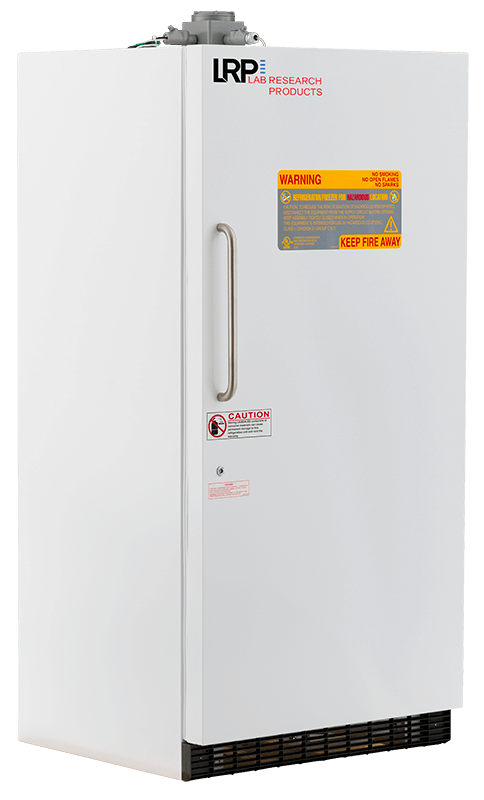

Lab Research Products - LRP-ERB-30 - 30 Cu. Ft. General Purpose Hazardous Location Refrigerator
Features
The General Purpose hazardous location Refrigerators meet NFPA and OSHA guidelines for Hazardous Location, Class 1, Division II, Groups A,B,C , D guidelines. (Units are not intended for use in general clinical or research laboratories.).
All spark generating electrical components and connections (compressor, thermostat) are isolated and sealed in vapor-proof enclosures. Electrical wiring is hardwired for additional safety measures.
Power cord is not included. Final power connections at site must be hardwired to meet local codes.
Details
- One solid swing door, right hinged, not reversible
- Five adjustable shelves
- Keyed door lock
- Magnetic door gasket for positive seal
- Stainless steel door handle
- Leveling legs
- White textured cabinet and door
- High density urethane foam cabinet and door insulation
- CFC-free refrigerant (R404a), foam insulation and packaging
Temp Controller
- Mechanical thermostat sealed in UL listed explosion proof box
- Adjustable operating temperature range: 1°C to 10°C
Specifications
Overview
-
Nominal Height:77.5" (196.85 cm)
-
Nominal Width:35.75" (90.81 cm)
-
Nominal Length:35.5" (90.17 cm)
-
Capacity:30
Technical Data
-
Defrost:Cycle
-
Door:1 Solid
-
Int Door:0
-
Shelves:5 Adj
-
Refrigerant:R290
-
H.P.:1/3
-
Amps:6
-
Weight:333 lbs.
Drawings
-
LRP-ERB-30 Ext Cut SheetVisit Link
-
LRP-ERCB-30 Int Cut SheetVisit Link
Useful Links
-
LRP-ERB-30 Spec SheetVisit Link
-
Hazardous Locations ManualVisit Link
