Lab Research Products - LRP-HC-RFC9G - 9 Cu. Ft. Plus Series Refrigerator & Freezer Combination Glass Door Refrigerator

Lab Research Products - LRP-HC-RFC9G - 9 Cu. Ft. Plus Series Refrigerator & Freezer Combination Glass Door Refrigerator
Lab Research Products - LRP-HC-RFC9G - 9 Cu. Ft. Plus Series Refrigerator & Freezer Combination Glass Door Refrigerator
Lab Research Products - LRP-HC-RFC9G - 9 Cu. Ft. Plus Series Refrigerator & Freezer Combination Glass Door Refrigerator

Lab Research Products - LRP-HC-RFC9G - 9 Cu. Ft. Plus Series Refrigerator & Freezer Combination Glass Door Refrigerator

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The Plus Series Dual Temp Combination Refrigerator/Freezers feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings refrigerators only.

Features

The Plus Series Dual Temp Combination Refrigerator/Freezers feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings refrigerators only.



Please note this unit requires 2 outlets.



The RFC-9/9G, RFC-9SS, FRFC10, and RFC-16A models are designed with a "front-breathing" ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.



Lab Research Products is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a.



Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.



Details



  • 9 Cu. Ft. Capacity (4.6 Ref./4.2 Freezer)
  • 2 adjustable/1 fixed shelves refrigerator with guard rail on back to prevent product from being pushed against back wall/2 fixed shelves freezer
  • Keyed door locks
  • Magnetic door gasket for positive seal
  • Recessed door handle, freezer; heavy duty door handle, refrigerator
  • Leveling legs
  • Stacking kit
  • LED interior light, Refrigerator
  • *Please note this unit requires 2 outlets



Temp Controller

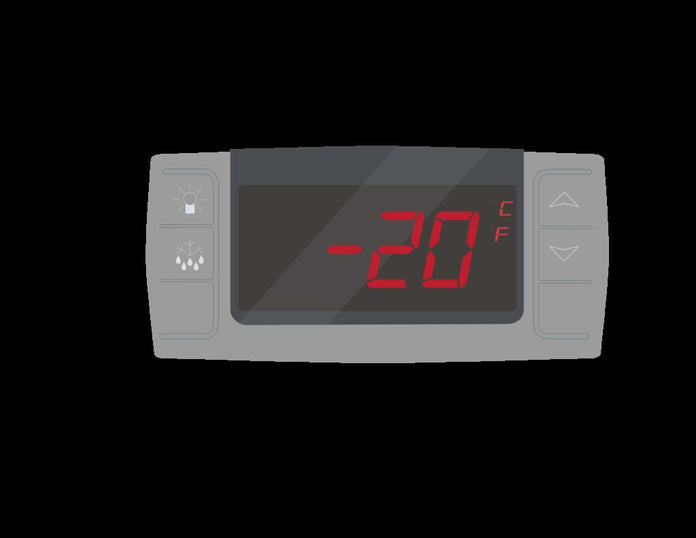

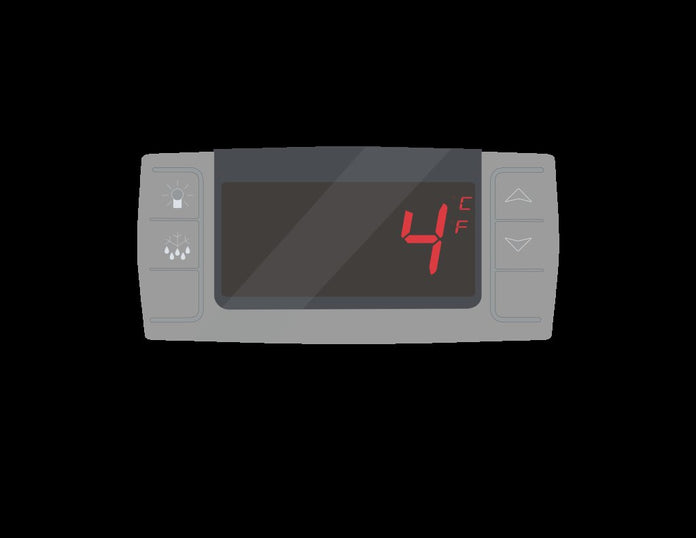

  • Microprocessor temperature controller, refrigerator and freezer
  • Digital temperature display, refrigerator and freezer
  • Adjustable operating temperature range: Refrigerator: 1°C to 10°C; Freezer: -15°C to -25°C
  • Audible and visual high and low temperature alarms, refrigerator and freezer
  • 2 probes; 1 in air and 1 in sample bottle, in both Refrigerator and Freezer
  • Remote alarm contacts, refrigerator and freezer

Specifications

Overview

  • Nominal Height:
    66.75" (169.55 cm)
  • Nominal Width:
    23.75" (60.33 cm)
  • Nominal Length:
    25.5" (64.77 cm)
  • Capacity:
    9

Technical Data - Refrigerator

  • Cu. Ft:
    4.6
  • Defrost:
    Cycle
  • Door:
    1 Glass (Reversible)
  • Int Door:
    0
  • Shelves:
    2 Adj/1 Fixed
  • Interior Dim. W:
    19.25"
  • Interior Dim. D:
    17.25"
  • Interior Dim. H:
    24.5"
  • Refrigerant:
    R600a
  • H.P.:
    1/8
  • Amps:
    1.74
  • Weight:
    200 lbs.

Technical Data - Freezer

  • Cu. Ft:
    4.2
  • Defrost:
    Manual
  • Door:
    1 Solid (Reversible)
  • Int Door:
    0
  • Shelves:
    2 Fixed
  • Interior Dim. W:
    19"
  • Interior Dim. D:
    17.25"
  • Interior Dim. H:
    24.5"
  • Refrigerant:
    R600a
  • H.P.:
    1/8
  • Amps:
    1.5
  • Weight:
    200 lbs.

Drawings
