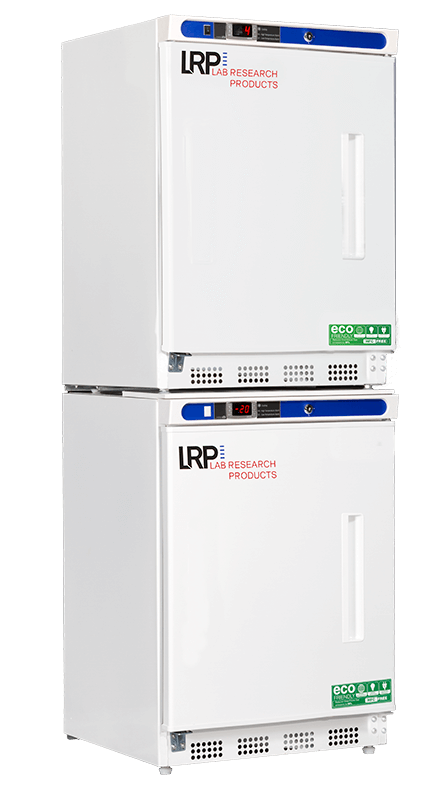

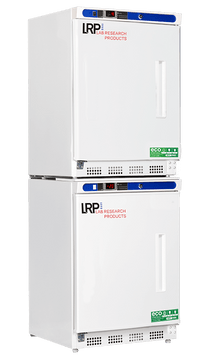

Lab Research Products - LRP-HC-RFC9-LH - 9 Cu. Ft. Plus Series Refrigerator & Freezer Combination, Left Hinged

Features
The Plus Series Dual Temp Combination Refrigerator/Freezers feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings refrigerators only.
Please note this unit requires 2 outlets.
The RFC-9/9G, RFC-9SS, FRFC10, and RFC-16A models are designed with a "front-breathing" ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.
Lab Research Products is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- 9 Cu. Ft. capacity (4.6 Ref./4.2 Freezer)
- Two exterior solid swing doors left hinged
- 2 adjustable/1 fixed shelves refrigerator/2 fixed shelves freezer with guard rails on back in Refrigerator to prevent product from being pushed against back wall
- Back wall evaporator cover, Refrigerator
- Forced draft circulation Refrigerator
- Keyed door locks
- Magnetic door gasket for positive seal
- Recessed door handle, freezer; heavy duty door handle, refrigerator
- Leveling legs
- Stacking kit
- LED interior lights
- HFC-free refrigerant (R600a), foam insulation and packaging
- Two year parts and labor warranty, plus an additional three year compressor parts warranty
Temp Controller

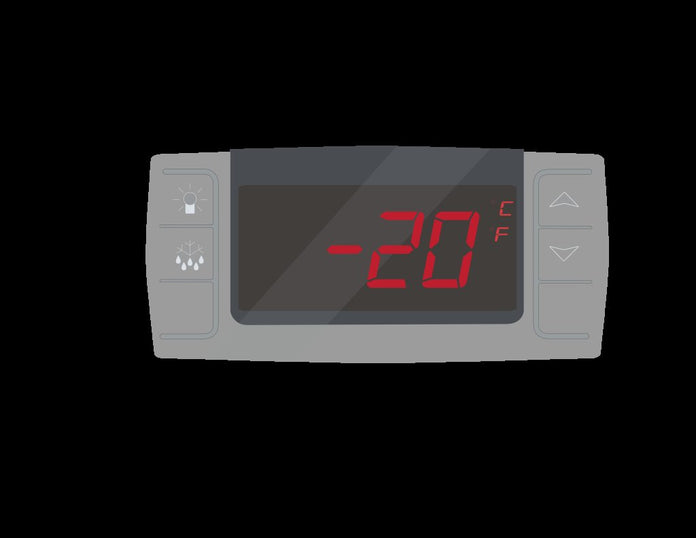

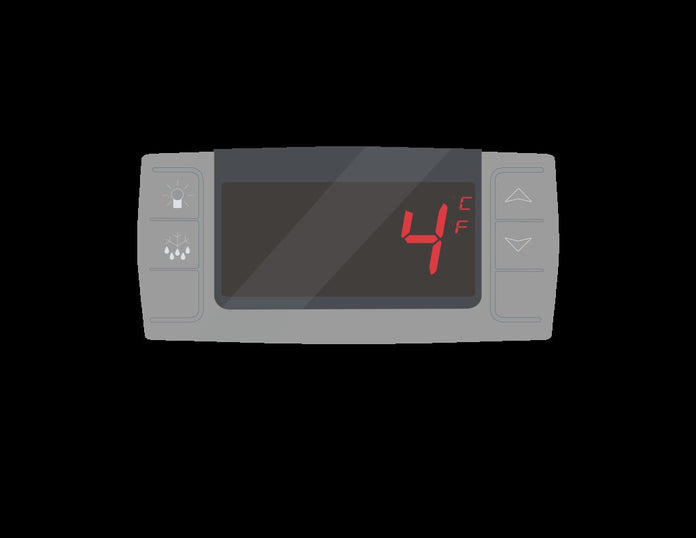

- Microprocessor temperature controller, refrigerator and freezer
- Digital temperature display, refrigerator and freezer
- Adjustable operating temperature range: Refrigerator: 1°C to 10°C; Freezer: -15°C to -25°C
- Audible and visual high and low temperature alarms, refrigerator and freezer
- 2 probes; 1 in air and 1 in sample bottle, in both Refrigerator and Freezer
- Remote alarm contacts, refrigerator and freezer
Specifications
Overview
-
Nominal Height:66.75" (169.55 cm)
-
Nominal Width:23.75" (60.33 cm)
-
Nominal Length:24.5" (62.23 cm)
-
Capacity:9
Technical Data - Refrigerator
-
Cu. Ft:4.6
-
Defrost:Cycle
-
Door:1 Solid LH (Reversible)
-
Int Door:0
-
Shelves:2 Adj/1 Fixed
-
Interior Dim. W:19.25"
-
Interior Dim. D:17.25"
-
Interior Dim. H:24.5"
-
Refrigerant:R600a
-
H.P.:1/8
-
Amps:1.74
-
Weight:200 lbs.
Technical Data - Freezer
-
Cu. Ft:4.2
-
Defrost:Manual
-
Door:1 Solid LH (Reversible)
-
Int Door:0
-
Shelves:2 Fixed
-
Interior Dim. W:19"
-
Interior Dim. D:17.25"
-
Interior Dim. H:24.5"
-
Refrigerant:R600a
-
H.P.:1/8
-
Amps:1.5
-
Weight:200 lbs.
Drawings
-
LRP-HC-RFC9-LH Ext Cut SheetVisit Link
-
LRP-HC-RFC9-LH Int Cut SheetVisit Link
Useful Links
-
LRP-HC-RFC9-LH Spec SheetVisit Link
