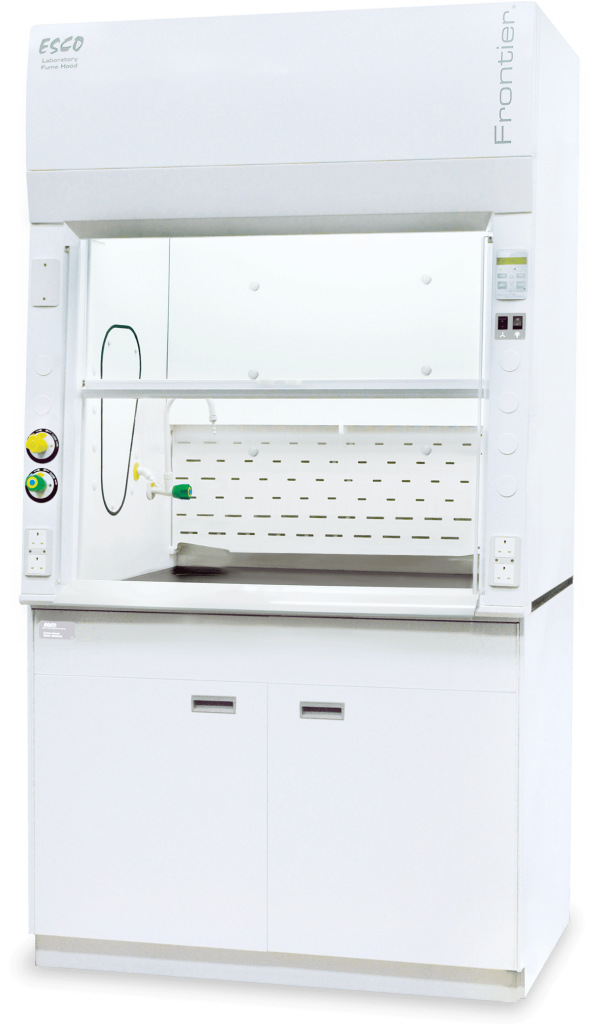

Esco Frontier® Acela Fume Hood, 6ft/1.8m Vertical Sash with Haysite Liner.

Features

Esco Frontier® Acela™ (EFA) a high-performance, low-flow, ducted fume hood designed with precisely tuned aerodynamics, outstanding user safety, design flexibility, energy-efficiency, and aesthetics. A conventional laboratory fume hood that lets you save while keeping you safe.



Each EFA Fume Hood comes standard with:



  • 1 x Water Enhanz™ Remote Controlled Fixture Plumbed to the Top
  • 1 x Gas Enhanz™ Remote Controlled Fixture Plumbed to the Top
  • 4 x Single Electrical Outlet with Splash Proof Cover



*This cabinet requires an external blower (sold separately)



Tri-Wall Construction



  • Triple layer for maximum robustness and durability.



High Sight Line



  • High sight line of 857 mm (33.7”) for enhanced visibility.



Sash Angled Front



  • 5° slope minimizes glares and reflections.
  • Allows users to work further into the hood without strain.



Hot Zone Baffles



  • The unique Hot Zone Baffle design draws most contaminants back in single pass displacement of the air.
  • Thermal heat relief is quickly achieved.



Worktop Options



  • Multiple worktop options allow more applications to be done.
  • Standard worktop is phenolic resin.
  • Options include: Epoxy resin, Ceramic, SS 304, SS 316.



Isocide™ Antimicrobial Powder Coating



  • Eliminates 99.9% of surface bacteria within 24 hours of exposure.

Specifications

Overview

  • Nominal Height:
    55.4" (140.72 cm)
  • Nominal Width:
    72" (182.88 cm)
  • Nominal Length:
    35.4" (89.92 cm)
  • Internal Height:
    48.4" (122.94 cm)
  • Internal Width:
    63.2" (160.53 cm)
  • Internal Length:
    26.6" (67.56 cm)

General Specifications

  • Nominal Size:
    1.8 meter (6’)
  • External Dimensions (W x D x H) - With Exhaust Collar:
    1830 x 900 x 1521 mm (72.0” x 35.4”x 59.9”)
  • External Dimensions (W x D x H) - With Fully-opened Sash:
    1830 x 900 x 1603 mm (72.0” x 35.4”x 63.1”)
  • Exhaust Outlet Diameter and Material:
    305 mm (12.0”), Fiberglass
  • Number of Exhaust Collar:
    1
  • LED Lighting System - Description:
    Pre-wired hood lighting with electronic ballast for energy efficiency and instant start
  • LED Lighting System - Lamp Intensity:
    886 lux (82.3 foot-candles)
  • Controller:
    Rocker Switches (default). Option to upgrade to SentinelTM XL Microprocessor Controller
  • Construction - Main Body:
    Electrogalvanized steel with Epoxy-polyester hybrid Isocide™ powder coating
  • Construction - Internal Liner (default):
    Esco Resinate™
  • Construction - Worktop (default):
    Phenolic Resin
  • Shipping Weight:
    360 Kg (794 lbs)
  • Shipping Dimension, Maximum (W x D x H):
    1950 x 950 x 1900 mm (76.8” x 37.4”x 74.8”)

Exhaust Volume/ Static Pressure Required

  • Face Velocity 0.3 m/s (60 fpm)-Sash Opening 457 mm (18.0”):
    872 cmh at 20 Pa (510 cfm at 0.08" WG)
  • Face Velocity 0.4 m/s (80 fpm)-Sash Opening 457 mm (18.0”):
    1163 cmh at 29 Pa (684 cfm at 0.12" WG)
  • Face Velocity 0.5 m/s (100 fpm)-Sash Opening 457 mm (18.0”):
    1453 cmh at 42 Pa (855 cfm at 0.17" WG)
  • Face Velocity 0.3 m/s (60 fpm)-Sash Opening Full:
    1450 cmh at 36 Pa (848 cfm at 0.14" WG)
  • Face Velocity 0.4 m/s (80 fpm)-Sash Opening Full:
    1933 cmh at 61 Pa (1138 cfm at 0.24" WG)
  • Face Velocity 0.5 m/s (100 fpm)-Sash Opening Full:
    2197 cmh at 95 Pa (1285 cfm at 0.38" WG)

Sash Specifications - Electrical 110-120 VAC, 50/60 Hz, 1ø

  • Sash Specifications - Sash Material:
    Laminated-Tempered and Framed Safety Glass
  • Sash Specifications - Sash Configuration:
    Vertical or Combination
  • Sash Specifications - Sloping:
    50° Sloped
  • Sash Specifications - Maximum Sash Opening:
    670 mm (26.4”)
  • Electrical - Cabinet Full Load Amps (FLA):
    32 A
  • Electrical - Cabinet Nominal Power:
    100 W (lighting only)
