SHEL LAB CO2 Incubators serve a wide range of bacterial and cell growth applications using innovative technology to ensure uniform temperature and humidity levels within small error margins.

Features

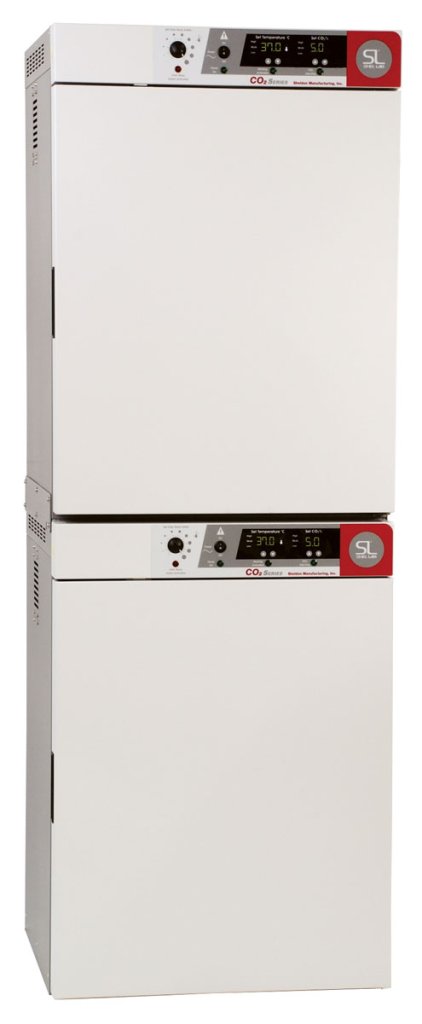

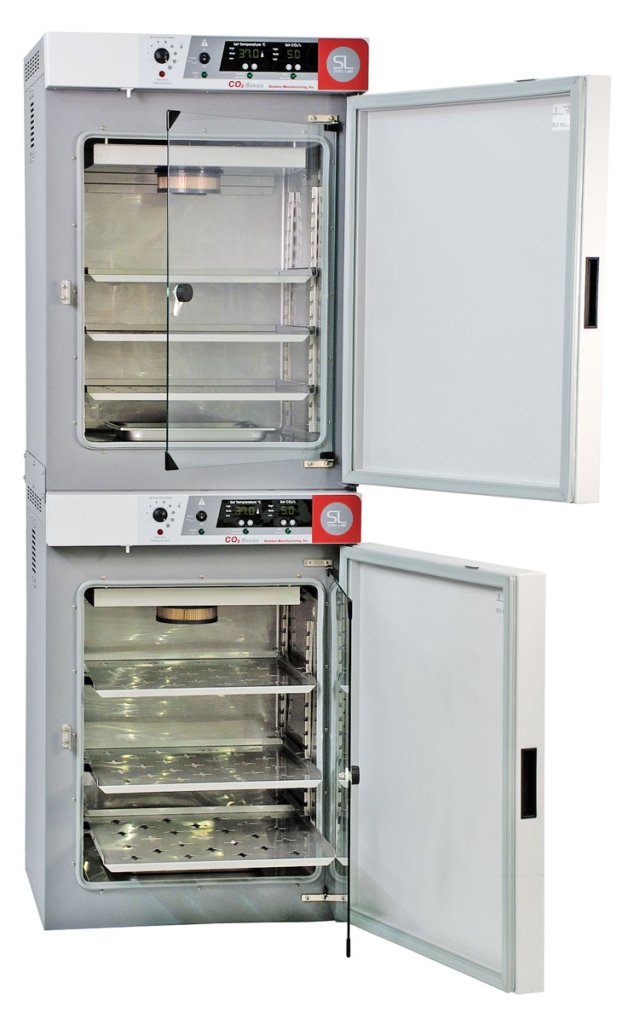

Model SCO10A is a stacked version of our SCO5A incubator and is ideal for sensitive tissue and cell culture applications. It provides the benefits of contamination control and uncompromising temperature uniformity for even the most demanding incubations.



Standard Design Features



  • Infrared (IR) CO2 Sensor is extremely quick to recover CO2 levels after door openings and ensures superior pH stability
  • Unique air jacket design provides excellent temperature uniformity of +/-0.25°C at 37°C
  • Humidity levels maintained through evaporation of up to 95%
  • Data logging capabilities



Designed to minimize contamination



  • Patented copper-caged HEPA filter
  • Heated door to ensure superior temperature uniformity and also reduce the potential for condensation to form on the inner glass door
  • Durable stainless steel chamber for easy cleaning
  • Exclusive heated copper CO2 inlet to prevent moisture from being introduced into the chamber
  • Copper shelving option
  • Autoclavable shelving system
  • Industry best warranty - 5 years parts and labor in the USA, 7 years on the IR sensor

Specifications

Overview

  • Nominal Height:
    75.6" (192.02 cm)
  • Nominal Width:
    27.5" (69.85 cm)
  • Nominal Length:
    28.5" (72.39 cm)
  • Internal Height:
    21.5" (54.61 cm)
  • Internal Width:
    20.5" (52.07 cm)
  • Internal Length:
    19.8" (50.29 cm)
  • Capacity:
    5

Technical Data

  • Shelf Dimensions (W x D):
    19.1 x 17.8 (485 mm x 251 mm)
  • Unit Weight:
    400 lbs (182 kg)
  • Interior Metal:
    301 SST
  • Exterior Metal:
    Painted Cold Roll Steel
  • Operating Temperature Range:
    Amb +5°C - 60°C
  • Temperature Uniformity - Midrange:
    0.25°C
  • Temperature Stability - Midrange:
    0.1°C
  • Controller Type:
    Digital
  • Display Resolution:
    0.1°C
  • Power Voltage, Frequency and Current:
    110-120 VAC, 50/60 Hz, 12.0 Amps
  • Safety Certifications:
    UL 61010-1, EN 61010-1, CSA 61010-1, CE
  • Interior Construction:
    300 series stainless steel
  • Exterior Construction:
    20 gauge steel, powder coated
  • Shelves (See Accessories):
    6 standard, 16 total
  • Maximum Weight Per Shelf:
    35 lb/15.8kg per unit
  • Permitted Total Load:
    105 lb/47.6kg per unit

Selection

  • Voltage:
    110V-120V
  • Full Load Amps:
    12.0
  • Nominal Power (watts @37°C):
    210
  • Recommended Breaker, Amps:
    15
  • Power Cord Supplied:
    NEMA5-15P
  • CO2 Range:
    1-20%
  • Recovery CO2 at 5%:
    < 5 min.
  • Sensor Type:
    Infrared
  • Temperature Uniformity At 37°C:
    ± 0.25°C
  • Temperature Recovery 37°C:
    Recovery to 37°C After 30 sec, Door Opening 2.0 min.
  • Temperature Range Ambient to 5° to 60°C:
    Yes

Accessories

  • Caster Platform:
    90000574
  • Copper Shelf Package (Includes 3 Copper Shelves, 6 Copper Shelf Slides):
    9750582
  • Extra Shelf, Copper, Max Weight 35 lb (15.8 kg):
    5820504
  • Extra Slide, Copper, 2 Required Per Shelf:
    5820505
  • Extra Shelf, Stainless Steel, Max. Weight 35 lb (15.8 kg):
    5121525
  • Extra Shelf, Reinforced, Max. Weight 50 lb (22.7 kg):
    912-975-0004
  • Extra Slide, 2 Required Per Shelf:
    5121526
