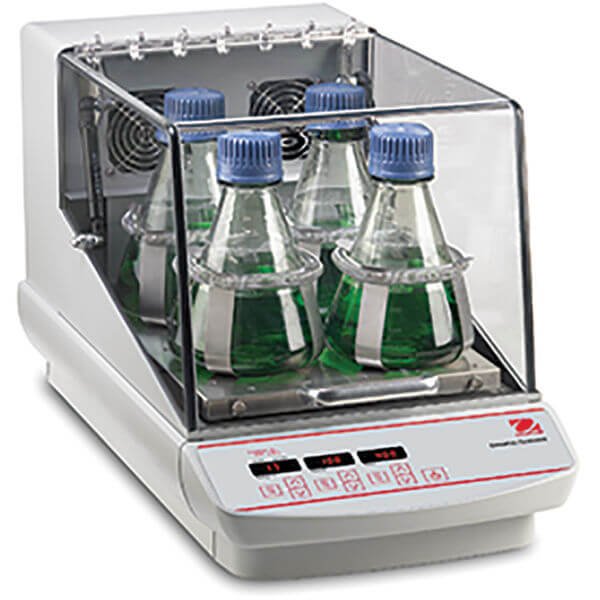

Ohaus - 30573769 - Incubating Heavy Duty Orbital Shaker ISHD16HDG US
Features
Incubating Heavy Duty Orbital Shakers offer exceptional temperature uniformity and are designed for a variety of shaking and incubating applications.
Applications
Cell Cultures, Solubility Studies, Bacterial Suspensions, Extraction Procedures
Display
Independent LED displays for temperature, speed and time
Communication
RS232
Construction
Aluminum and Cycoloy
Design Features
Temperature calibration feature, overload protection, overshoot protection (temperature), load sensor, PID temperature controller, Triple Eccentric Drive system
Specifications
Overview
-
Nominal Height:16" (40.64 cm)
-
Nominal Width:14" (35.56 cm)
-
Nominal Length:25.5" (64.77 cm)
-
Internal Height:9.5" (24.13 cm)
-
Internal Width:12" (30.48 cm)
-
Internal Length:13.4" (34.04 cm)
Technical Data
-
Motion:Orbital, 19 mm
-
Capacity:35 lb (16 kg) at 75 rpm, 5 lb (2.3 kg) at 500 rpm
-
Temp. Range:Ambient +5°C to 65°C
-
Speed Range:15 rpm to 500 rpm
-
Tray Size:13 in x 11 in (330 mm x 279 mm) (LxW)
-
Control:Digital
-
Calibration:Temperature calibration
-
Communication:RS232
-
Drive System:Triple Eccentric, Brushless DC Motor
-
Net Weight:79.11 lb (35.9 kg)
-
Power:120V, 5A, 50/60Hz
-
Power Consumption:450 W
-
Safety Certification:TUV
-
Speed Accuracy:Above 100 rpm ±1%, Below 100 rpm ±1 rpm
-
Timer:1 second - 160 hours
-
Tray Construction:Aluminum
-
Uniformity:±0.5°C at 37°C
-
Working Environment:59°F - 90°F, 80% RH, non-condensing (15°C - 32°C, 80% RH, non-condensing)
