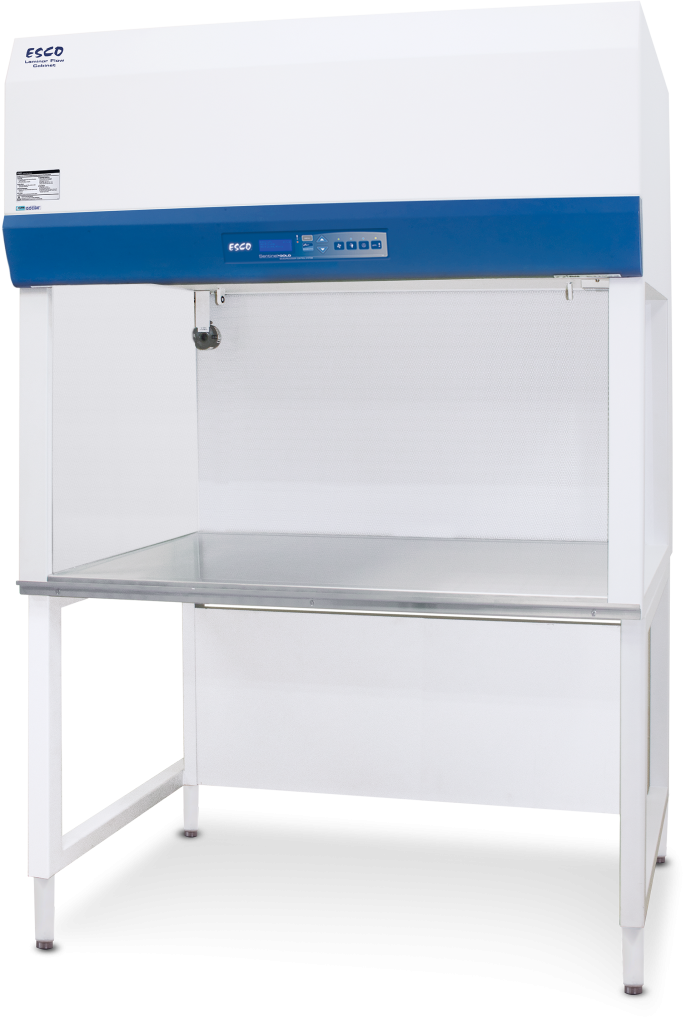

ESCO - LHS-8CG-F9 - Airstream Gen 3 Horizontal Laminar Flow Cabinet

Features
Scientific researches require complicated laboratory procedures and an expensive set of equipment. These laboratory equipment normally run for an average of 8 hours a day, which leads to substantial consumption of your power and expensive electricity bill. But worry no more, we have a solution for you! Airstream® Gen 3 Horizontal Laminar Flow Cabinets use energy-efficient technology. As a manufacturer of premium laminar flow cabinets, Esco does not settle until the best is achieved. To deliver the finest experience possible, every feature of a cabinet is carefully considered and fulfilled.
Esco's laminar air flow cabinet is a product of robust engineering combined with strategic ergonomic design. It provides long-term reliability and ultimate user comfort making it ideal for non-hazardous applications that need a sterile environment.
Applications
- Plant Tissue Culture
- Media Plate Preparation
- Electronics Inspection
- Medical Device Assembly
High-Quality Construction
- Stainless steel worktop
- Spill-retaining design will ensure containment of accidental liquid spills
Quiet Operation
- Comfortable low noise at 52 dBA
- Reduce fatigue and improve work concentration
ULPA Filter
- 10x Filtration efficiency of HEPA filter Creates ISO Class 3 work zone instead of industry-standard ISO Class 5
Energy Efficient
- Powered by latest generation DC ECM motor, that is more efficient than legacy ECM and VFD motors
- 70% Energy savings compared to AC motor
- Stable airflow, despite building voltage fluctuations & filter loading
Isocide™ Antimicrobial Powder Coating
- Eliminates 99.9% of surface bacteria within 24 hours of exposure
Specifications
Overview
-
Nominal Height:56" (142.24 cm)
-
Nominal Width:99.2" (251.97 cm)
-
Nominal Length:30.8" (78.23 cm)
-
Internal Height:34.5" (87.63 cm)
-
Internal Width:93.8" (238.25 cm)
-
Internal Length:24.4" (61.98 cm)
General Data
-
Nominal Size:8 ft (2.4 m)
-
Sound Emmision Per IEST-RPCC002.2:62.3 dBA
-
LED Lamp Intensity at Zero Ambient:1136 Lux (106 fc)
-
Cabinet Full Load Amps (FLA):12 A and 6 A
-
Cabinet Nominal Power (W):394
-
Heat Rejected, BTU Per Hour:1344
-
Shipping Weight:397 Kg (875 lbs)
-
Shipping Dimensions, Maximum (W x D x H):2720 x 950 x 1590 mm (107.0" x 37.4" x 62.5")
-
Shipping Volume, Maximum:4.1 m³ (144.8 ft³)
-
Average Airflow Velocity:0.45 m/s (90 fpm) at initial Set Point
-
ULPA Filter Typical Efficiency:> 99.999% at particle size between 0.1 to 0.3 μm
-
Electrical - Power Rating 9:110-130 VAC, 50/60 Hz, 1 phase
Cabinet Construction
-
Main Body:1.2 mm (0.05") 18 gauge electro-galvanized steel with white oven-baked epoxy-polyester powder-coated finish
-
Work Zone:1.2 mm (0.05") 18-gauge stainless steel, grade 304, with 4B finish
-
Side Walls:1.2 mm (0.05") 18 gauge stainless steel, grade 304, with 4B finish
