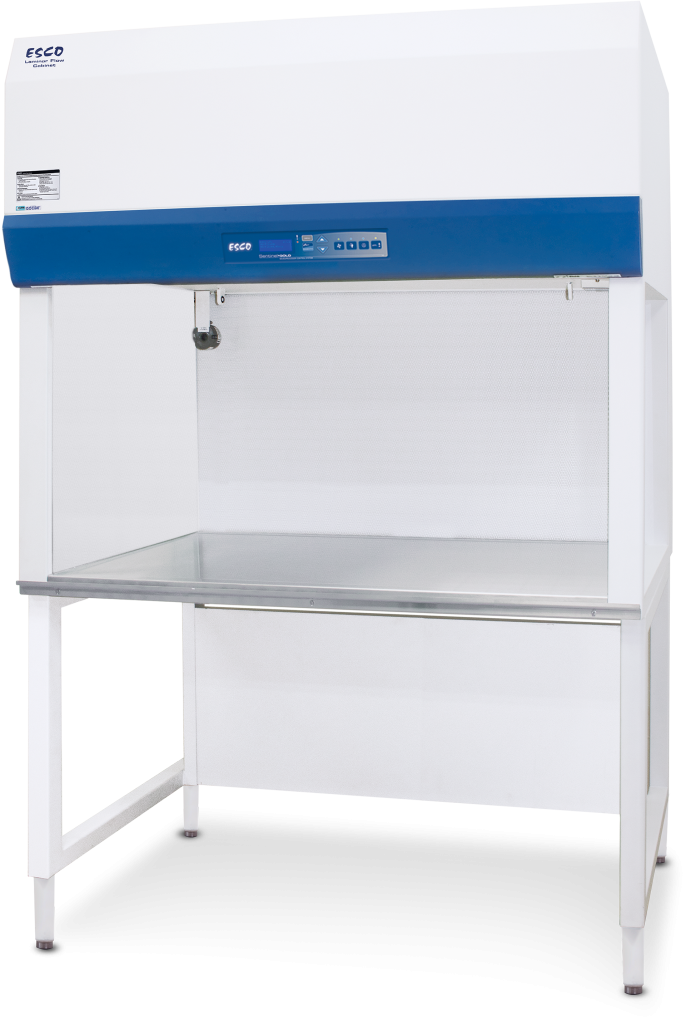

ESCO - LHS-5BG-F9 - Airstream Gen 3 Horizontal Laminar Flow Cabinet

ESCO - LHS-5BG-F9 - Airstream Gen 3 Horizontal Laminar Flow Cabinet

ESCO - LHS-5BG-F9 - Airstream Gen 3 Horizontal Laminar Flow Cabinet

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Horizontal laminar flow cabinet, Gen 3, stainless steel sides (5ft/1.5m W, 2.5ft/0.8m H), 115 VAC, 50/60 Hz.

Features

Scientific researches require complicated laboratory procedures and an expensive set of equipment. These laboratory equipment normally run for an average of 8 hours a day, which leads to substantial consumption of your power and expensive electricity bill. But worry no more, we have a solution for you! Airstream® Gen 3 Horizontal Laminar Flow Cabinets use energy-efficient technology. As a manufacturer of premium laminar flow cabinets, Esco does not settle until the best is achieved. To deliver the finest experience possible, every feature of a cabinet is carefully considered and fulfilled.



Esco's laminar air flow cabinet is a product of robust engineering combined with strategic ergonomic design. It provides long-term reliability and ultimate user comfort making it ideal for non-hazardous applications that need a sterile environment.



Applications



  • Plant Tissue Culture
  • Media Plate Preparation
  • Electronics Inspection
  • Medical Device Assembly



High-Quality Construction



  • Stainless steel worktop
  • Spill-retaining design will ensure containment of accidental liquid spills



Quiet Operation



  • Comfortable low noise at 52 dBA
  • Reduce fatigue and improve work concentration



ULPA Filter



  • 10x Filtration efficiency of HEPA filter Creates ISO Class 3 work zone instead of industry-standard ISO Class 5



Energy Efficient



  • Powered by latest generation DC ECM motor, that is more efficient than legacy ECM and VFD motors
  • 70% Energy savings compared to AC motor
  • Stable airflow, despite building voltage fluctuations & filter loading



Isocide™ Antimicrobial Powder Coating



  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Specifications

Overview

  • Nominal Height:
    50" (127.0 cm)
  • Nominal Width:
    64.8" (164.59 cm)
  • Nominal Length:
    31" (78.74 cm)
  • Internal Height:
    28.5" (72.39 cm)
  • Internal Width:
    59.4" (150.88 cm)
  • Internal Length:
    24.4" (61.98 cm)

General Specifications

  • Nominal Size:
    1.5 meter (5')
  • Internal Work Area, Space:
    0.9 m² (9.6 ft²)
  • Average Airflow Velocity:
    0.45 m/s (90 fpm) at initial setpoint
  • Air Volume:
    1771 m3/hr (1042 cfm)
  • ULPA Filter Typical Efficiency:
    > 99.999% at particle size between 0.1 to 0.3 μm
  • Sound Emission Per IEST-RP-CC002.2:
    58.0 dBA
  • LED Lamp Intensity at Zero Ambient:
    1204 Lux (112 foot candles)
  • Net Weight:
    180 Kg (397 lbs)
  • Shipping Weight:
    237 Kg (522 lbs)
  • Shipping Dimensions, Maximum (W x D x H):
    1720 x 900 x 1590 mm (68" x 35" x 62")
  • Shipping Volume, Maximum:
    2.5 m³ (88.2 ft³)

Cabinet Construction

  • Main Body:
    1.2 mm (0.05") 18-gauge electro-galvanized steel with white oven-baked epoxy-polyster powder-coated finish
  • Work Zone:
    1.2 mm (0.05") 18-gauge stainless steel, grade 304, with 4B finish
  • Side Walls:
    1.2 mm (0.05") 18 gauge stainless steel, grade 304, with 4B finish

Electrical Power Rating 9 (110-130 VAC, 50/60 Hz, 1 phase)

  • Cabinet Full Load Amps (FLA):
    11.4 A
  • Optional Outlets (FLA):
    5 A
  • Cabinet Nominal Power (W):
    260
  • Heat Rejected, BTU Per Hour:
    887

Downloads

  • Esco Laminar Flow Cabinet Brochure
    Download
  • Airstream® Laminar Flow Cabinet Combined Catalog
    Download
  • Airstream® Horizontal LFC for Plant Tissue Culture Brochure
    Download
  • Esco Laminar Flow Cabinet Tri-fold Brochure
    Download
