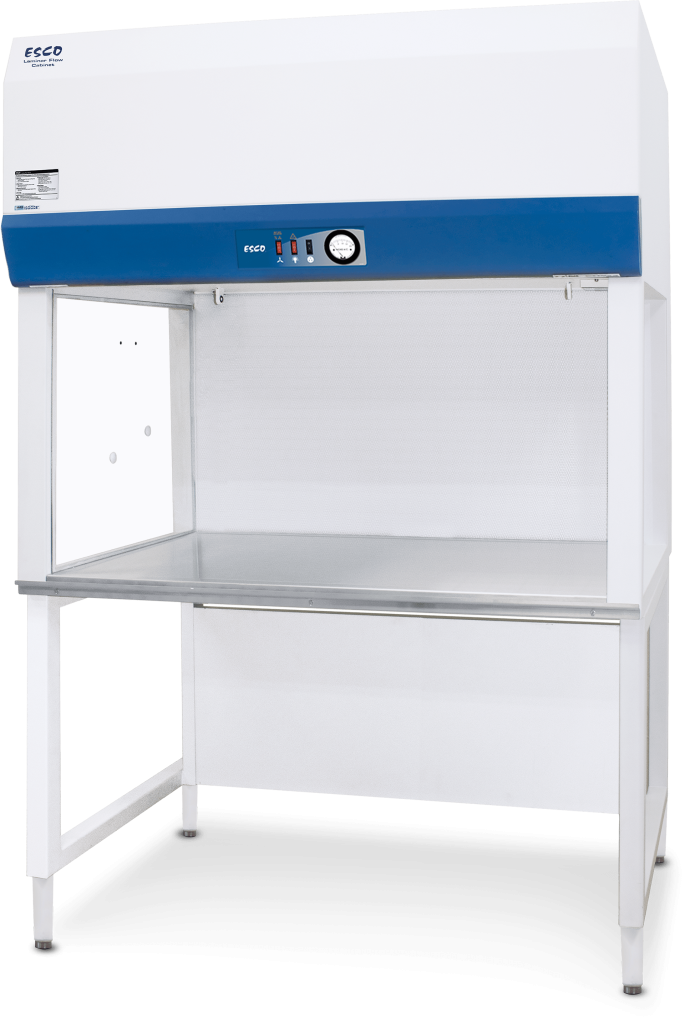

ESCO - LHG-6BS-F9 - Airstream® Gen 3 Horizontal Laminar Flow Cabinet with Simple Switch

ESCO - LHG-6BS-F9 - Airstream® Gen 3 Horizontal Laminar Flow Cabinet with Simple Switch

ESCO - LHG-6BS-F9 - Airstream® Gen 3 Horizontal Laminar Flow Cabinet with Simple Switch

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
AIRSTREAM Horizontal Laminar Flow Clean Benches, Glass Side Walls, Energy Efficient ECM blower, 115VAC, 60 Hz, cUL Listed, Simple Switches & Minihelic Gauge.

Features

Esco Airstream® Horizontal Flow Cabinet blends in the latest laminar flow technology and innovation to provide protection for your samples and processes. This equipment is powered by the latest generation DC ECM motor and offers an ISO Class 3 work zone. It also features an easy-to-use simple switch for light and blower operation and a manually adjustable UV timer.

Only available in USA



High-Quality Construction



  • Stainless steel worktop
  • Spill-retaining design will ensure containment of accidental liquid spills



Quiet Operation



  • Comfortable low noise at 52 dBA
  • Reduce fatigue and improve work concentration



ULPA Filter



  • 10x Filtration efficiency of HEPA filter
  • Creates ISO Class 3 work zone instead of industry-standard ISO Class 5



Rocker Switches



  • Easy-to-use switches for cabinet’s operation
  • Displays filter loading status
  • Manually adjustable UV timer



Isocide™ Antimicrobial Powder Coating



  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Specifications

Overview

  • Nominal Height:
    50" (127.0 cm)
  • Nominal Width:
    76.8" (195.07 cm)
  • Nominal Length:
    31" (78.74 cm)
  • Internal Height:
    28.5" (72.39 cm)
  • Internal Width:
    71.4" (181.36 cm)
  • Internal Length:
    24.4" (61.98 cm)

General Specifications

  • Nominal Size:
    1.8 meter (6')
  • Internal Work Area - Space:
    1.0 m² (10.8 ft²)
  • Average Airflow Velocity:
    90 fpm at initial setpoint
  • Air Volume:
    2129 m3/hr (1253 cfm)
  • ULPA Filter Typical Efficiency:
    > 99.999% at particle size between 0.1 to 0.3 μm
  • Sound Emission per IEST-RP-CC002.2:
    59.6 dBA
  • LED Lamp Intensity at Zero Ambient:
    1494 Lux (139 foot candles)
  • Net Weight:
    228 Kg (503 lbs)
  • Shipping Weight:
    293 Kg (646 lbs)
  • Shipping Dimensions - Maximum (W x D x H):
    2200 x 900 x 1590 mm (87" x 35" x 62")
  • Shipping Volume - Maximum:
    3.3 m³ (118.6 ft³)

Cabinet Construction

  • Main Body:
    1.2 mm (0.05") 18-gauge electro-galvanized steel with white oven-baked epoxy-polyster powder-coated finish.
  • Work Zone:
    1.2 mm (0.05") 18-gauge stainless steel, grade 304, with 4B finish.
  • LHG Side Walls:
    UV-absorbing tempered glass, 5 mm (0.2"), colorless and transparent

Electrical Power Rating 110-130 VAC, 50 / 60Hz, 1 phase

  • Cabinet Full Load Amps (FLA):
    12.5 A and 6.5 A (2 Power Inlet)
  • Optional Outlets (FLA):
    6 A
  • Cabinet Nominal Power (W):
    343
  • Heat Rejected - BTU per Hour:
    1170

Downloads

  • Esco Laminar Flow Cabinet Brochure
    Download
  • Airstream® Laminar Flow Cabinet Combined Catalog
    Download
