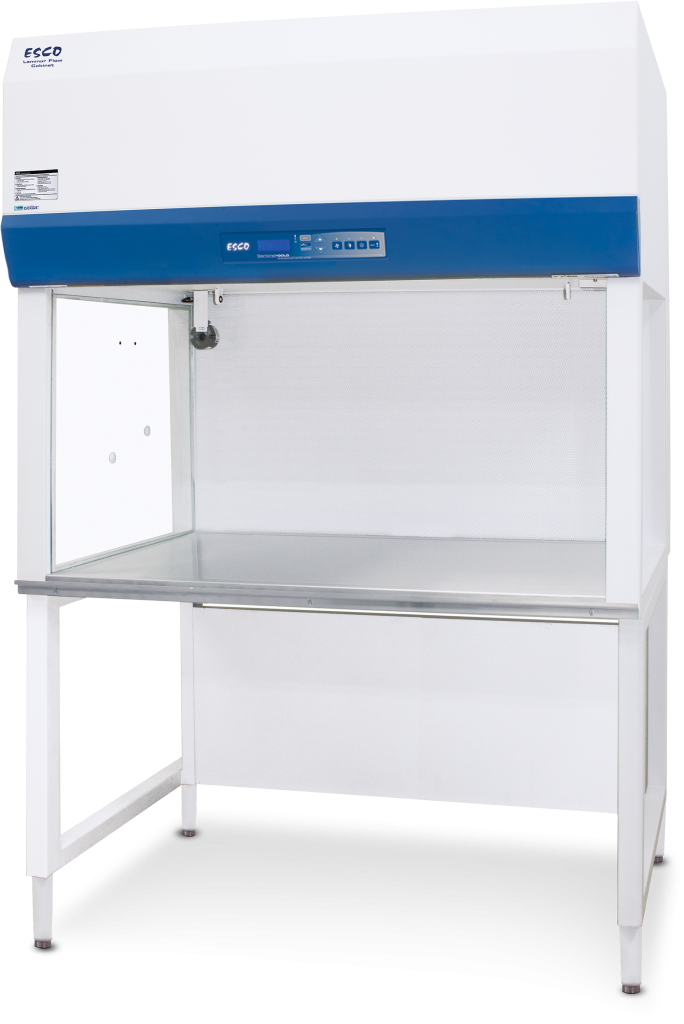

ESCO - LHG-6BG-F9 - Airstream® Gen 3 Horizontal Laminar Flow Cabinet

ESCO - LHG-6BG-F9 - Airstream® Gen 3 Horizontal Laminar Flow Cabinet

ESCO - LHG-6BG-F9 - Airstream® Gen 3 Horizontal Laminar Flow Cabinet

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
AIRSTREAM Horizontal Laminar Flow Clean Benches, Glass Side Walls, Energy Efficient ECM blower, 115VAC, 60 Hz, cUL Listed, Microprocessor and Airflow Sensor.

Features

Scientific researches require complicated laboratory procedures and an expensive set of equipment. These laboratory equipment normally run for an average of 8 hours a day, which leads to substantial consumption of your power and expensive electricity bill. But worry no more, we have a solution for you! Airstream® Gen 3 Horizontal Laminar Flow Cabinets use energy-efficient technology. As a manufacturer of premium laminar flow cabinets, Esco does not settle until the best is achieved. To deliver the finest experience possible, every feature of a cabinet is carefully considered and fulfilled.



Esco's laminar air flow cabinet is a product of robust engineering combined with strategic ergonomic design. It provides long-term reliability and ultimate user comfort making it ideal for non-hazardous applications that need a sterile environment.



Applications



  • Plant Tissue Culture
  • Media Plate Preparation
  • Electronics Inspection
  • Medical Device Assembly



High-Quality Construction



  • Stainless steel worktop
  • Spill-retaining design will ensure containment of accidental liquid spills



Quiet Operation



  • Comfortable low noise at 52 dBA
  • Reduce fatigue and improve work concentration



ULPA Filter



  • 10x Filtration efficiency of HEPA filter
  • Creates ISO Class 3 work zone instead of industry-standard ISO Class 5



Energy Efficient



  • Powered by latest generation DC ECM motor, that is more efficient than legacy ECM and VFD motors
  • 70% Energy savings compared to AC motor
  • Stable airflow, despite building voltage fluctuations & filter loading



Isocide™ Antimicrobial Powder Coating



  • Eliminates 99.9% of surface bacteria within 24 hours of exposure



Watch the video

Watch the video

Watch the video

Watch the video

Specifications

Overview

  • Nominal Height:
    50" (127.0 cm)
  • Nominal Width:
    76.8" (195.07 cm)
  • Nominal Length:
    31" (78.74 cm)
  • Internal Height:
    28.5" (72.39 cm)
  • Internal Width:
    71.4" (181.36 cm)
  • Internal Length:
    24.8" (62.99 cm)

General Specifications

  • Nominal Size:
    1.8 meter (6’)
  • Internal Work Area - Space:
    1.0 m² (10.8 ft²
  • Average Airflow Velocity:
    90 fpm at initial setpoint
  • Air Volume:
    1253 cfm
  • ULPA Filter Typical Efficiency:
    > 99.999% at particle size between 0.1 to 0.3 μm
  • Sound Emission per IEST-RP-CC002.2:
    59.6 dBA
  • LED Lamp Intensity at Zero Ambient:
    1494 Lux (139 foot candles)
  • Net Weight:
    228 Kg (503 lbs)
  • Shipping Weight:
    293 Kg (646 lbs)
  • Shipping Dimensions - Maximum (W x D x H):
    2200 x 900 x 1590 mm (87” x 35” x 62”)
  • Shipping Volume - Maximum:
    3.3 m³ (116.5 ft³)

Construction - Electrical

  • Main Body:
    1.2 mm (0.05”) 18-gauge electro-galvanized steel with white oven-baked epoxy-polyster powder-coated finish
  • Work Zone:
    1.2 mm (0.05”) 18-gauge stainless steel, grade 304, with 4B finish
  • Side Walls:
    UV absorbing tempered glass, 5 mm (0.2”), colorless and transparent
  • Cabinet Full Load Amps (FLA):
    11.5 A and 6.5 A (2 Power Inlet)
  • Optional Outlets (FLA):
    5 A
  • Cabinet Nominal Power (W):
    308
  • Heat Rejected - BTU per Hour:
    1051
