Benchmark Scientific - Z600-S3-GROUP - Sieva-3 Filtration Centrifuge
Product Range
| SKU | Name |
|---|---|
| Z600-S3-TC-E | Benchmark Scientific - Z600-S3-TC-E - Sieva-3 Filtration Centrifuge External Temperature Control, 230V |
| Z600-S3-E | Benchmark Scientific - Z600-S3-E - Sieva-3 Filtration Centrifuge, 230V |
| Z600-S3-TC | Benchmark Scientific - Z600-S3-TC - Sieva-3 Filtration Centrifuge External Temperature Control, 120V |
| Z600-S3 | Benchmark Scientific - Z600-S3 - Sieva-3 Filtration Centrifuge, 120V |
Features
The new unique Filtration Centrifuge SIEVA-3 is the advancement of our Centrifuge SIEVA-2.

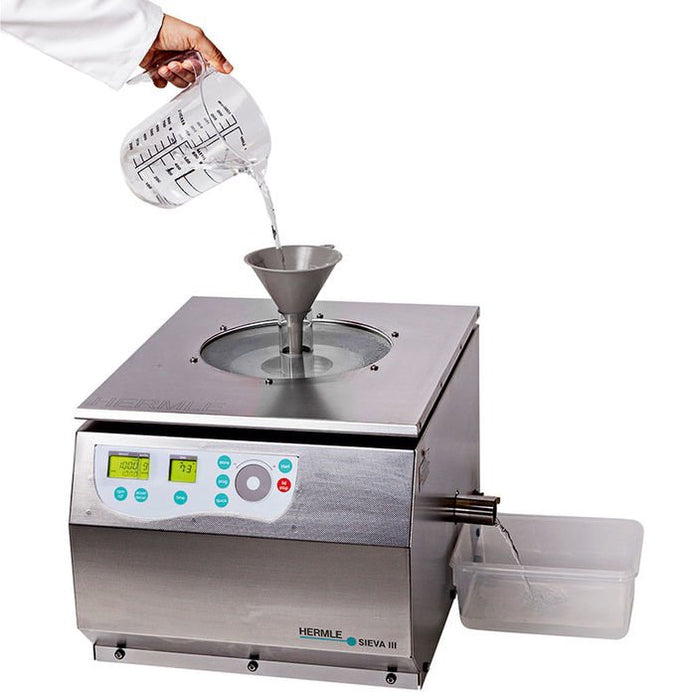

By an opening in the lid, it is possible to fill the centrifugal basket during rotation. The solids remain in the centrifugal basket, and the liquid can run off through an opening on the right side. The inspection window in the centrifuge lid is made of safety glass and enables visual monitoring of the centrifugation.
The SIEVA-3 is very versatile and suitable for various applications. The complete housing is made of stainless steel and is therefore resistant to highly corrosive agents.
The operating principle of this centrifuge is cake filtration, where the required pressure force is generated in the centrifugal field.

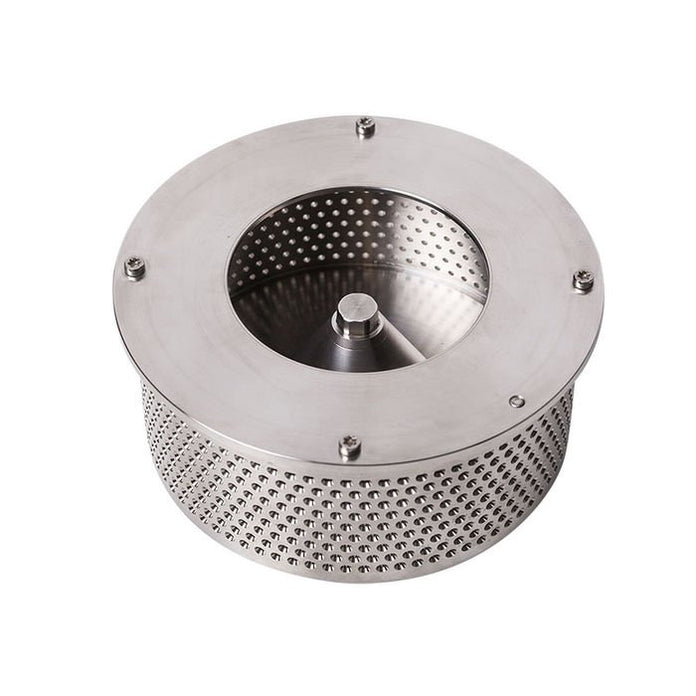

The perforated rotor is lined with a filter cloth. Due to the continuous inflow of the suspension, a filter cake builds up in the rotor, while the clarified liquid drains through the rotor casing or at the edge of the basket.
The filtration centrifuge SIEVA-3 is mainly used for batch separation of relatively coarse particles or crystalline substances.
Features and Functions
- Brushless induction drive
- Microprocessor control
- Active imbalance detection and cut-off
- One-hand closing
- Emergency lid lock
- Stainless steel chamber
- Stainless housing
- Autoclavable rotors
Display Functions
- Program memory for 99 programs
- Quick-key for short runs
- 10 acceleration and 10 deceleration rates
- Permanent indication of preset and actual values
- Pre-selection of running time from 10 sec to 99 h 59 min or continuous
- Simple one-handed operation
Specifications
Overview
Technical Data
-
Max. Speed:10000 rpm
-
Max. RCF:7825 xg
-
Max. Volume:500 ml
-
Speed Range:200 - 10000 rpm
-
Running Time:59 min 50 s / 10 s, 99 h 59 min / 1 min increments or continious run
-
Acceleration Time:9 sec
-
Deceleration Time:12 sec
-
Current Supply:230 V / 120 V
-
Power Supply:0.85 KW
-
Weight:37 kg
-
Order No.:330.00 V01 - 230 V / 50-60 Hz
-
Order No.:330.00 V02 - 120 V / 50-60 Hz
-
Order No.:330.00 V03 - 230 V / 50-60 Hz, for external temperature equalization
-
Order No.:330.00 V04 - 120 V / 50-60 Hz, for external temperature equalization
-
Order No.:330.00 V05 - 230 V / 50-60 Hz, for external temperature equalization, incl. special coating SafeCoat 778", incl. USB-package 800.001
Downloads
-
Sieva-3 Filtration Centrifuge BrochureDownload
