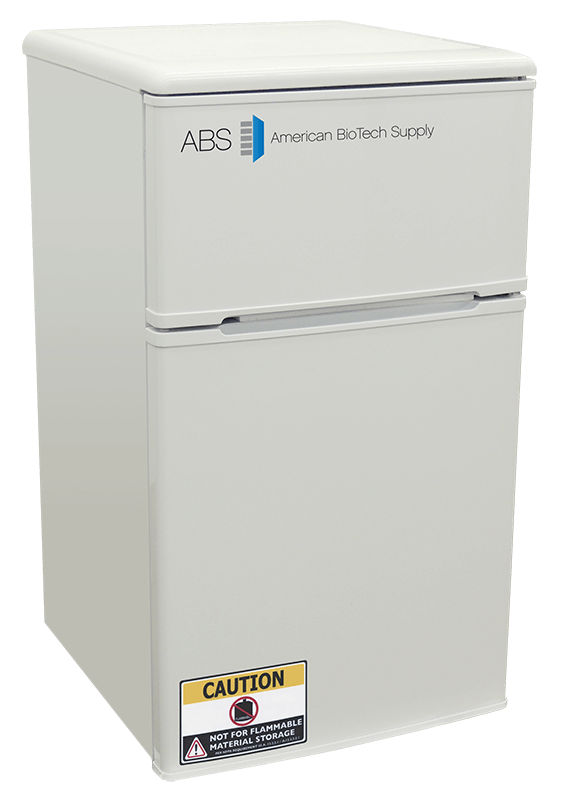

American Biotech Supply - ABT-RFC-3M - 3 Cu. Ft. Capacity General Purpose Refrigerator and Freezer Combination

American Biotech Supply - ABT-RFC-3M - 3 Cu. Ft. Capacity General Purpose Refrigerator and Freezer Combination

American Biotech Supply - ABT-RFC-3M - 3 Cu. Ft. Capacity General Purpose Refrigerator and Freezer Combination

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The General Purpose Dual Temp units meets and exceeds the specifications of most general-purpose units and provides both refrigerator and freezer compartments and are provided with standard analog dial temperature thermostats. Units are intended for general purpose applications only where precise temperature control and maintenance are not essential and there are no requirements for temperature alarms.

Features

The General Purpose Dual Temp units meet and exceed the specifications of most general-purpose units and provide both refrigerator and freezer compartments. They are equipped with standard analog dial temperature thermostats. These units are intended for general-purpose applications where precise temperature control and maintenance are not essential, and there are no requirements for temperature alarms.



Select models have freezers featuring a manual defrost operating system to limit product-damaging temperature spikes found in auto defrost units. Periodic manual defrosting is required.



Details



  • Two shelves (1 full adjustable / 0.5 fixed refrigerator) and 1 bin
  • Magnetic door gasket for positive seal
  • Recessed door handles
  • Leveling legs
  • HFC-free refrigerant (R600a), foam insulation, and packaging
  • Two-year parts and labor warranty, plus an additional three-year compressor parts warranty



Temp Controller



  • Mechanical thermostat
  • Refrigerator temperature range: 0°C to 10°C
  • Freezer temperature range: -8°C to -21°C

Specifications

Overview

  • Nominal Height:
    33.25" (84.46 cm)
  • Nominal Width:
    19" (48.26 cm)
  • Nominal Length:
    19.5" (49.53 cm)
  • Capacity:
    3

Technical Data - Freezer

  • Cu. Ft:
    1
  • Defrost:
    Manual
  • Door:
    1 Solid
  • Int Door:
    0
  • Shelves:
    1 Adj
  • Interior Dim. W:
    14.25"
  • Interior Dim. D:
    12"
  • Interior Dim. H:
    7.63"
  • Refrigerant:
    R600a
  • H.P:
    0.17
  • Amps:
    1.3
  • Weight:
    47 lbs.

Technical Data - Refrigerator

  • Cu. Ft:
    2
  • Defrost:
    Cycle
  • Door:
    1 Solid
  • Int Door:
    0
  • Shelves:
    1 Fixed
  • Interior Dim. W:
    15.5"
  • Interior Dim. D:
    11.5"
  • Interior Dim. H:
    18.75"
  • Refrigerant:
    R600a
  • H.P.:
    0.17
  • Amps:
    1.3
  • Weight:
    47 lbs.
