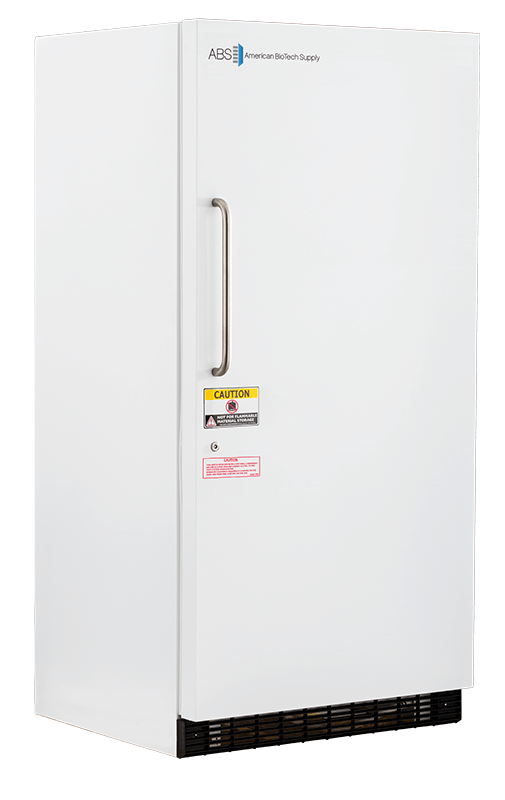

American Biotech Supply - ABT-RFC-30M - 30 Cu. Ft. General Purpose Refrigerator/Freezer Combination

American Biotech Supply - ABT-RFC-30M - 30 Cu. Ft. General Purpose Refrigerator/Freezer Combination

American Biotech Supply - ABT-RFC-30M - 30 Cu. Ft. General Purpose Refrigerator/Freezer Combination

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The General Purpose Dual Temp Standard units meets and exceeds the specifications of most general-purpose units and provides both refrigerator and freezer compartments and are provided with standard analog dial temperature thermostats.

Features

The General Purpose Dual Temp Standard units meet and exceed specifications for general-purpose applications, providing both refrigerator and freezer compartments with standard analog dial temperature thermostats. These units are intended for use where precise temperature control is not essential, and there are no requirements for temperature alarms.

Periodic manual defrosting is required.



Details



  • 30 cu. ft. capacity (25 cu. ft. refrigerator / 5 cu. ft. freezer)
  • 3 adjustable shelves in refrigerator
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Stainless steel door handle
  • Leveling legs
  • Two probe access ports (0.4"); one for refrigerator, one for freezer
  • Powder coat paint exterior
  • CFC-free refrigerant (R404a), foam insulation and packaging
  • Two-year parts and labor warranty, plus an additional three-year compressor parts warranty



Temp Controller



  • Mechanical thermostat
  • Refrigerator temperature range: 0°C to 10°C
  • Freezer temperature range: -15°C to -20°C

Specifications

Overview

  • Nominal Height:
    72.5" (184.15 cm)
  • Nominal Width:
    25.5" (64.77 cm)
  • Nominal Length:
    35.75" (90.81 cm)
  • Capacity:
    30

Technical Data - Freezer

  • Cu. Ft:
    5
  • Defrost:
    Auto
  • Door:
    1 Solid
  • Int Door:
    1
  • Shelves:
    0
  • Interior Dim. W:
    29"
  • Interior Dim. D:
    22.25"
  • Interior Dim. H:
    12"
  • Refrigerant:
    R600a
  • H.P:
    0.25
  • Amps:
    6
  • Weight:
    323 lbs.

Technical Data - Refrigerator

  • Cu. Ft:
    25
  • Defrost:
    Auto
  • Door:
    1 Solid
  • Int Door:
    0
  • Shelves:
    3 Adj
  • Interior Dim. W:
    32"
  • Interior Dim. D:
    22.5"
  • Interior Dim. H:
    20.25"
  • Refrigerant:
    R600a
  • H.P.:
    0.25
  • Amps:
    6
  • Weight:
    323 lbs.
