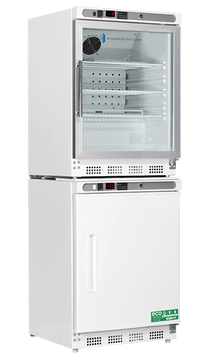

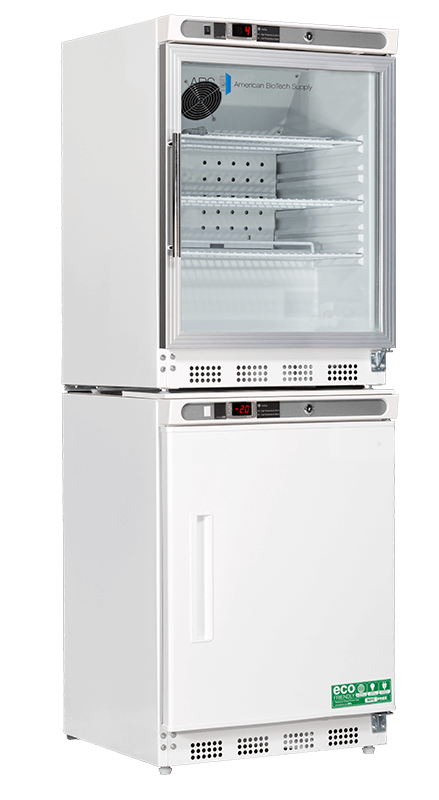

American Biotech Supply - ABT-HC-RFC9G - 9 Cu. Ft. Refrigerator and Freezer Combination with Glass Door Refrigerator

American Biotech Supply - ABT-HC-RFC9G - 9 Cu. Ft. Refrigerator and Freezer Combination with Glass Door Refrigerator
American Biotech Supply - ABT-HC-RFC9G - 9 Cu. Ft. Refrigerator and Freezer Combination with Glass Door Refrigerator
American Biotech Supply - ABT-HC-RFC9G - 9 Cu. Ft. Refrigerator and Freezer Combination with Glass Door Refrigerator

American Biotech Supply - ABT-HC-RFC9G - 9 Cu. Ft. Refrigerator and Freezer Combination with Glass Door Refrigerator

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The Premier Dual Temp Combination units feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY.

Features

The Premier Dual Temp Combination units feature separate microprocessor temperature controllers allowing for precise temperature control, verification, and recovery. An interior fan-driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY.



All models are equipped with digital temperature displays for convenient monitoring. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. The freezer units feature either an automatic or manual defrost operating system. For manual defrost freezers, periodic manual defrosting is required.



This model is designed with a "front-breathing" ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.



Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.



Details



  • 9 Cu. Ft. Capacity (4.6 Ref./4.2 Freezer)
  • 2 adjustable/1 fixed shelves refrigerator with guard rail on back to prevent product from being pushed against back wall / 2 fixed shelves freezer
  • Keyed door locks
  • Magnetic door gasket for positive seal
  • Recessed door handle, freezer; heavy duty door handle, refrigerator
  • Leveling legs
  • Stacking kit
  • LED interior light, Refrigerator
  • *Please note this unit requires 2 outlets

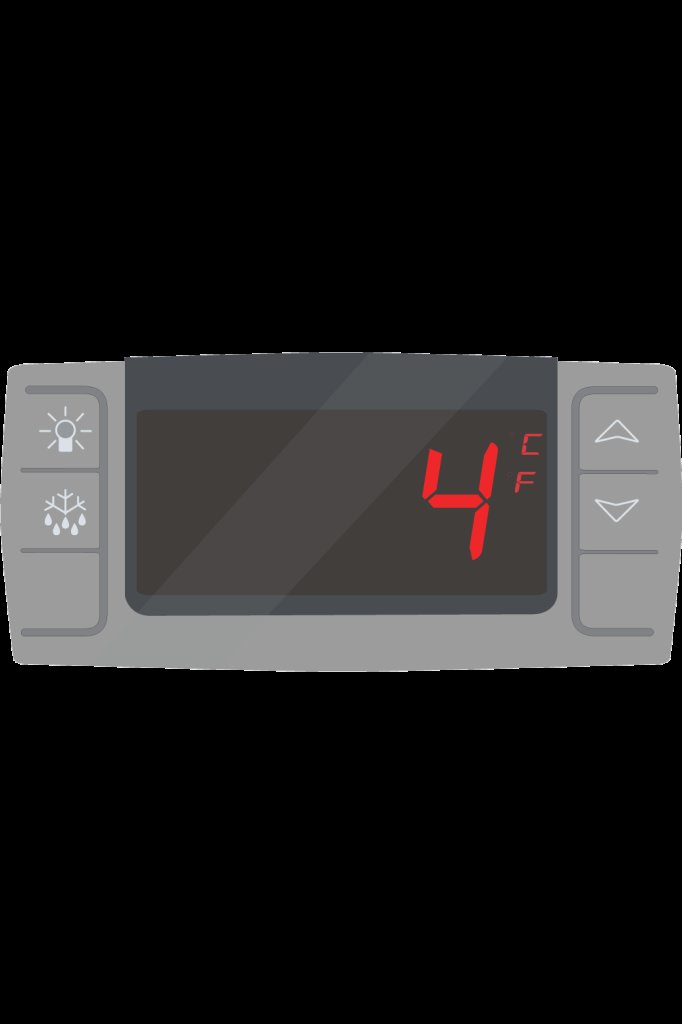

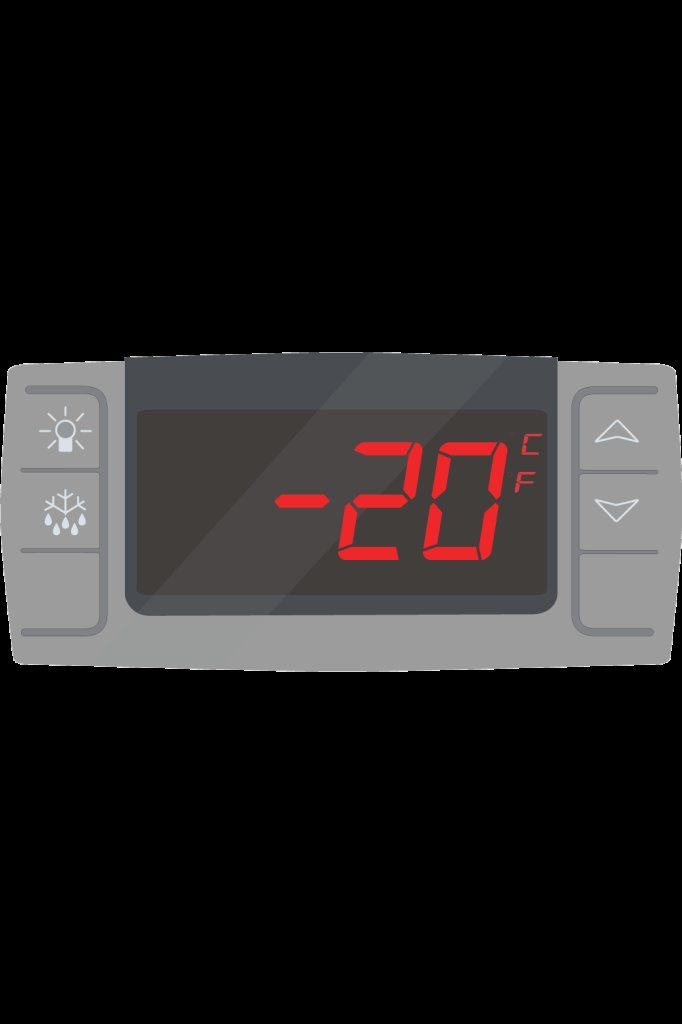

Temp Controller



  • Microprocessor temperature controller, refrigerator and freezer
  • Digital temperature display, refrigerator and freezer, and Alarm Module with battery back-up to support temperature monitoring and alarms
  • Audible and visual high and low temperature alarms, refrigerator and freezer
  • 2 probes; 1 in air and 1 in sample bottle, in both Refrigerator and Freezer
  • Remote alarm contacts, refrigerator and freezer
  • Adjustable operating temperature range: Refrigerator: 1°C to 10°C; Freezer: -15°C to -25°C

Specifications

Overview

  • Nominal Height:
    66.75" (169.55 cm)
  • Nominal Width:
    23.75" (60.33 cm)
  • Nominal Length:
    25.5" (64.77 cm)
  • Capacity:
    9

Technical Data - Freezer

  • Cu. Ft:
    4.2
  • Defrost:
    Manual
  • Door:
    1 Solid
  • Int Door:
    0
  • Shelves:
    2 Fixed
  • Interior Dim. W:
    19"
  • Interior Dim. D:
    17.25"
  • Interior Dim. H:
    24.5"
  • Refrigerant:
    R600a
  • H.P:
    1/8
  • Amps:
    1.5
  • Weight:
    200 lbs.

Technical Data - Refrigerator

  • Cu. Ft:
    4.6
  • Defrost:
    Cycle
  • Door:
    1 Glass
  • Int Door:
    0
  • Shelves:
    2 Adj/1 Fixed
  • Interior Dim. W:
    19.25"
  • Interior Dim. D:
    17.25"
  • Interior Dim. H:
    24.5"
  • Refrigerant:
    R600a
  • H.P.:
    1/8
  • Amps:
    1.74
  • Weight:
    200 lbs.
