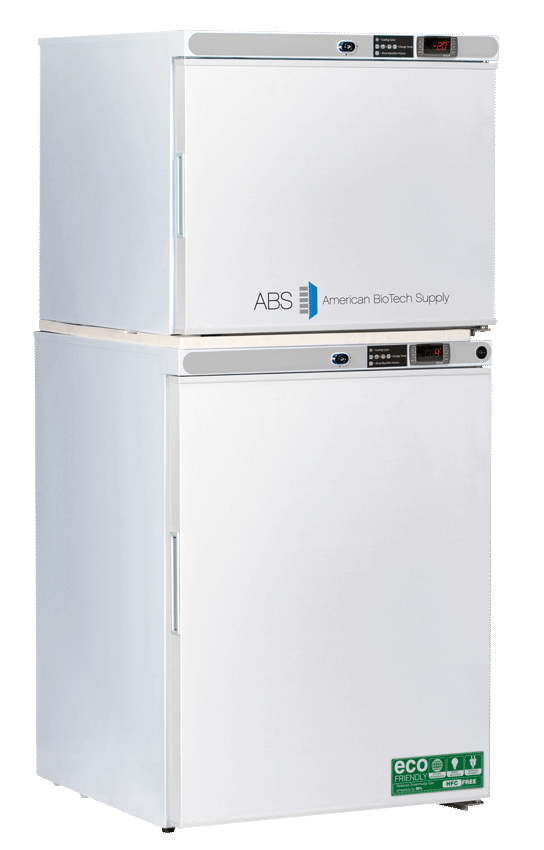

American Biotech Supply - ABT-HC-RFC7S - 7 Cu. Ft. Refrigerator and Freezer Solid Door Combination

Features
The Premier Dual Temp Combination units feature separate microprocessor temperature controllers allowing for precise temperature control, verification, and recovery. An interior fan-driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY.
All models are equipped with digital temperature displays for convenient monitoring. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. The freezer units feature either an automatic or manual defrost operating system. For manual defrost freezers, periodic manual defrosting is required.
This model requires 4" of clearance around the back and sides of the unit for proper ventilation. Improper installation will void the warranty and lead to temperature maintenance issues, overheating, and possible failure.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- 5.2 cu. ft. capacity (Refrigerator) / 1.7 cu. ft. capacity (Freezer)
- Two exterior swing doors (solid door refrigerator/solid door freezer), right hinged, not reversible
- 3 adjustable shelves (refrigerator) / 2 adjustable shelves (freezer), shelves have back rails to prevent product from being pushed against back wall
- Footed bottom shelf refrigerator and freezer
- Keyed door locks
- Magnetic door gasket for positive seal
- Integrated door handles
- Leveling legs
- Stacking kit
- Two probe access ports (0.4"); one for refrigerator and one for freezer
- White powder coated exterior
- HFC-free refrigerant (R600a), foam insulation and packaging
- Two year parts and labor warranty, plus an additional three year compressor parts warranty
Temp Controller
- Microprocessor temperature controller, refrigerator and freezer
- Digital temperature display, refrigerator and freezer
- Audible and visual high and low temperature alarms, refrigerator and freezer
- 2 probes; 1 in air and 1 in sample bottle, in both Refrigerator and Freezer
- Remote alarm contacts, refrigerator and freezer
- Adjustable operating temperature range: Refrigerator: 1°C - 10°C; Freezer: -15°C - -25°C
Specifications
Overview
-
Nominal Height:53.13" (134.95 cm)
-
Nominal Width:23.75" (60.33 cm)
-
Nominal Length:24" (60.96 cm)
-
Capacity:7
Technical Data - Freezer
-
Cu. Ft:1.7
-
Defrost:Manual
-
Door:1 Solid
-
Int Door:0
-
Shelves:2 Adj
-
Interior Dim. W:17.75"
-
Interior Dim. D:16"
-
Interior Dim. H:13.88"
-
Refrigerant:R600a
-
H.P:1/8
-
Amps:1
-
Weight:135 lbs.
Technical Data - Refrigerator
-
Cu. Ft:5.2
-
Defrost:Cycle
-
Door:1 Solid
-
Int Door:0
-
Shelves:3 Adj
-
Interior Dim. W:19.88"
-
Interior Dim. D:16"
-
Interior Dim. H:26.75"
-
Refrigerant:R600a
-
H.P.:1/6
-
Amps:1.3
-
Weight:135 lbs.
Drawings
-
ABT-HC-RFC7S Ext Cut SheetVisit Link
-
ABT-HC-RFC7S Int Cut SheetVisit Link
