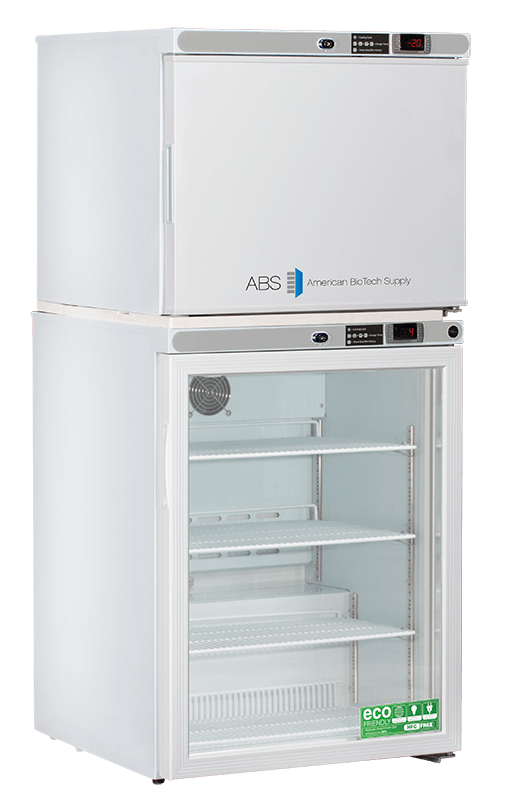

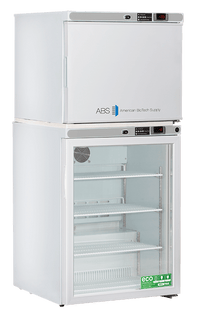

American Biotech Supply - ABT-HC-RFC7 - 7 Cu. Ft. Refrigerator and Freezer Combination

American Biotech Supply - ABT-HC-RFC7 - 7 Cu. Ft. Refrigerator and Freezer Combination
American Biotech Supply - ABT-HC-RFC7 - 7 Cu. Ft. Refrigerator and Freezer Combination
American Biotech Supply - ABT-HC-RFC7 - 7 Cu. Ft. Refrigerator and Freezer Combination
American Biotech Supply - ABT-HC-RFC7 - 7 Cu. Ft. Refrigerator and Freezer Combination

American Biotech Supply - ABT-HC-RFC7 - 7 Cu. Ft. Refrigerator and Freezer Combination

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The Premier Dual Temp Combination units feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY.

Features

The Premier Dual Temp Combination units feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY



All models are equipped with digital temperature displays for convenient monitoring. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. The freezer units feature either an automatic or manual defrost operating system. For manual defrost freezers, periodic manual defrosting is required.



This model requires 4" of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.



Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.



Details



  • 7 Cu. Ft. capacity (5.2 Ref./1.7 Freezer)

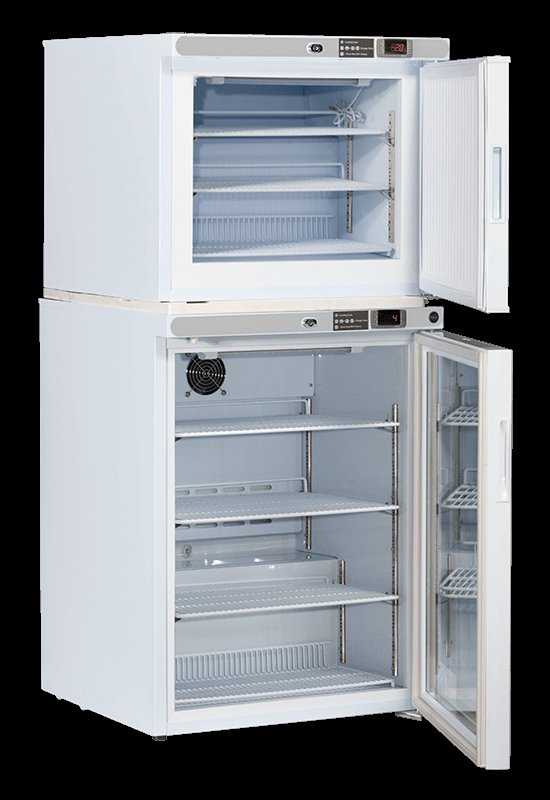

  • 3 adjustable shelves refrigerator/2 adjustable shelves freezer, shelves have back rails to prevent product from being pushed against back wall
  • Footed bottom shelf refrigerator, and freezer
  • Keyed door locks
  • Magnetic door gasket for positive seal
  • Integrated door handles
  • Leveling legs
  • Stacking kit
  • HFC-free refrigerant (R600a), foam insulation and packaging
  • Two year parts and labor warranty, plus an additional three year compressor parts warranty
  • *Please note this unit requires 2 outlets.

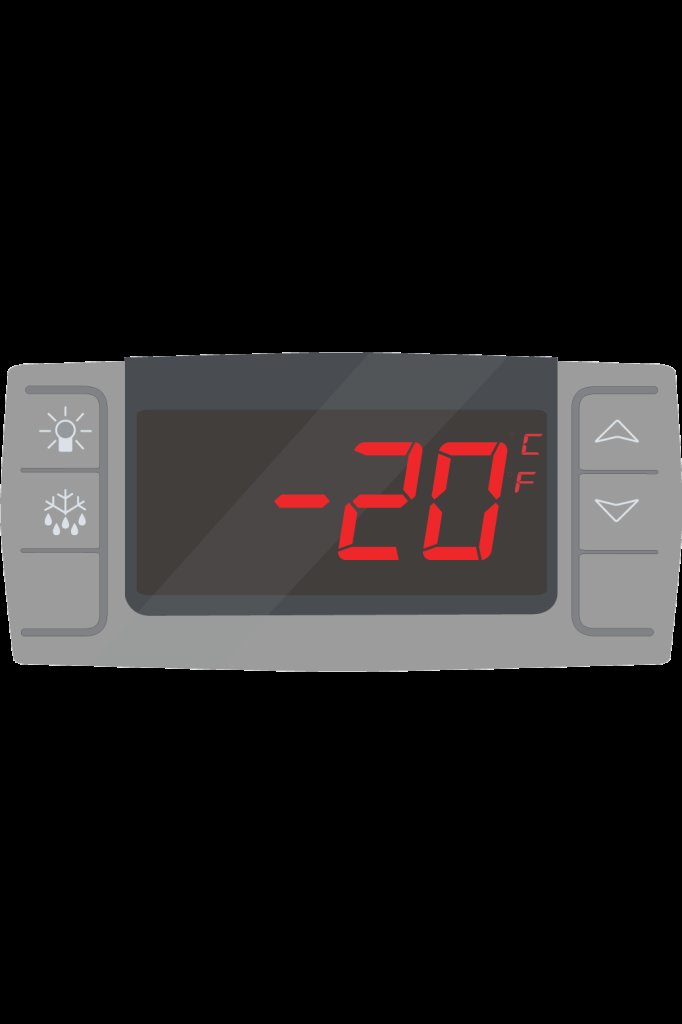

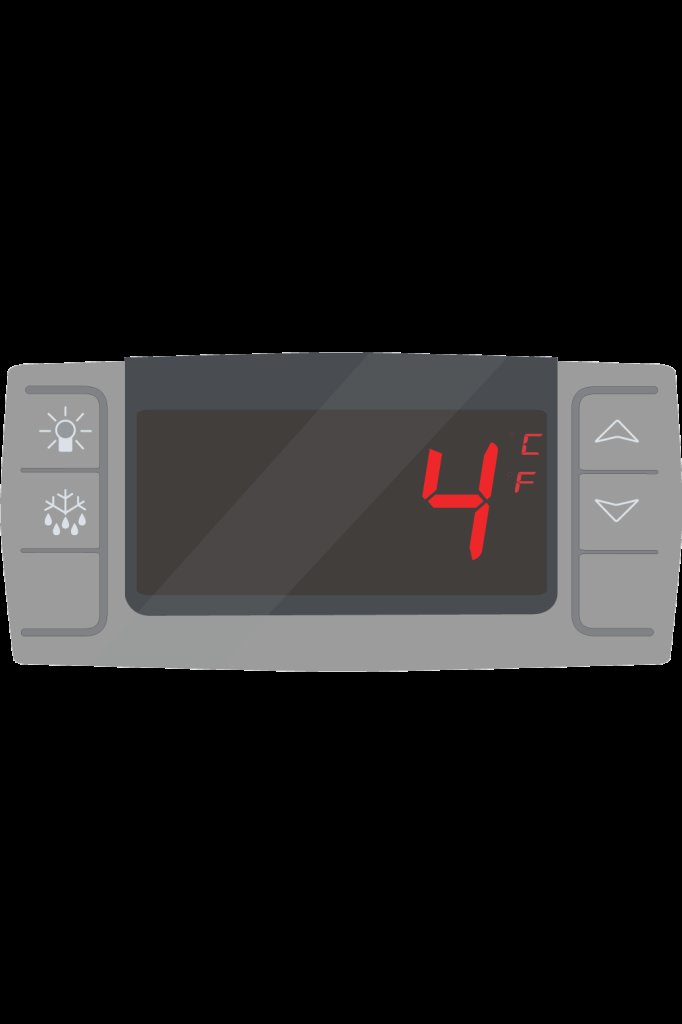

Temp Controller



  • Microprocessor temperature controller, refrigerator and freezer
  • Digital temperature display, refrigerator and freezer, and Alarm Module with battery back-up to support temperature monitoring and alarms
  • Audible and visual high and low temperature alarms, refrigerator and freezer
  • 2 probes; 1 in air and 1 in sample bottle, in both Refrigerator and Freezer
  • Remote alarm contacts, refrigerator and freezer
  • Adjustable operating temperature range: Refrigerator: 1°C to 10°C; Freezer: -15°C to -25°C

Specifications

Overview

  • Nominal Height:
    53.13" (134.95 cm)
  • Nominal Width:
    23.75" (60.33 cm)
  • Nominal Length:
    24" (60.96 cm)
  • Capacity:
    7

Technical Data - Freezer

  • Cu. Ft:
    1.7
  • Defrost:
    Manual
  • Door:
    1 Solid
  • Int Door:
    0
  • Shelves:
    2 Adj
  • Interior Dim. W:
    17.75"
  • Interior Dim. D:
    16"
  • Interior Dim. H:
    13.88"
  • Refrigerant:
    R600a
  • H.P:
    1/8
  • Amps:
    1
  • Weight:
    135 lbs.

Technical Data - Refrigerator

  • Cu. Ft:
    5.2
  • Defrost:
    Cycle
  • Door:
    1 Glass
  • Int Door:
    0
  • Shelves:
    3 Adj
  • Interior Dim. W:
    19.88"
  • Interior Dim. D:
    16"
  • Interior Dim. H:
    26.75"
  • Refrigerant:
    R600a
  • H.P.:
    1/6
  • Amps:
    1.3
  • Weight:
    135 lbs.
