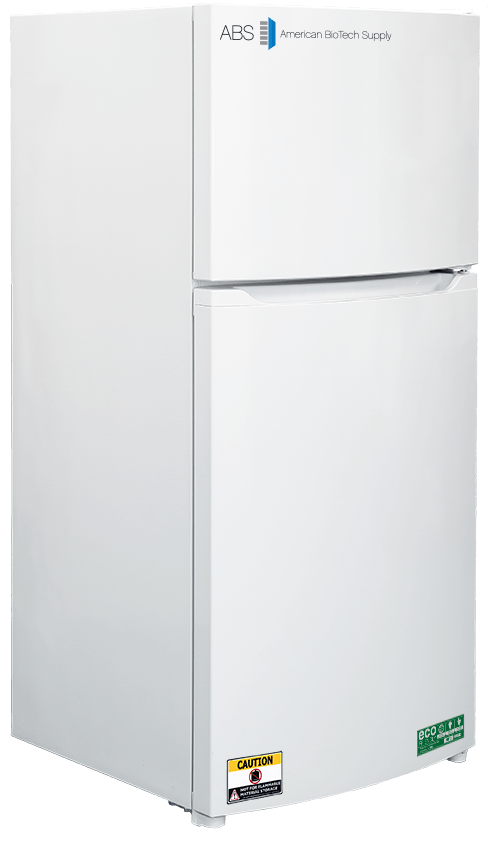

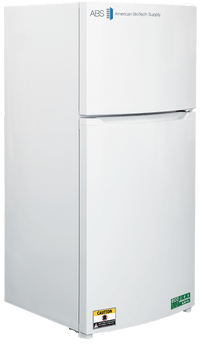

American Biotech Supply - ABT-HC-RFC-15A - 14 Cu. Ft. Capacity General Purpose Refrigerator and Freezer Combination

American Biotech Supply - ABT-HC-RFC-15A - 14 Cu. Ft. Capacity General Purpose Refrigerator and Freezer Combination
American Biotech Supply - ABT-HC-RFC-15A - 14 Cu. Ft. Capacity General Purpose Refrigerator and Freezer Combination

American Biotech Supply - ABT-HC-RFC-15A - 14 Cu. Ft. Capacity General Purpose Refrigerator and Freezer Combination

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The General Purpose Dual Temperature units meets and exceeds the specifications of most general-purpose units and provides both refrigerator and freezer compartments and are provided with standard analog dial temperature thermostats. Units are intended for general purpose applications only where precise temperature control and maintenance are not essential and there are no requirements for temperature alarms.

Features

The General Purpose Dual Temperature units meet and exceed the specifications of most general-purpose units and provide both refrigerator and freezer compartments. They are equipped with standard analog dial temperature thermostats. These units are intended for general-purpose applications where precise temperature control and maintenance are not essential, and there are no requirements for temperature alarms.



Models with auto defrost freezer compartments have programmed defrost cycles that will reach air temperatures of approximately 0 degrees Celsius.



Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.



Disclaimer: Auto defrost freezers incorporate an electric heater installed on the evaporator that assists in the removal of frost and ice. Although the heater helps speed up the frost and ice removal, it can raise the temperatures within the freezer.



Details



  • 14 cu. ft. capacity (10 ref. / 4 freezer)
  • ADA Compliant
  • Two exterior solid swing doors, right hinged, reversible

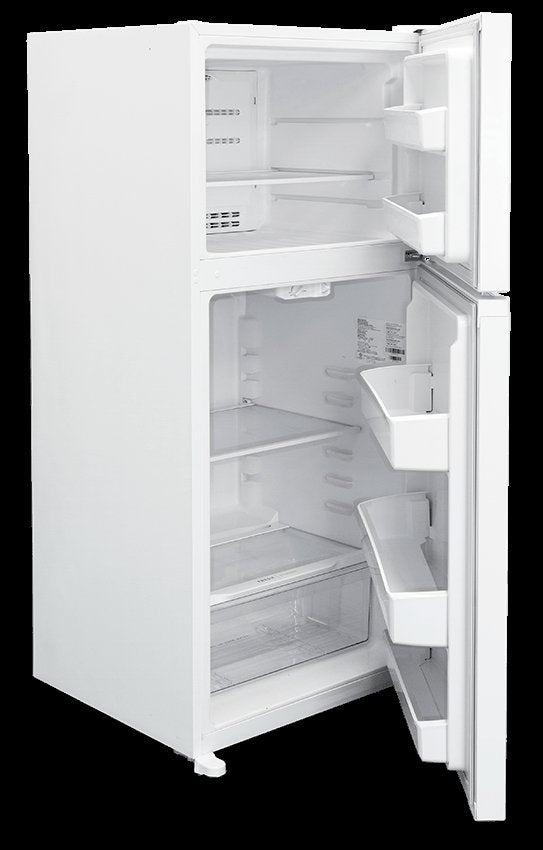

  • Two adjustable glass shelves (refrigerator) and two-gallon door bins, plus one half-gallon door bin
  • 1 full-width glass shelf (freezer) and 2 fixed door bins
  • Magnetic door gasket for positive seal
  • Integrated door handles
  • Leveling legs
  • Interior LED refrigerator light
  • Two probe access ports (0.4"); one for refrigerator, one for freezer
  • White textured cabinet and door
  • High density urethane foam cabinet and door insulation
  • HFC-free refrigerant (R600a), foam insulation, and packaging
  • Two-year parts and labor warranty, plus an additional three-year compressor parts warranty



Temp Controller



  • Mechanical thermostat
  • Refrigerator temperature range: 0°C to 10°C
  • Freezer chamber: -15°C to -10°C with two auto defrost cycles warming to 0°C per day

Specifications

Overview

  • Nominal Height:
    60.38" (153.37 cm)
  • Nominal Width:
    27.38" (69.55 cm)
  • Nominal Length:
    29" (73.66 cm)
  • Capacity:
    14

Technical Data - Freezer

  • Cu. Ft:
    4
  • Defrost:
    Auto
  • Door:
    1 Solid
  • Int Door:
    0
  • Shelves:
    1 Adj
  • Interior Dim. W:
    21.25"
  • Interior Dim. D:
    13.5"
  • Interior Dim. H:
    16.38"
  • Refrigerant:
    R600a
  • H.P:
    0.1
  • Amps:
    1.1
  • Weight:
    130 lbs.

Technical Data - Refrigerator

  • Cu. Ft:
    10
  • Defrost:
    Auto
  • Door:
    1 Solid
  • Int Door:
    0
  • Shelves:
    1 Adj /1 Fixed
  • Interior Dim. W:
    23.38"
  • Interior Dim. D:
    16.75"
  • Interior Dim. H:
    35"
  • Refrigerant:
    R600a
  • H.P.:
    0.1
  • Amps:
    1.1
  • Weight:
    130 lbs.
