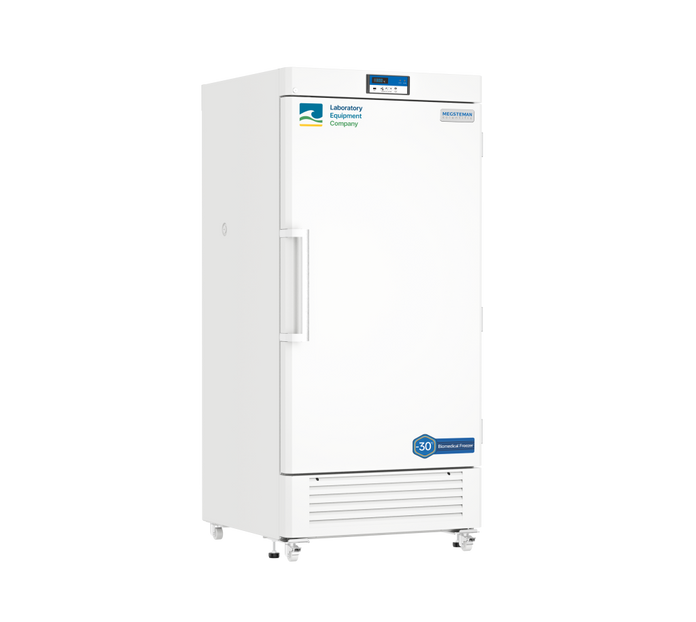

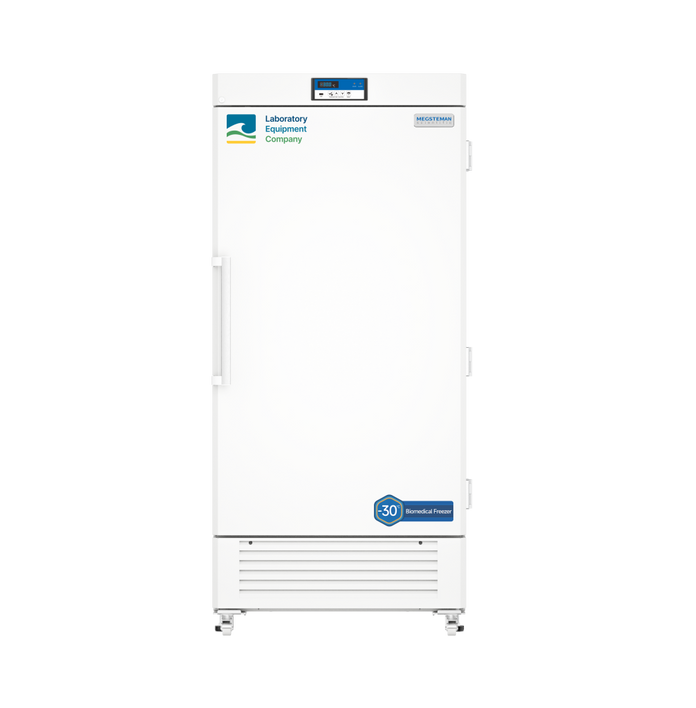

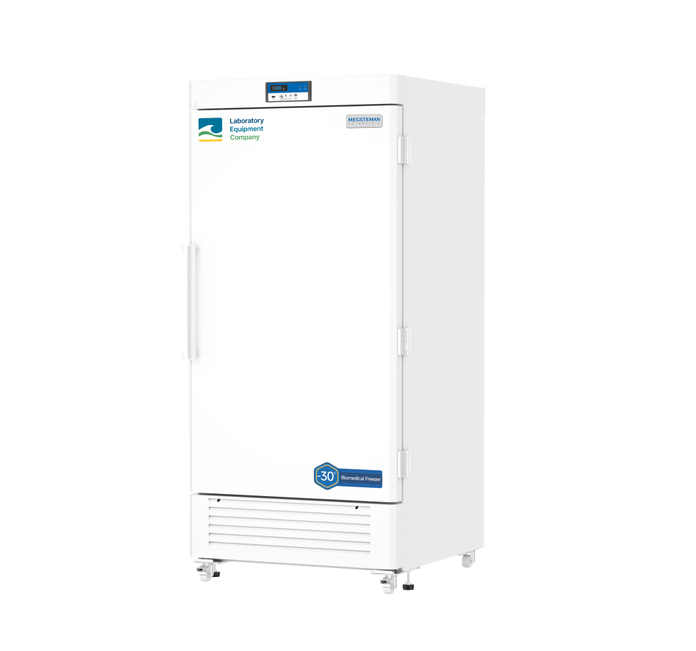

LEC - LEC-F2430 - Upright -30ºC BioMedical Freezer

Features
LEC’s new Biomedical Manual Defrost Freezer delivers uniform, reliable, and environmentally responsible performance for critical sample storage down to -30°C. Purpose-built for research, biotechnology, and clinical laboratories, this freezer combines robust construction with precision controls to ensure safe, dependable sample storage. From research breakthroughs to patient care, LEC delivers trusted -30°C storage you can depend on every day.
Key Features
- Temperature Range: -10 to -30°C
- Manual Defrost
- Adjustable Wire Shelves
- Precise Microprocessor Control with LED Display in 0.1°C increments
- Sample Safegard: 10 audible and visual alarms ensure protection
- Built-in Data logging: up to 12 months with USB export
- 1” Access Port
Sustainability
- High performance biomedical grade purpose-built refrigeration system
- SNAP compliant R-290 HC refrigerant
- Low Energy consumption meets EnergyStar® standard
- Direct Cooling Cold Wall Design
- 48 hour Back-up Battery
Ergonomics

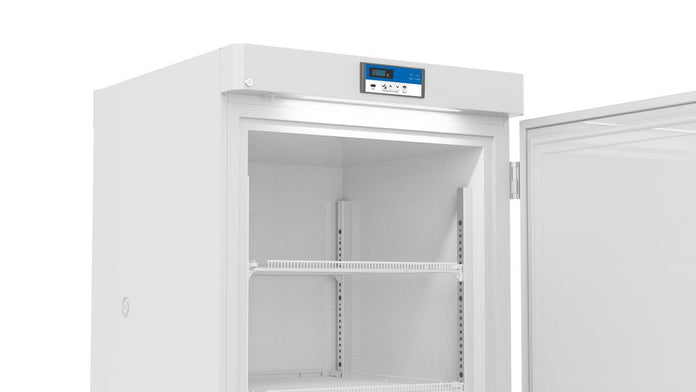

- Overhanging LED Light: Check samples in dim lighting
- Vacuum Relief Port: Use soft damp cloth, avoid corrosive chemicals
- Ergonomic Handle: EZ-Open patented one-handed design
- 180° Door Opening
- Heavy Duty Casters with leveling feet
Specifications

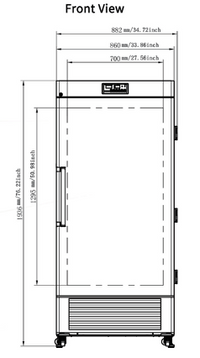

Overview
-

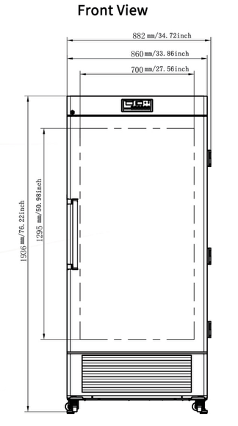

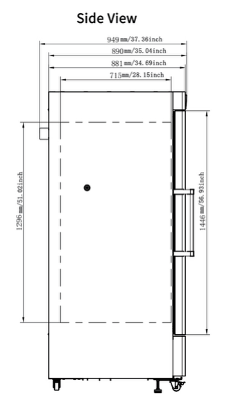

Nominal Height:76.2" (193.55 cm)
-
Nominal Width:34.7" (88.14 cm)
-
Nominal Length:37" (93.98 cm)
-
Internal Height:51" (129.54 cm)
-
Internal Width:27.5" (69.85 cm)
-
Internal Length:28.1" (71.37 cm)
-
Capacity:24
Freezer - Refrigerator
-
Electrical Freezer:NEMA 5-15 | 115V/15A, 60 Hz
-
Net Weight:331lb
-
Compliance:UL Listed
-
Warranty:3 Years parts and labor, 5 years compressor parts only
-
Compressor:1 pc, Single, hermetic, reciprocal compressor, 310W
-
Cooling / Evaporator Type:Cold Wall
-
Defrost:Manual
-
Refrigerants:SNAP compliant, Natural, R-290
-
Insulation:Rigid polyurethane foamed-in-place, 3.15" Thickness

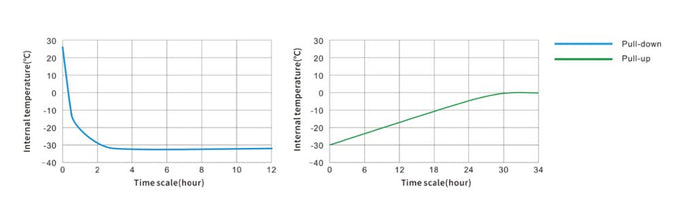

Performance
-
Temperature Range:-15°C to -30°C | 5°F to -22°F
-
Temperature Sensor:Thermistor (NTC)
-
Ambient Temperature:16°C to 32°C | 60.8°F to 89.6°F
-

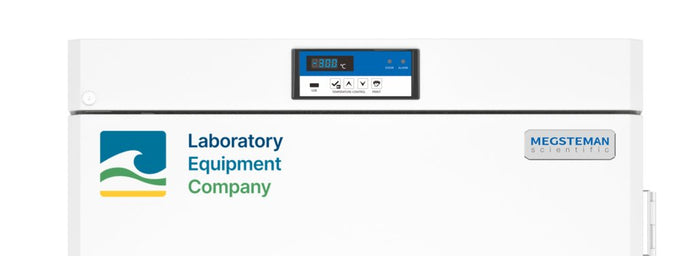

Controller:Microprocessor with LED Digital Display
-
Noise:50dB(A)
Construction & Alarm
-
Door Lock:Yes, 2 keys provided
-
Exterior Material:Bright white powder coated steel
-
Interior Material:Bright White painted aluminum liner
-

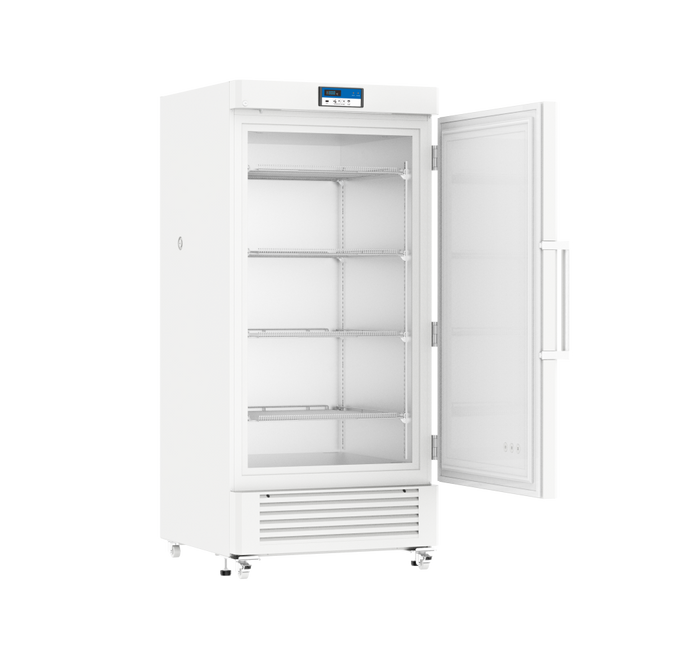

Shelves:4 Adjustable coated steel wire, Max Load 66.1 lbs
-
Useable Shelf Dimensions:25.9" W x 25.6" D
-
Access Port:1.0ӯ left side
-
Casters & Leveling Feet:4 swivel casters plus 2 leveling feet
-
On Board Data Logging:Yes, 10 minute interval, 2 years max capacity, USB download
-
Backup Battery for Controller:Yes, 48 Hours
-
Remote Alarm Contacts and Outputs:Normal open, normal closed, common | DC 30V, 2A | RS485
-
Temperature:High/Low temperature, High ambient temperature
-
Electrical:Power failure, Low battery
-
System Operations:Door Ajar, Refrigeration function, Main board function
