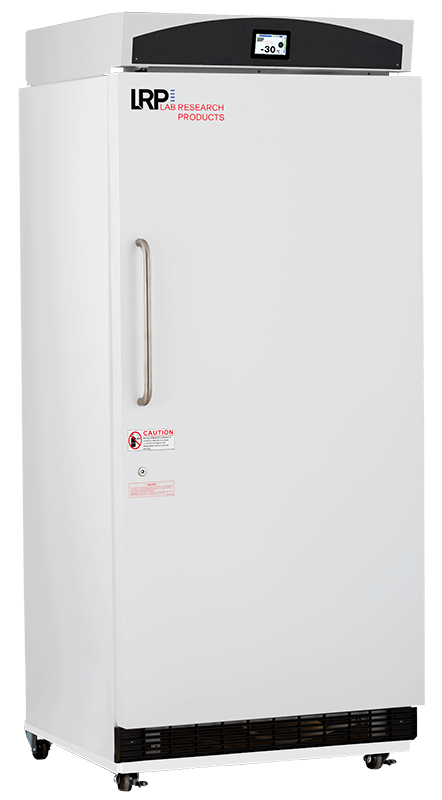

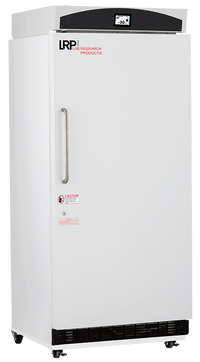

The TempLog Plus Series Manual Defrost Freezers are purpose-built for scientific and medical applications. Units feature a digital microprocessor temperature controller allowing for the precise temperature management necessary for critical samples and supplies. A manual defrost design prevents product-damaging temperature spikes from defrost cycles.

Defrosting of the unit will need to be performed periodically to prevent severe ice build-up.

The all-new Touch Screen temperature display and alarm module offers the latest in advanced temperature control and data logging, providing industry-leading product security with a monitoring and alarm system that is 100% independent of the temperature controller.

Real-time sample simulated temperatures are constantly displayed, logged, and supported by audible/visual high and low temperature alarms, along with power outage, sensor error, and door ajar alarms. Remote alarm dry contacts, a 4-20mA output, and an access port are provided to simplify connections to existing facility monitoring systems. A USB port is available for easy data transfer and software updates.

Details

• One solid swing door, right hinged, not reversible
• Five inner "fast-freeze compartments" with doors for temperature maintenance and recovery
• Four fixed shelves
• Keyed door lock
• Magnetic door gasket for positive seal
• Stainless steel door handle
• Caster platform (adds 4" to height)
• One probe access port (3/8")
• White textured cabinet and door
• High density urethane foam cabinet and door insulation
• CFC-free refrigerant (R404a), foam insulation, and packaging
• Three-year parts and labor warranty, plus additional two-year compressor parts warranty

Temp Controller

• Microprocessor temperature controller
• Adjustable operating temperature range: -27°C to -33°C

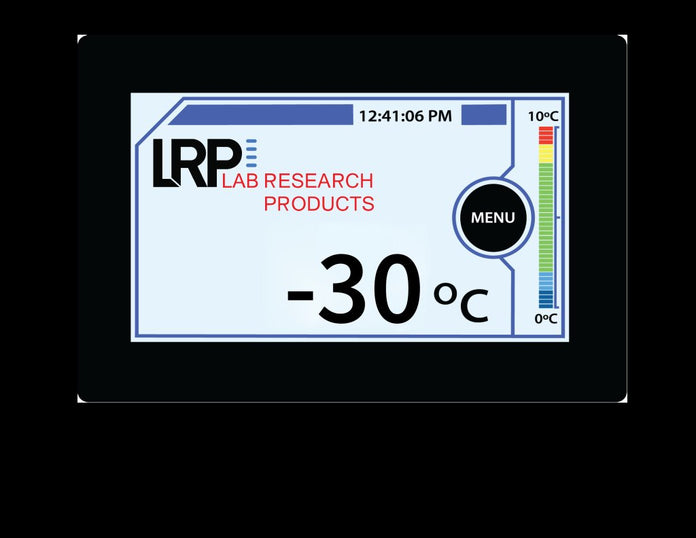

• Touch Screen Digital Temperature Display and Alarm Module
• Password-protected control panel
• Sample simulated digital temperature display; .1° resolution, adjustable temperature display in Celsius or Fahrenheit
• Active temperature scale bar display
• Resettable 1-point min/max history
• Digital 24-hour temperature chart
• Temperature data logging
• USB port for data transfer and software updates
• Real-time operational display clock
• 4-20mA output
• Electronic troubleshooting guide
• Electronic QR Code to access Owner’s Manual & technical support contact information
• Adjustable alarm volume
• Audible and visual high/low temperature alarms
• Sensor error alarm
• Power failure alarm
• Door ajar alarm
• Low battery alarm
• Operation indicator
• Alarm validation (audible, visual, and remote alarm)
• Alarm mute with ring back
• Remote alarm contacts
