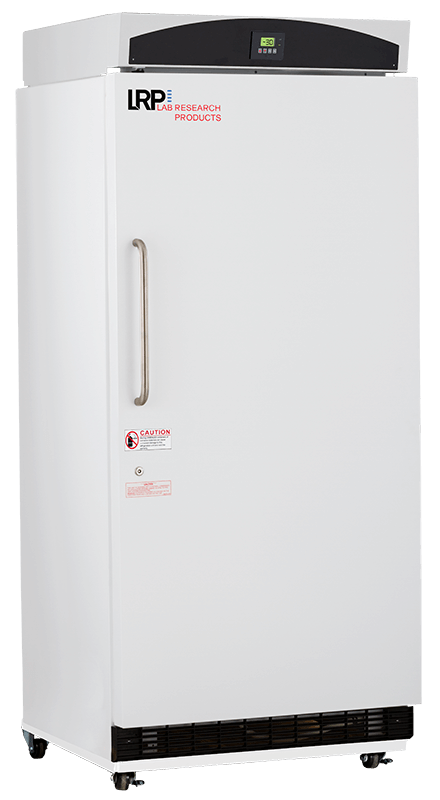

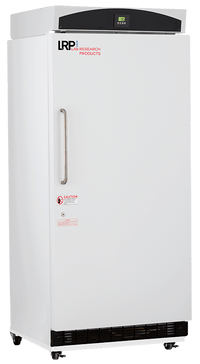

The TempLog Plus Series Manual Defrost Freezers  are purpose built for scientific and medical applications. Units feature a digital microprocessor temperature controller allowing for the precise temperature management necessary for critical samples and supplies. A manual defrost design prevents product damaging temperature spikes from defrost cycles.

The all-new Touch Screen temperature display and alarm module offers the latest in advanced temperature control and data logging. Offering industry-leading product security with a monitoring and alarm system that is 100% independent of the temperature controller.

Real-time sample simulated temperatures are constantly displayed, logged and supported by audible/visual high and low temperature alarms, along with power outage, sensor error and door ajar alarms, remote alarm dry contacts, a 4-20mA output and an access port are provided to simplify connections to existing facility monitoring systems. A USB port is provided for easy transfer as well as software updates.

Details

• One solid swing door, right hinged, not reversible
• Five inner "fast-freeze compartments" with doors for temperature maintenance and recovery
• Four fixed shelves
• Keyed door lock
• Magnetic door gasket for positive seal
• Stainless steel door handle
• Caster platform (adds 4" to height)
• One probe access port (3/8")
• White textured cabinet and door
• High density urethane foam cabinet and door insulation
• CFC-free refrigerant (R404a), foam insulation and packaging
• Three year parts and labor warranty, plus additional two year compressor parts warranty

Temp Controller

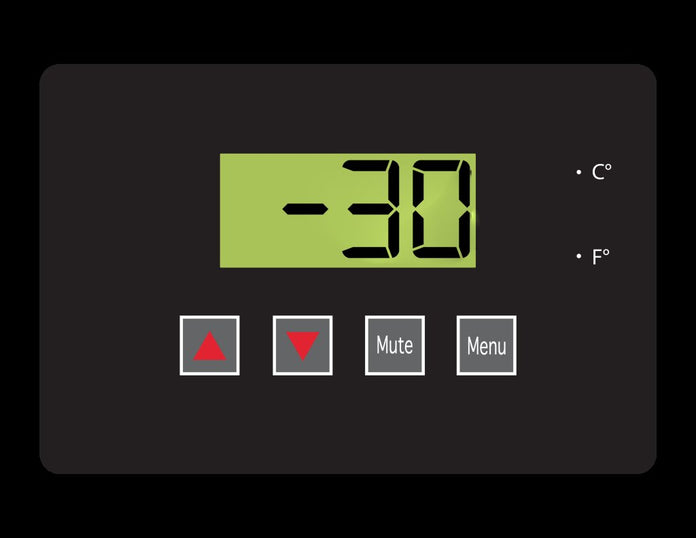

• Microprocessor Temperature Controller
• Adjustable operating temperature range: -27°C to 33°C
• Standard Digital Temperature Display and Alarm Module
• Sample simulated digital temperature display; .1° Resolution
• Adjustable temperature display in Celsius or Fahrenheit
• Audible and visual high/low temperature alarms
• Sensor error alarm
• Power failure alarm
• Resettable 1-point Min/Max History
• Remote alarm contacts
• Alarm validation (audible, visual, and remote alarm)
• Alarm mute with ring back
