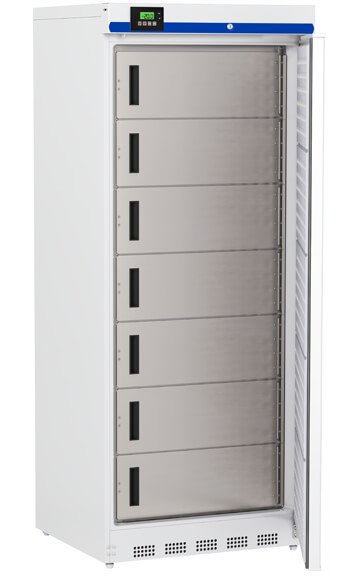

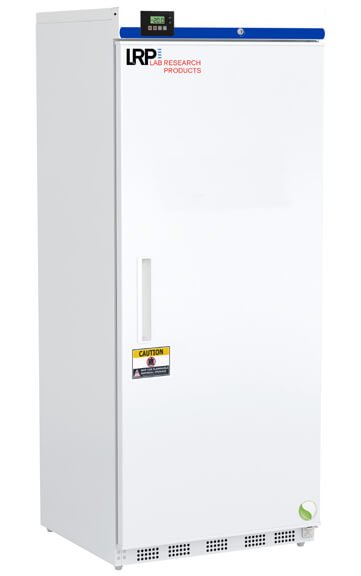

Lab Research Products - LRP-HC-MFP-20P - 20 Cu. Ft. Plus Series Manual Defrost Laboratory Freezer

Lab Research Products - LRP-HC-MFP-20P - 20 Cu. Ft. Plus Series Manual Defrost Laboratory Freezer
Lab Research Products - LRP-HC-MFP-20P - 20 Cu. Ft. Plus Series Manual Defrost Laboratory Freezer

Lab Research Products - LRP-HC-MFP-20P - 20 Cu. Ft. Plus Series Manual Defrost Laboratory Freezer

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
These manual defrost laboratory freezers offer professional cold storage for scientific and industrial settings. Units come equipped with temperature alarms, keyed door locks, probe access, and precise temperature monitoring through microprocessor control.

Features

These manual defrost laboratory freezers offer professional cold storage for scientific and industrial settings. Units come equipped with temperature alarms, keyed door locks, probe access, and precise temperature monitoring through microprocessor control.



Our Plus Series freezers include premium additions such as extensive alarm systems and digital touch pad displays. All units run on natural, hydrocarbon refrigerant for environmental health and energy efficiency.



Temp Controller



  • Controller technology: Microprocessor temperature controller with digital temperature display, °C/°F switchable
  • Display technology: Bi-Colored LED display and alarm module with 1°C resolution, touchpad controls, resettable 1-point min/max history
  • Adjustable Temperature Range: -15°C to -25°C
  • External alarm connection: State switching remote alarm contacts
  • Alarms: Audible and visual high and low temperature alarms, sensor error alarm, power failure alarm, alarm validation (audible, visual, and remote alarm), and alarm mute with ring back
  • Controller probe: 2 Probes, 1 in air and 1 in sample bottle.
  • Disclaimers: Defrosting of the unit will need to be performed periodically to prevent severe ice build-up.Indoor use only, +18°C to +26°C (+65°F to +78°F), 70% RH.Specifications are subject to change.

Specifications

Overview

  • Nominal Height:
    76.38" (194.01 cm)
  • Nominal Width:
    28.75" (73.03 cm)
  • Nominal Length:
    30.88" (78.44 cm)
  • Internal Width:
    20.5" (52.07 cm)
  • Internal Length:
    23.13" (58.75 cm)
  • Capacity:
    20

General Description and Application

  • Door:
    Solid, right hinged, magnetic door gasket for positive seal
  • Shelves:
    6 Fixed
  • Freezer Compartments:
    7 Inner Doors
  • Baskets:
    Non-applicable
  • Mounting:
    Leveling Legs
  • Interior Lighting:
    Non-applicable
  • Airflow Management:
    Non-applicable
  • External Probe Access:
    Rear wall port (3/4") dia.
  • Insulation:
    Cabinet is foamed-in-place with EPA compliant high density urethane foam
  • Exterior Materials:
    White powder coated steel
  • Access Control:
    Keyed door lock
  • Product Weight (lbs):
    261
  • Shipping Weight (lbs):
    286
  • Rated Amperage:
    6 Amps
  • Power Plug/Power Cord:
    NEMA 5-15P Plug, conforms to UL471 requirements
  • Facility Electrical Requirement:
    115V, 60 Hz
  • Agency Listing and Certification:
    ETL Listed, Energy Star Certified

Refrigeration System

  • Refrigerant:
    R290
  • Defrost:
    Manual
