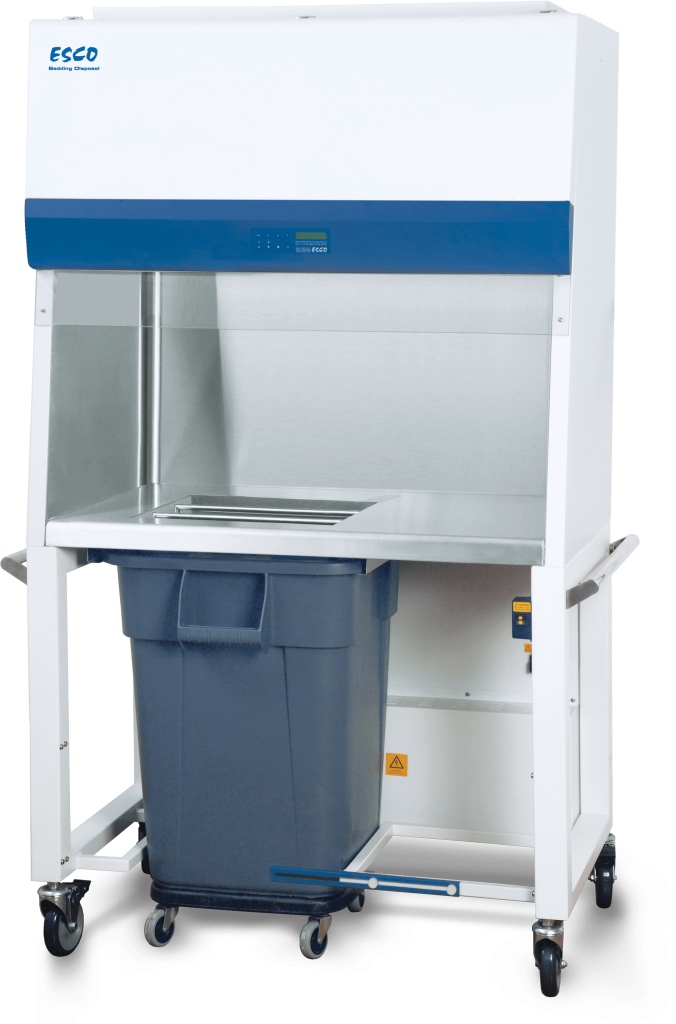

VIVA® Bedding Disposal Workstation, 4ft/1.2m, 110-120 VAC, 60 Hz.

Features

Cage cleaning and bedding disposal procedures are now simpler, safer, and more productive with the VIVA® Bedding Disposal Animal Workstation (VBD). Specifically designed for the animal research laboratory, the mobile workstation protects personnel and the lab environment from exposure to allergens and unpleasant odors.



VBD also features a height-adjustable stand that allows the work surface height to be adjusted to user preference, minimizing strain during repetitive operations. An integrated waste container enables direct disposal of waste items within the work zone.



Sentinel™ Silver Microprocessor Control system



  • Displays basic parameters such as airflow on one screen
  • Has audible and visual alarms



ULPA Filter



  • 10x filtration efficiency compared to HEPA filter



Nanocarb™ Activated Carbon



  • Eliminates odors
  • Provides environment protection



Integrated Waste Chute



  • Hassle-free disposal
  • Prevents contamination



Bang Bars



  • Increases efficiency of bedding disposal operations



Isocide™ Antimicrobial Powder Coating



  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Specifications

Overview

  • Nominal Height:
    89.4" (227.08 cm)
  • Nominal Width:
    49.1" (124.71 cm)
  • Nominal Length:
    30" (76.2 cm)
  • Internal Height:
    23.4" (59.44 cm)
  • Internal Width:
    40.9" (103.89 cm)
  • Internal Length:
    26.8" (68.07 cm)

General Specifications

  • Nominal Size:
    1.2 meter (4')
  • Work Surface Height:
    920 mm-1225 mm (36.2-48.2")
  • Front Opening:
    400 mm (15.7")
  • Inflow Velocity:
    0.35 m/s (20 fpm) at initial setpoint
  • Pre-Filter:
    Disposable, non-washable polyester fiber, 85% arrestance, EU3 rated
  • ULPA Filter Typical Efficiency:
    >99.999% at 0.1 to 0.3 microns as per IEST-RP-CC0013 USA
  • Sound Emission Per EN 12469:
    <65 dBA
  • LED Lamp:
    > 1,300 lux (> 121 foot candles)
  • Net Weight:
    233 Kg (514 lbs)
  • Shipping Weight:
    294 Kg (648 lbs)
  • Shipping Dimensions, Maximum (W x D x H):
    2150 x 1840 x 1230 mm (84.6" x 72.4" x 48.4")
  • Shipping Volume, Maximum:
    4.87 m³ (172 cu.ft.)

Electrical

  • Voltages:
    110-120 VAC, 60 Hz, 1Ф
  • Cabinet Full Load Amps (FLA):
    6.5 A
  • Optional Outlets FLA:
    5 A
  • Cabinet Nominal Power:
    268 W
  • Cabinet BTU:
    914

Workstation Construction

  • Main Body:
    1.2 mm (0.05") 18 gauge electro-galvanized steel with Isocide™ white oven-baked epoxy-polyester powder coating
  • Work Top:
    1.2 mm (0.05") 18 gauge stainless steel, type 304, with B4 finish
  • Inner Liner:
    0.9 mm (0.035") 20 gauge stainless steel, type 304, with B4 finish
