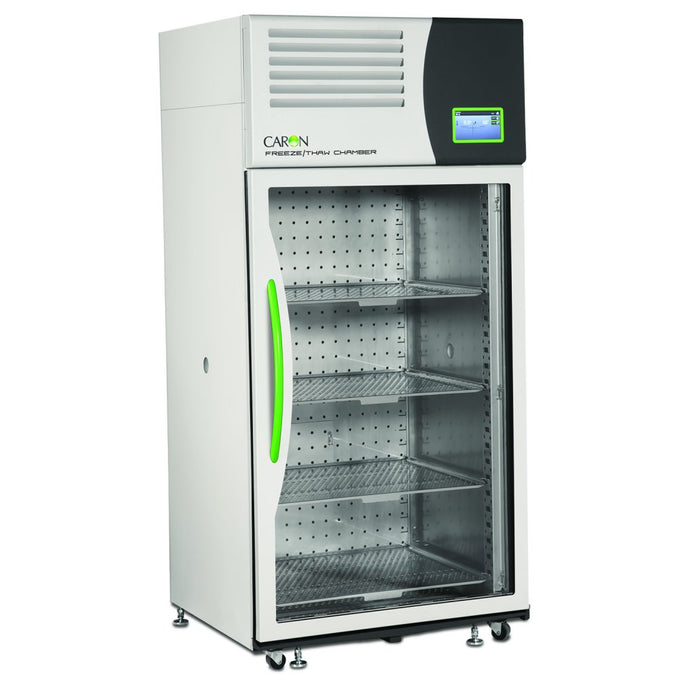

Caron - 7900-25-2 - Refrigerated and Controlled RH Freeze/Thaw Chambers

Caron - 7900-25-2 - Refrigerated and Controlled RH Freeze/Thaw Chambers

Caron - 7900-25-2 - Refrigerated and Controlled RH Freeze/Thaw Chambers

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Explore the versatility of Caron’s freeze/thaw chambers. Key features Designed to simulate a wide range of environmental conditions Programable temperature cycling to simulate multiple freeze/thaw cycles Critical for biological activity and drug efficiency testing Available in both 25 cu. ft. and 33 cu. ct. chamber sizes Intuitive touchscreen controls for simple set up and adjustments.

Features

Master the art of temperature cycling with Caron's Freeze/Thaw Chambers. With an impressive temperature range from -25°C to +70°C, these chambers stand ready to tackle any test demanding sub-zero conditions. Engineered with the user in mind, each chamber features user-friendly touchscreen controls, making test setup and adjustments a breeze. Streamline your testing, ensure pinpoint accuracy, and secure consistent outcomes with Caron.


Key Features


  • Designed to simulate a wide range of environmental conditions
  • Programmable temperature cycling to simulate multiple freeze/thaw cycles
  • Critical for biological activity and drug efficiency testing
  • Available in both 25 cu.ft. and 33 cu.ft. chamber sizes
  • Intuitive touchscreen controls for simple setup and adjustments

Specifications

Overview

  • Nominal Height:
    77.1" (195.83 cm)
  • Nominal Width:
    35.5" (90.17 cm)
  • Nominal Length:
    33.3" (84.58 cm)
  • Internal Height:
    52.7" (133.86 cm)
  • Internal Width:
    32" (81.28 cm)
  • Internal Length:
    27" (68.58 cm)
  • Capacity:
    25

General Specifications

  • Temperature Range:
    -25°C to 70°C
  • Temperature Control:
    ±0.1°C
  • Temperature Uniformity:
    ±0.3°C
  • Temperature Sensor:
    3-wire RTD
  • Humidity Range:
    Amb. 20 to 95%RH
  • Humidity Control:
    ± 2%RH
  • Humidity Sensor:
    Capacitative
  • Interior Construction:
    Type 304, 2B finish, solid stainless steel
  • Exterior Construction:
    Cold rolled steel, powder coated
  • Shelf Construction:
    Type 304, perforated stainless steel, electropolished

Electrical

  • Voltage:
    208 / 230V
  • Frequency:
    60Hz
  • FLA:
    12A

Dimensions - Weights - Shelving

  • Shelves Total:
    4 standard / 25 maximum
  • Shelf Dimensions:
    29.25" W x 24.45" D (74.3 cm x 62.1 cm)
  • Shipping Weight:
    785 lbs
