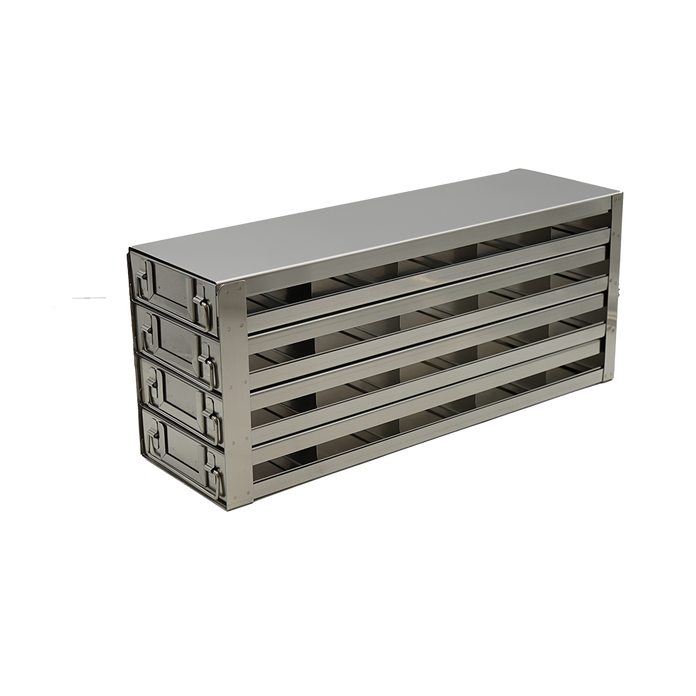

UFDML-54 - Drawer Freezer Rack for SBS Formatted Boxes, 5x4 Configuration

Features
Upright Freezer Drawer Rack
For Micronic
Loborack-96 with Standard Cover (H = 1 1/4 inch/ 31.7mm)
Loborack-96 with High Cover (H = 1 1/2 inch/ 38.7mm)
For Fluidx
Low Profile 96-Format Rack for all 0.5ml and 0.75ml Tube with Standard Profile Lid (H = 1 5/16 inch/ 32.9mm)
96-Format Rack for Tube with Protective Jacket with Low Cover (H = 1 1/2 inch/ 38mm)
For Abgene
0.5ml 2D Barcoded Lock Storage Tube Rack (H = 1 1/2 inch/ 38.5mm)
0.6ml 2D Barcoded Storage Tube Rack (H = 1 1/2 inch/ 38.5mm)
- Made of corrosion resistant stainless steel.
- Drawer racks allow easy access to and storage of samples without having to remove the whole rack from the freezer.
Specifications

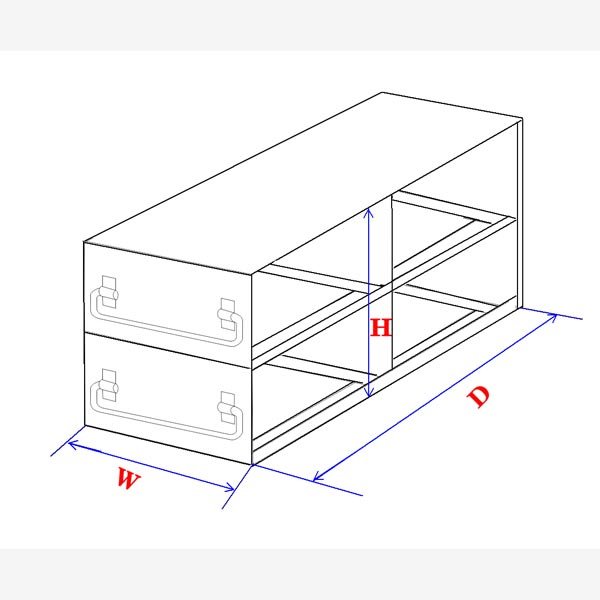

Overview
-
Nominal Height:7.38" (18.75 cm)
-
Nominal Width:5.44" (13.82 cm)
-
Nominal Length:17.88" (45.42 cm)
Technical Data
-

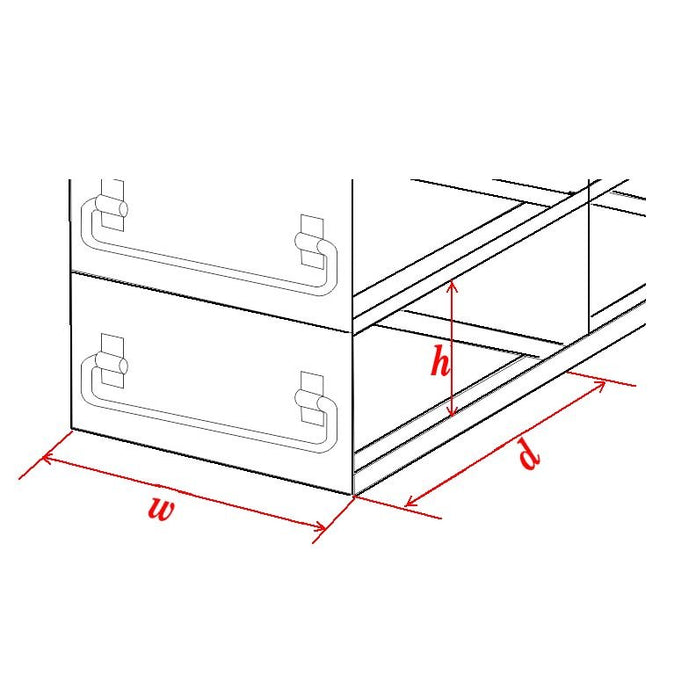

Compartment Size (l x h x w):3.44 x 1.63 x 5.13 inch (88 x 41.4 x 130 mm)
-
Capacity:5x4 = 20
-
Shipping Weight (lb) (Kg):9.4 (4.27)
Downloads
-
Freezer Racks, Boxes & Canisters CatalogsDownload
