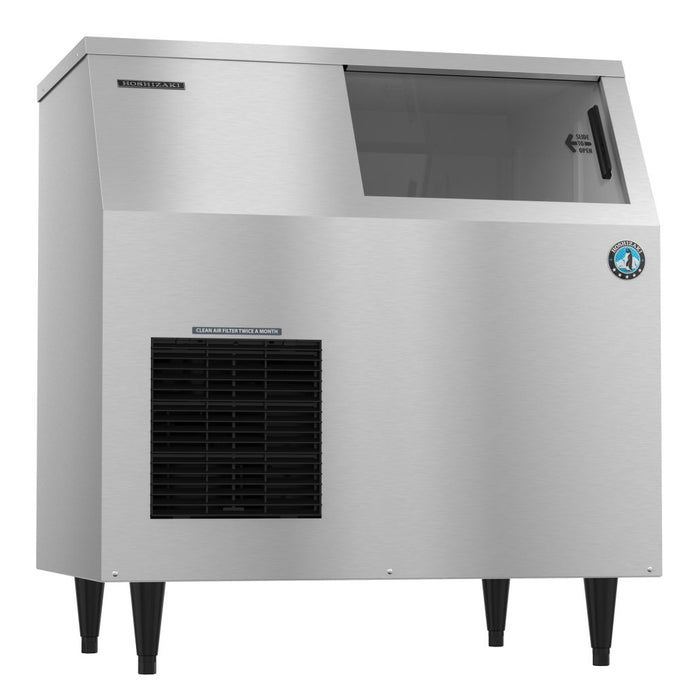

Hoshizaki - F-500BAJ - Flaker Icemaker, Air-cooled, Built in Storage Bin

Hoshizaki - F-500BAJ - Flaker Icemaker, Air-cooled, Built in Storage Bin
Hoshizaki - F-500BAJ - Flaker Icemaker, Air-cooled, Built in Storage Bin

Hoshizaki - F-500BAJ - Flaker Icemaker, Air-cooled, Built in Storage Bin

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Up to 536 lbs of ice produced per 24 hours Produces flaked ice Durable stainless steel exterior Front in, front out airflow Gear motor protected from overload Automatic system flush when bin control is activated Designed for long life dependability.

Features

The F-500BAJ is capable of producing approximately 536 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Air-cooled, Self Contained, Built in Storage Bin icemaker stores up to 170 lbs of ice*. It features an Automatic system flush when bin control is activated plus a greaseless bearing auger construction making it simple to maintain. The F-500BAJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection. Front in, front out airflow. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.



  • Durable stainless steel exterior
  •  Advanced CleanCycle24TM design
  •  Stainless steel auger with greaseless
  •  bearing

Specifications

Overview

  • Nominal Height:
    42" (106.68 cm)
  • Nominal Width:
    38.12" (96.82 cm)
  • Nominal Length:
    29.12" (73.96 cm)
  • Capacity:
    5.7

Technical Data

  • Weight:
    265 lbs
  • Warranty:
    Three Years
  • Electrical Specs:
    Single phase, 115v/60/1, 3 wire, including ground.
  • Electrical Specs-Amperage:
    13.8, Max Fuse (Must be hardwired at site, no cord/plug included)
  • Electrical Specs-HACR Breaker:
    20 A (Must be hardwired at site, no cord/plug included)
  • Electrical Specs-kWh Usedper 100 lbs. 90°/ 70°F:
    5.05
  • Plumbing Specs:
    1/2" FPT Inlet
  • Plumbing Specs- Icemaker Water Supply Line:
    Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent,
  • Plumbing Specs- Icemaker Drain Line:
    3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
  • Utility Consumption:
    5.05 kWh per 100 lbs @ 90/70
  • Utility Consumption:
    12 gal of Potable Water per 100 lbs @ 90/70
  • Operating Limits-Ambient Temp Range:
    45 - 100°F
  • Operating Limits-Water Temp Range:
    45 - 90°F
  • Operating Limits- Water Pressure:
    10 - 113psig
  • Operating Limits-Voltage Range:
    104 - 127V
  • Operating Limits-Heat Rejection:
    2500 BTU/hr
  • Operating Limits-Refrigerant Charge:
    R-404A, (1 lbs. 0.6 oz. / 470 g)
  • Five Years:
    Parts warranty on Compressor, air-cooled condenser coil.
  • Flaked Dimensions:
    1”
