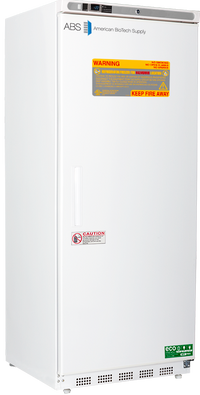

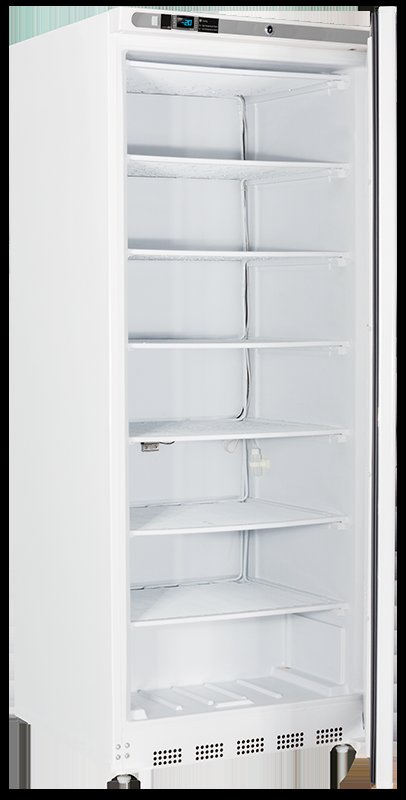

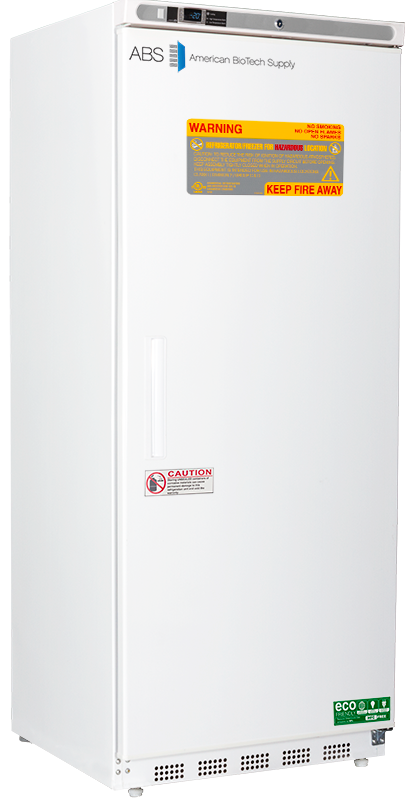

American Biotech Supply - ABT-HC-EFP-20 - 20 Cu. Ft. Capacity Standard Hazardous Location Freezer

American Biotech Supply - ABT-HC-EFP-20 - 20 Cu. Ft. Capacity Standard Hazardous Location Freezer
American Biotech Supply - ABT-HC-EFP-20 - 20 Cu. Ft. Capacity Standard Hazardous Location Freezer

American Biotech Supply - ABT-HC-EFP-20 - 20 Cu. Ft. Capacity Standard Hazardous Location Freezer

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Hazardous location freezers meet NFPA and OSHA guidelines for Hazardous Location, Class 1, Division II, Groups A,B,C & D guidelines. These units utilize non-sparking and/or ATEX rated components and are engineered for use in environments where volatile/explosive conditions could potentially exist. Models feature a microprocessor temperature controller, allowing for precise temperature control, recovery and maintenance versus mechanical style thermostats. Our Standard Series freezers run on natural, hydrocarbon refrigerant for environmental health and energy efficiency. For storage of flammable or volatile materials within typical laboratory or non-volatile environments, see Flammable Material Storage units.

Features

Our Hazardous Location Freezers meet NFPA and OSHA guidelines for Hazardous Location, Class 1, Division II, Groups A,B, C & D guidelines. These units are engineered for use in environments where volatile / explosive conditions could potentially exist.  For storage of flammable or volatile materials within typical laboratory or non-volatile environments, see Flammable Material Storage units.



Utilizes ATEX and non-sparking components for safety. Models feature a microprocessor temperature controller, allowing for precise temperature control, recovery and maintenance versus mechanical style thermostats.



Models utilize environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) which vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.



Please Note: Not equipped with plug; must be hardwired in conduit.

Specifications

Overview

  • Nominal Height:
    74.63" (189.56 cm)
  • Nominal Width:
    30.75" (78.11 cm)
  • Nominal Length:
    29" (73.66 cm)
  • Internal Width:
    25.88" (65.74 cm)
  • Internal Length:
    21.75" (55.25 cm)
  • Capacity:
    20

General Description and Application

  • Door:
    Right Hinged
  • Shelves:
    6 Fixed
  • Freezer Compartments:
    Non-applicable
  • Baskets:
    Non-applicable
  • Mounting:
    Leveling Legs
  • Interior Lighting:
    Non-applicable
  • Airflow Management:
    Non-applicable
  • External Probe Access:
    Non-applicable
  • Insulation:
    Cabinet is foamed-in-place with EPA compliant high density urethane foam
  • Exterior Materials:
    White powder coated steel
  • Access Control:
    Keyed door lock
  • General Warranty:
    Two (2) year parts and labor warranty
  • Warranty Disclaimer:
    Products require 4" of clearance around back and sides of the unit for proper ventilation - improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
  • Product Weight (lbs):
    225
  • Shipping Weight (lbs):
    250
  • Rated Amperage:
    5.5 Amps
  • Power Plug/Power Cord:
    Power cord is not included - final power connections at site must be hardwired to meet local codes
  • Facility Electrical Requirement:
    115V, 60 Hz
  • Agency Listing And Certification:
    ETL, C-ETL listed and certified to UL471 standard, hydrocarbon refrigerant safety, Energy Star Certified. Units meet NFPA and OSHA guidelines for Hazardous Location, Class 1, Division II, Groups A,B,C & D guidelines.

Refrigeration System

  • Refrigerant:
    R290
  • Defrost:
    Manual

Controller, Configuration, Alarms and Monitoring

  • Controller Technology:
    Microprocessor temperature controller with digital temperature display, °C/°F switchable
  • Display Technology:
    Standard Digital Temperature Display
  • Adjustable Temperature Range:
    -15°C to -25°C
  • External Alarm Connection:
    State switching remote alarm contacts
  • Alarms:
    Audible and visual high and low temperature alarms
  • Controller Probe:
    Non-applicable
  • Digital Communication:
    Non-applicable
  • Data Transfer:
    Non-applicable
