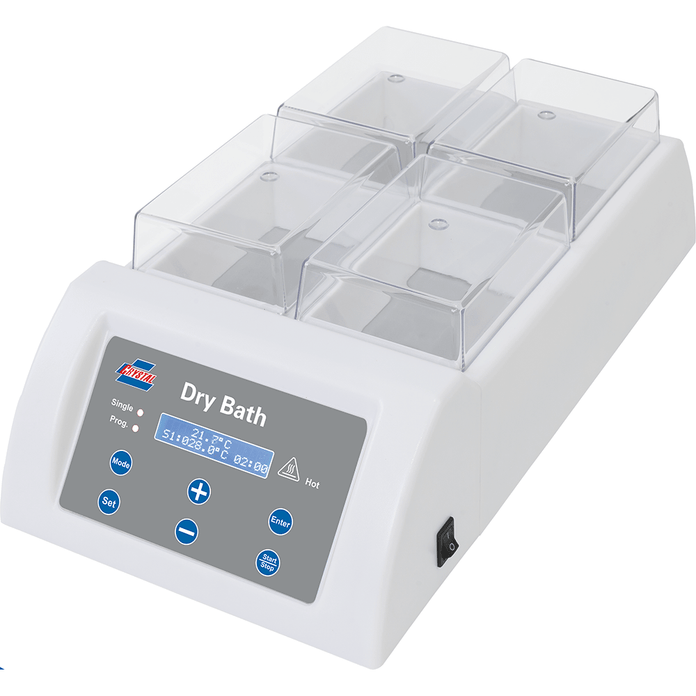

Crystal Industries - DB-04A - Digital Dry Baths
Features
Digital Dry Baths are microprocessors controlled with an automatic PID temperature control program that provides an accurate and uniform temperature distribution across the thermal block. Digital Dry Baths are ideal for a wide variety of life science, clinical, and general chemistry applications. Features accurate and stable temperatures. The Multi-Block Dry Baths are used in various applications including enzyme reactions, inactivation of sera, Rh studies, blood cross-matching, and cholesterol determinations.
- High-quality heating elements provide excellent temperature uniformity
- Overheating alarm and automatic shut off feature
- A wide variety of aluminum tube/plate blocks are available
- Indicator light shows when the bath is >60°C
- Programmable function allows for multiple temperature control points (For models DB-01A, DB-03A, and DB-04A)
- Set to run continuously or set a timer up to 99 hours 59 minutes (For models DB-01A, DB-03A, and DB-04A)
Specifications
Overview
-
Nominal Height:4.4" (11.18 cm)
-
Nominal Width:8.7" (22.1 cm)
-
Nominal Length:16.9" (42.93 cm)
Technical Data
-
Temperature Range:Ambient +5°C ~ 120°C
-
Temperature Accuracy:±0.1°C
-
Temperature Stability:@50~100°C ≤±0.15°C, @100.1~120°C ≤±0.2°C
-
Temperature Uniformity:@37°C ±0.5°C
-
Heat Up Time:20°C to 120°C, ≤25 min
-
Timer:0~99 hr 59 min or Continuous
-
Programmable:6 Segments
-
Number of Block Chambers:4
-
Block Chamber Dimensions:118 x 78 x 40 mm (4.6 x 3.1 x 1.6 inch)
-
Accessory Included in Standard Packaging:4 x DBA05 Insulating Cover
-
Ambient Temperature:5°C ~ 40°C
-
Ambient Relative Humidity:≤85%
-
Power Supply:AC110V±11V, 60Hz
-
Max Power:300 W
-
Net Weight:4.5 kg (9.9 lb)
-
Protection Level:IP21
-
Certifications:CE, RoHS, WEEE
