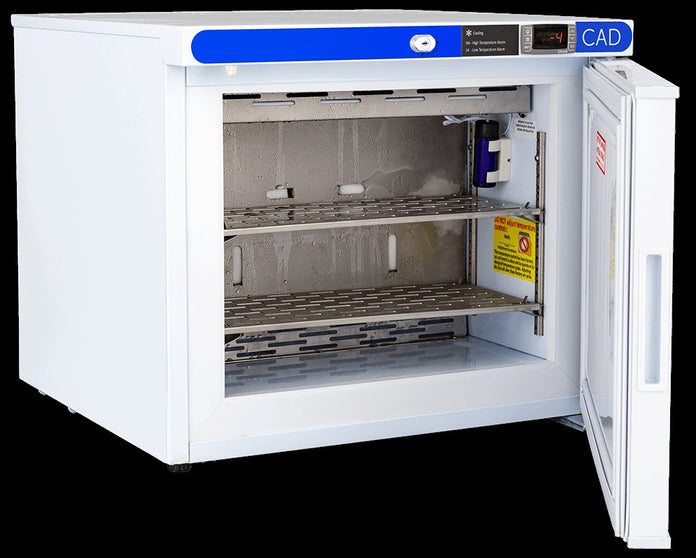

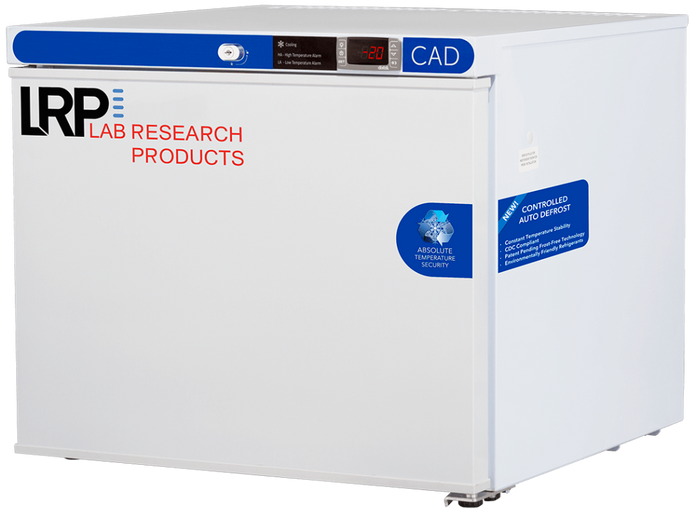

Lab Research Products - PH-LRP-HC-UCFS-0120A-CAD - 1 Cu. Ft. Pharmacy Countertop Controlled Auto Defrost Freezer Freestanding

Features
Our proprietary "Controlled Auto Defrost" technology provides the convenience of an auto-defrost design while still ensuring that vaccines remain at consistent and stable temperatures below 5°F (-15°C)
Details
- 2 adjustable shelves
- Vaccine storage power cord warning label
- Keyed door lock
- Magnetic door gasket for positive seal
- Leveling legs
- HFC-free refrigerant (R600a), foam insulation and packaging
- Pharmacy refrigerator/freezer toolkit and temperature logs
- Two year parts and labor warranty, plus an additional three year compressor parts only warranty
Temp Controller
- Microprocessor temperature controller
- Digital temperature display with sample simulated probe
- Audible and visual high and low temperature alarms
- Remote alarm contacts
- Operating temperature range: 5°F - -13°F (-15°C - -25°C)
- Defrost
- Auto defrost cycle every 6 hours: (at Set Point -11°F /-24°C)
- Max air temp in empty freezer: 5°F (-15°C)
- Max air temp in loaded freezer: 3°F (-16°C)
- Max sample temp in empty freezer: 0°F (-18°C)
- Max sample temp in loaded freezer: -4°F (-20°C)
- Temperature monitor device (TMD) complies with the current CDC guidelines, with 3 years certification of calibration, "buffered" probe in the product simulated solution, min/max memory, F/C switchable, field installable, and visual & audible temp alarm
Specifications
Overview
-
Nominal Height:20.38" (51.77 cm)
-
Nominal Width:23.75" (60.33 cm)
-
Nominal Length:24" (60.96 cm)
-
Internal Height:12.38" (31.45 cm)
-
Internal Width:17.75" (45.09 cm)
-
Internal Length:7.5" (19.05 cm)
-
Capacity:1
Technical Data
-
Defrost:Controlled Auto
-
Door:1 Solid
-
Int Door:0
-
Shelves:2Adj
-
Refrigerant:R600a
-
H.P.:1/8
-
Amps:1
-
Weight:80 lbs.
Drawings
-
PH-LRP-HC-UCFS-0120A-CAD Ext Cut SheetVisit Link
-
PH-LRP-HC-UCFS-0120A-CAD Int Cut SheetVisit Link
Useful Links
-
PH-LRP-HC-UCFS-0120A-CAD Spec SheetVisit Link
