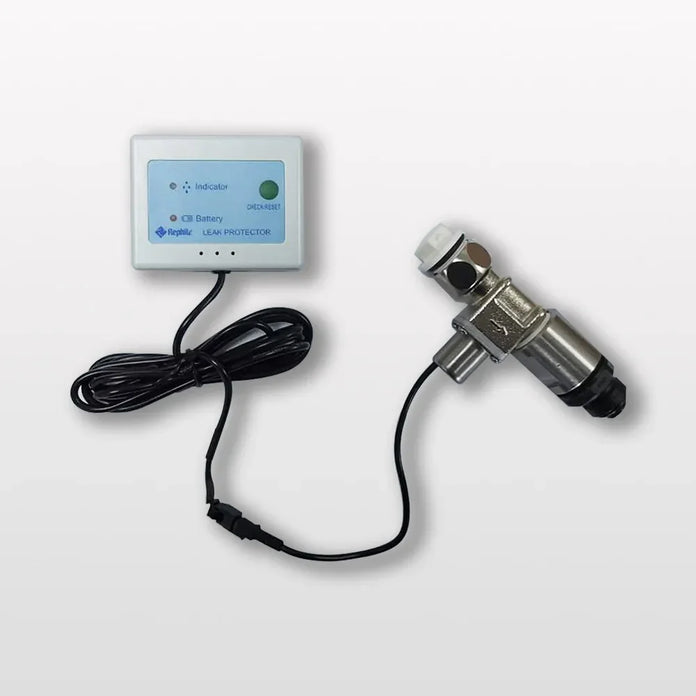

Leak protector is equipped with automatic water shutoff valve of feed water to prevent damage to the lab should unpredicted happens. The unit is battery operated, does not require external power.

Features

Leak protector is equipped with automatic water shutoff valve of feed water to prevent damage to the lab should unpredicted happens. The unit is battery operated, does not require external power.



Key Features



  • Auto valve shut off and sound alarm when water leak is detected
  • 9V alkaline battery operated
  • Auto valve shut off and alarm at low battery
  • Easy installation to the 3/8 inch or 8 mm quick connectors



Suitable for Genie water systems



  • Genie G
  • Genie U
  • Genie A
  • Genie E
  • Genie R

Specifications

Overview

Product Specifications

  • Operating Voltage:
    9 V DC
  • Working Current:
    Typical 1.0 mA, maximum 15.0 mA
  • Cable Length:
    1.5 M to solenoid valve
  • Fitting:
    8 mm quick connector on 1/2" male BSP
  • Method Of Water Leak Detection:
    Conductivity. Put the control unit on the floor near the water purification system
  • Operating Temperature:
    -20～80°C
  • Maximum Inlet Pressure:
    6 bar (90 psi)
