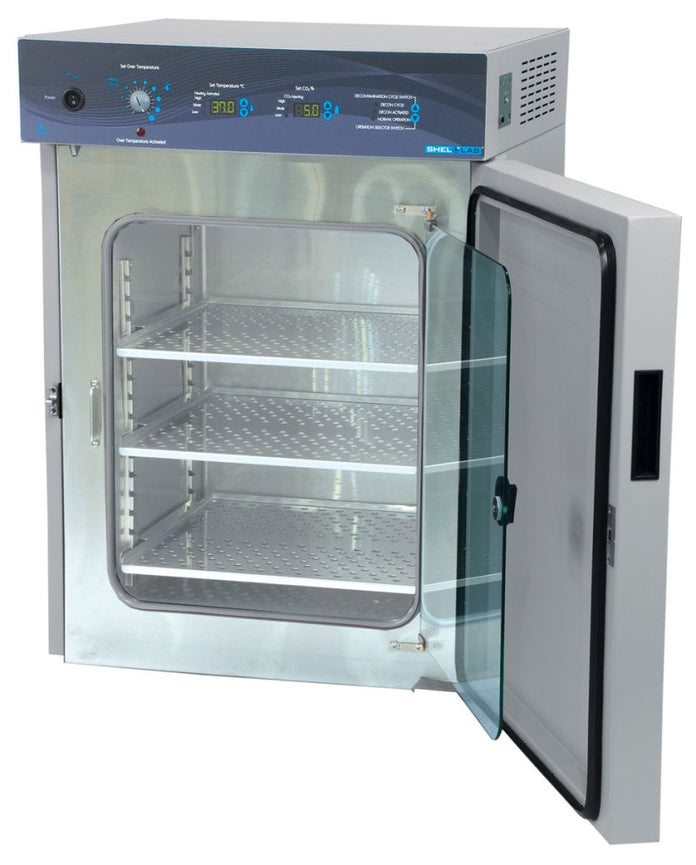

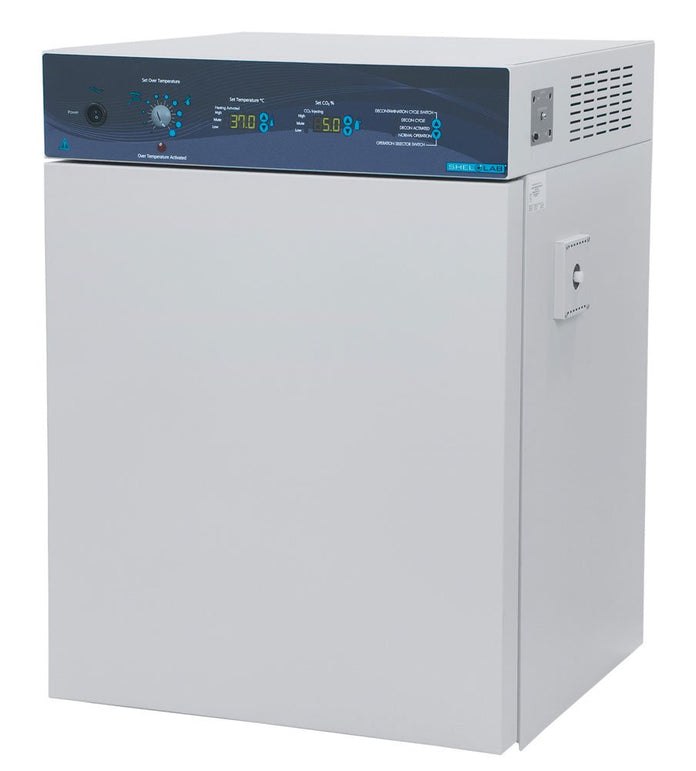

Sheldon - SCO6AD - CO2 Incubator, AJ, 5.9 Cu.ft, High Heat Decon, HEPA, 115V

Features
Model SCO6AD features the ultimate in contamination control. This unit is ideal for cell culture labs where contamination can result in significant losses of both time and money. The SCO6AD boasts the most effective decontamination cycle on the market - dry heat for two hours at 180°C. This time/temperature relationship satisfies all global standards for decontamination. Plus, the overall decontamination cycle (heat up to cool down) is the fastest on the market, so users will have minimal downtime on their SCO6AD. In addition, there is no need to remove sensitive components prior to running the decontamination cycle.
Standard Design Features
- Infrared (IR) CO2 Sensor is extremely quick to recover CO2 levels after door openings and ensures superior pH stability.
- Unique air jacket design provides excellent temperature uniformity of +/-0.25°C at 37°C.
- Humidity levels maintained through evaporation of up to 95%
- Data logging capabilities
Designed to minimize contamination
- The fastest high heat decontamination cycle on the market without having to remove critical components
- Heated door to ensure superior temperature uniformity and also reduce the potential for condensation to form on the inner glass door
- Durable stainless steel chamber with coved corners for easy cleaning
- Exclusive heated copper CO2 inlet not only promotes temperature uniformity but also prevents moisture from being introduced into the chamber
- Copper shelving option
- Autoclavable shelving system
- Industry best warranty - 5 years parts and labor in the USA, 7 years on the IR sensor
Specifications
Overview
-
Nominal Height:39.5" (100.33 cm)
-
Nominal Width:28.5" (72.39 cm)
-
Nominal Length:30.8" (78.23 cm)
-
Internal Height:25.5" (64.77 cm)
-
Internal Width:20.2" (51.31 cm)
-
Internal Length:20" (50.8 cm)
-
Capacity:5.9
Technical Data
-
Shelf Dimensions (W x D):19.1 x 19.1 (485 mm x 485 mm)
-
Unit Weight:238 lbs (108 kg)
-
Interior Metal:300 SST
-
Exterior Metal:Painted Cold Roll Steel
-
Operating Temperature Range:Amb +5°C - 50°C
-
Temperature Uniformity - Midrange:0.25°C
-
Temperature Stability - Midrange:0.1°C
-
Controller Type:Digital
-
Display Resolution:0.1°C
-
Power Voltage, Frequency and Current:110-120 VAC, 50/60 Hz, 12.0 Amps
-
Safety Certifications:UL 61010-1, EN 61010-1, CSA 61010-1, CE
-
Interior Construction:300 series stainless steel
-
Exterior Construction:20 gauge steel, powder coated
-
Shelves (See Accessories):3 standard, 8 total
-
Maximum Weight Per Shelf:35 lb/15.8 kg
-
Permitted Total Load:105 lb/47.6 kg
Selection
-
Voltage:110V-120V
-
Full Load Amps:12
-
Nominal Power (watts @37°C):130
-
Recommended Breaker, Amps:15
-
Power Cord Supplied:NEMA5-15P
-
CO2 Range:1-20%
-
Recovery CO2 at 5%:< 5min.
-
Sensor Type Infrared:Infrared
-
Temperature Uniformity-At 37°C:± 0.25°C
-
Humidity Range Passive (Ambient 95%):Yes
-
Temperature Range Recovery 37°C:Recovery to 37°C after 30 sec, Door Opening 6.0 min.
Accessories
-
Stacking Stand:9000599
-
Caster Platform:9000574
-
Copper Shelf Package (Includes 3 Copper Shelves, 6 Copper Shelf Slides):9750582
-
Extra Shelf, Copper, Max Weight 35 lb (15.8 kg):5820504
-
Extra Slide, Copper, 2 Required Per Shelf:5820505
-
Extra Stainless Steel Shelf and Slide Kit, Max. Weight 35 lb (15.8 kg):9751235
-
Extra Shelf, Reinforced, Max. Weight 50 lb (22.7 kg):912-975-0004
-
Extra Standard, Stainless Steel, 2 Required Per Shelf:5170646
-
Extra Slide, Stainless Steel, 2 Required Per Shelf:5121028
