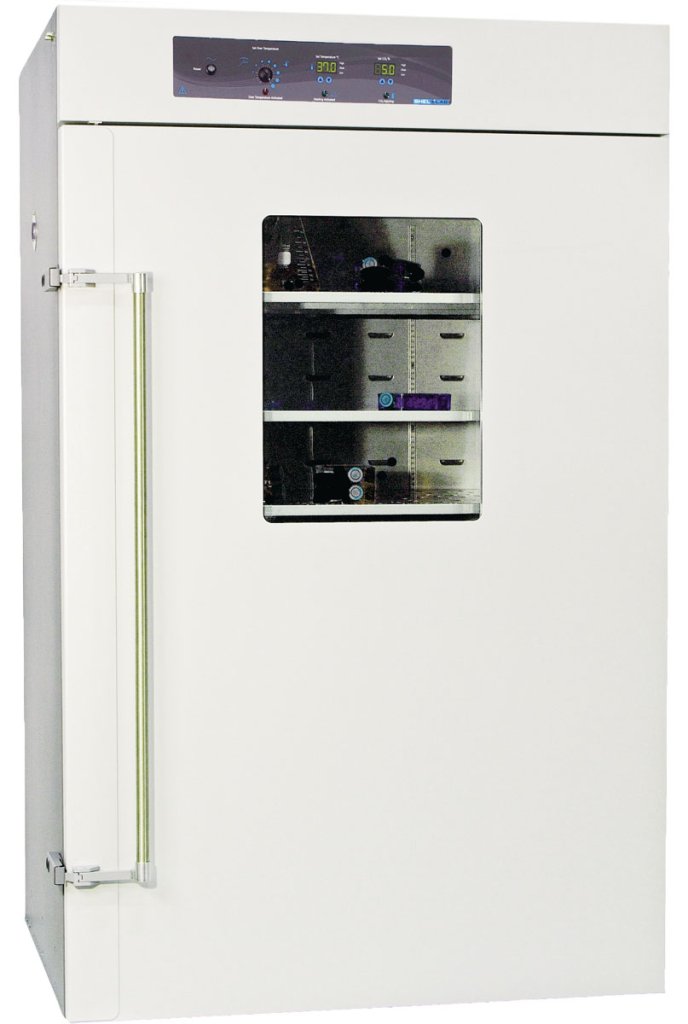

Sheldon - SCO58 - CO2 Dry Incubator, 58 Cu.ft, 115V

Sheldon - SCO58 - CO2 Dry Incubator, 58 Cu.ft, 115V

Sheldon - SCO58 - CO2 Dry Incubator, 58 Cu.ft, 115V

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
SHEL LAB CO2 Incubators serve a wide range of bacterial and cell growth applications using innovative technology to ensure uniform temperature and humidity levels within small error margins.

Features

Model SCO58 large capacity CO2 incubator is ideal for roller bottle apparatus and high-volume tissue culture applications and cell harvesting. It provides a precisely controlled, accurate, pure environment throughout the culturing process. Also available in a 31 cu.ft./879 L (Model SCO31) and 40 cu.ft./1125 L size (Model SCO40). Includes a two-year limited warranty.


Standard Design Features


  • Infrared (IR) CO2 Sensor is extremely quick to recover CO2 levels after door openings and is not affected by temperature or humidity levels
  • Unique air jacket design provides excellent temperature uniformity of +/-0.5°C at 37°C
  • Ideal for roller bottle apparatus, includes a flip-out ramp
  • Corrosion resistant, easily cleanable stainless steel chamber
  • Viewing window in door
  • 1 amp interior electrical outlets

Specifications

Overview

  • Nominal Height:
    81" (205.74 cm)
  • Nominal Width:
    51" (129.54 cm)
  • Nominal Length:
    44.8" (113.79 cm)
  • Internal Height:
    67.5" (171.45 cm)
  • Internal Width:
    43" (109.22 cm)
  • Internal Length:
    34.5" (87.63 cm)
  • Capacity:
    58

Technical Data

  • Shelf Dimensions (W x D):
    42.5 x 34.0 (1080 mm x 889 mm)
  • Unit Weight:
    950 lbs (430.9 kg)
  • Interior Metal:
    300 SST
  • Exterior Metal:
    Painted Cold Roll Steel
  • Operating Temperature Range:
    Amb +8°C - 60°C
  • Temperature Uniformity - Midrange:
    0.5°C
  • Temperature Stability - Midrange:
    0.2°C
  • Controller Type:
    Digital
  • Display Resolution:
    0.1°C
  • Power Voltage, Frequency and Current:
    110-120 VAC, 50/60 Hz, 15.0 Amps
  • Safety Certifications:
    UL 61010-1, EN 61010-1, CSA 61010-1, CE
  • Interior Construction:
    300 series stainless steel
  • Exterior Construction:
    20 gauge steel, powder coated
  • Shelves (See Accessories):
    6 standard, 30 total
  • Maximum Weight Per Shelf:
    50 lb/22.7 kg
  • Permitted Total Load:
    300 lb/136.1 kg

Selection

  • Voltage:
    110V-120V
  • Full Load Amps:
    15.0
  • Nominal Power (watts @37°C):
    385
  • Recommended Breaker, Amps:
    20
  • Power Cord Supplied:
    NEMA5-20P
  • CO2 Range:
    1-20%
  • Recovery CO2 at 5%:
    < 5min.
  • Sensor Type:
    Infrared
  • Temperature Recovery 37°C:
    Recovery to 37°C After 30 sec, Door Opening 7.0 min.
  • Temperature Recovery 37°C At 37°C:
    ± 0.5°C
  • Temperature Range Ambient +8°C to 60°C:
    Yes

Accessories

  • Caster Platform:
    9000585
  • Chart Recorder Option:
    912-950-0011
  • Extra Shelf, Stainless Steel, Max. Weight 50 lb (22.7 kg):
    995-00014
  • Extra Shelf Clips, 4 Required Per Shelf:
    1250512
