Sheldon - SCO31 - CO2 Dry Incubator, 31 Cu.ft, 115V

Sheldon - SCO31 - CO2 Dry Incubator, 31 Cu.ft, 115V
Sheldon - SCO31 - CO2 Dry Incubator, 31 Cu.ft, 115V

Sheldon - SCO31 - CO2 Dry Incubator, 31 Cu.ft, 115V

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
SHEL LAB CO2 Incubators serve a wide range of bacterial and cell growth applications using innovative technology to ensure uniform temperature and humidity levels within small error margins.

Features

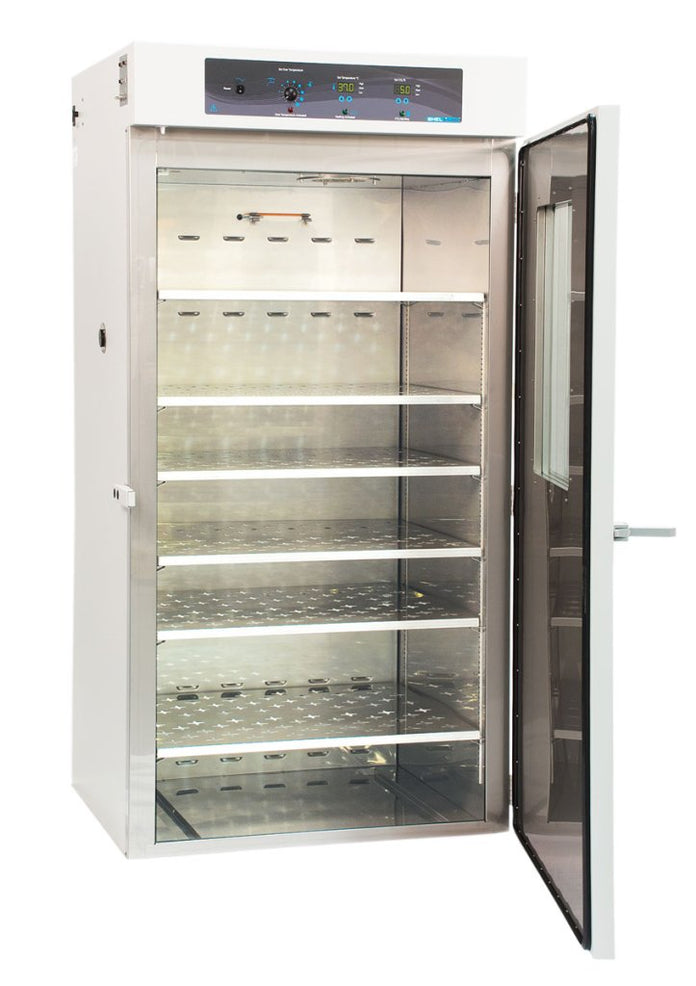

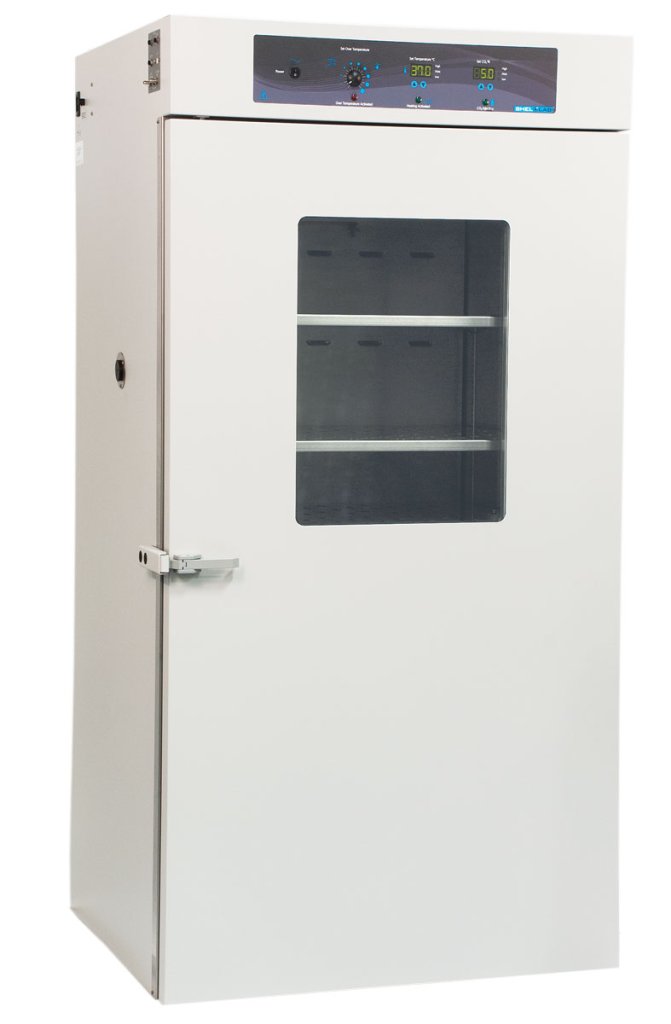

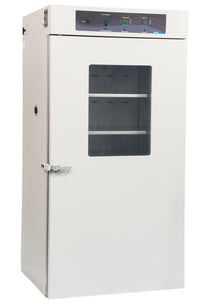

Model SCO31 large capacity dry CO2 incubator is ideal for roller bottle apparatus and high-volume tissue culture applications and cell harvesting. It provides a precisely controlled, accurate, pure environment throughout the culturing process. Also available in a 40 cu.ft./1125 L size (Model SCO40) and 58 cu.ft./1641 L size (Model SCO58). Includes a two-year limited warranty.


Standard Design Features


  • Infrared (IR) CO2 Sensor is extremely quick to recover CO2 levels after door openings and is not affected by temperature or humidity levels
  • Unique air jacket design provides excellent temperature uniformity of +/-0.5°C at 37°C
  • Ideal for roller bottle apparatus includes a flip-out ramp
  • Corrosion resistant, easily cleanable stainless steel chamber
  • Viewing window in door
  • 1 interior electrical outlet

Specifications

Overview

  • Nominal Height:
    76.2" (193.55 cm)
  • Nominal Width:
    39.6" (100.58 cm)
  • Nominal Length:
    33.7" (85.6 cm)
  • Internal Height:
    63.3" (160.78 cm)
  • Internal Width:
    32.9" (83.57 cm)
  • Internal Length:
    26.1" (66.29 cm)
  • Capacity:
    31.4

Technical Data

  • Shelf Dimensions (W x D):
    32.4 x 25.0 (823 mm x 638 mm)
  • Unit Weight:
    500 lbs (226.8 kg)
  • Interior Metal:
    300 SST
  • Exterior Metal:
    Painted Cold Roll Steel
  • Operating Temperature Range:
    Amb +8°C - 60°C
  • Temperature Uniformity - Midrange:
    0.5°C
  • Temperature Stability - Midrange:
    0.1°C
  • Controller Type:
    Digital
  • Display Resolution:
    0.1°C
  • Power Voltage, Frequency and Current:
    110-120 VAC, 50/60 Hz, 14.5 Amps
  • Safety Certifications:
    UL 61010-1, EN 61010-1, CSA 61010-1, CE
  • Interior Construction:
    300 series stainless steel
  • Exterior Construction:
    20 gauge steel, powder coated
  • Shelves (See Accessories):
    6 standard, 30 total
  • Maximum Weight Per Shelf:
    50 lb/22.7 kg
  • Permitted Total Load:
    300 lb/136.1 kg

Selection

  • Voltage:
    110V-120V
  • Full Load Amps:
    14.5
  • Nominal Power (watts @37°C):
    321
  • Recommended Breaker, Amps:
    15
  • Power Cord Supplied:
    NEMA5-20P
  • CO2 Range:
    1-20%
  • Recovery CO2 at 5%:
    < 5min.
  • Sensor Type:
    Infrared
  • Temperature Recovery 37°C:
    Recovery to 37°C After 30 sec, Door Opening 8.0 min.
  • Temperature Uniformity At 37°C:
    ± 0.5°C
  • Temperature Range Ambient +8°C to 60°C:
    Yes

Accessories

  • Caster Platform:
    9000591
  • Chart Recorder Option:
    912-950-0014
  • Extra Shelf, Stainless Steel, Max. Weight 50 lb (22.7 kg):
    995-00003
  • Extra Shelf, Reinforced, Max Weight 75 lb (34.0 kg):
    912-975-0006
  • Extra Shelf Clips, 4 Required Per Shelf:
    1250512
