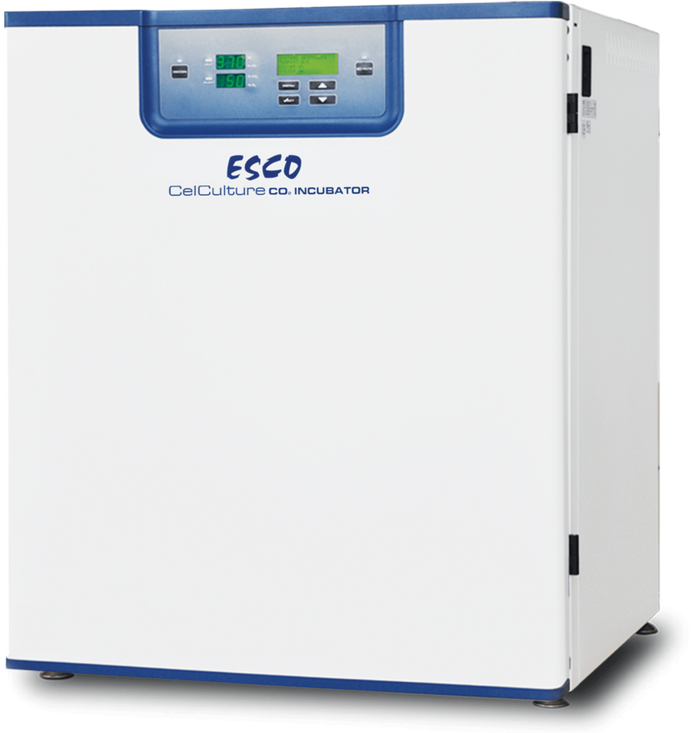

ESCO - CCL-240B-9 - CelCulture® CO₂ Incubator IR Sensor Model With Stainless Steel Chamber

ESCO - CCL-240B-9 - CelCulture® CO₂ Incubator IR Sensor Model With Stainless Steel Chamber

ESCO - CCL-240B-9 - CelCulture® CO₂ Incubator IR Sensor Model With Stainless Steel Chamber

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
CelCulture® Incubator 240L IR Sensor CO2 Control, ULPA, 90°C Moist Heat Decon, 115VAC, 50/60 Hz.

Features

True leaders rise above the ordinary. Such a statement does not only hold true in the entrepreneurial world, but also in the scientific world. At any aspect of a scientific study, researchers and scientists aspire to discover, innovate, and lead. This is why Esco builds top-of-the-line equipment for every laboratory. We believe that science is meant to lead, motivate, and inspire humanity.



Thus, we present to you the sleek, reliable and intuitive Esco CelCulture® CO2 incubator, designed to bring out the leader in every cell culture laboratory. It provides all-rounded sample protection that brings your scientific dreams one step closer to reality. Various options are available.



Applications:



  • Neuroscience
  • Stem Cell Research
  • In Vitro Fertilization
  • Tissue Engineering
  • Cancer Research
  • Mammalian Cell Research



Features



Robust Contamination Control

  • SteriSafe™ ULPA filtration ensures air chamber cleanliness
  • SwiftCon™ 90˚C validated moist heat decontamination cycle (15 hours)
  • In-line filters remove gas impurities and contaminants



Direct Heat and Air Jacket

  • Fast and uniform heating
  • Rapid temperature recovery
  • Air jacket improves chamber stability



Shelving

  • Perforated shelving to improve uniformity
  • Anti-tip
  • Stainless steel
  • Built-in grip



Rounded Corners

  • Seamless design
  • Facilitates easier cleaning



CO₂ Sensor

  • IR Sensor
  • Single-beam, dual-wavelength IR sensor is drift-free
  • CARBOCAP® technology makes it stable for a long time and resistant to high heat



Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Specifications

Overview

  • Nominal Height:
    35.4" (89.92 cm)
  • Nominal Width:
    29.5" (74.93 cm)
  • Nominal Length:
    30.3" (76.96 cm)
  • Internal Height:
    24.9" (63.25 cm)
  • Internal Width:
    23.4" (59.44 cm)
  • Internal Length:
    25.2" (64.01 cm)
  • Capacity:
    8.5

General Specifications

  • Temperature Control Method:
    Direct heat & Air Jacket using Microcontroller PI
  • Ambient Temperature Range:
    18 to 32°C (64.4 to 89.6°F)
  • Temperature Range, °C:
    Ambient +5 to 60
  • Temperature Uniformity, °C:
    < ±0.5
  • Temperature Accuracy, °C:
    < ±0.1
  • Temperature Recovery Time (after 30 seconds door opening, 98% from initial value):
    ≤6 minutes
  • CO2 Control System:
    Microcontroller PI
  • CO2 Range, % CO2:
    0-19.5
  • CO2 Accuracy, % CO2:
    ±0.1
  • CO2 Sensor:
    Infrared (IR) Sensor
  • CO2 Recovery Time (after 30 seconds door opening, 98% from initial value):
    Standard Unit ≤6 minutes, Suppressed O2 model ≤10 minutes
  • O2 Control System:
    Microcontroller PI
  • O2 Range, % O2:
    1-18
  • O2 Accuracy, % O2:
    ± 0.1
  • O2 Sensor:
    Zirconia O2 sensor
  • Humidification Method:
    Humidity pan
  • Humidity Range, %RH (at 37 °C):
    85-90
  • Net Weight:
    121 kg (266.8 lbs)
  • Shipping Weight:
    155 kg (341.7 lbs)
  • Shipping Dimensions (W x D x H):
    850 x 850 x 1120 mm (33.5” x 33.5” x 44.1”)
  • Shipping Volume:
    0.79 m3 (28.03 ft3)

Chamber Construction

  • Main Body:
    Electrogalvanized steel with Isocide™ antimicrobial coating (except CCL-SS models with stainless steel exterior)
  • Interior Material:
    Stainless steel, type 304 (except CCL-Cu models with copper interior chamber)
  • Number of Shelves:
    4
  • Maximum Number of Shelves:
    7
  • Shelves Dimensions (W x D x H):
    560 x 585 x 16 mm (22.0” x 23.9” x 0.63”)
  • Maximum Load per Shelf:
    15 kg/shelf (33.1 lbs/shelf)

Electrical Configuration 110-130 VAC, 50/60 Hz

  • Nominal Power at 37°C:
    42.2 W
  • Maximum Power Consumption:
    1727.9 W
  • Full Load Amps:
    13.4 A
