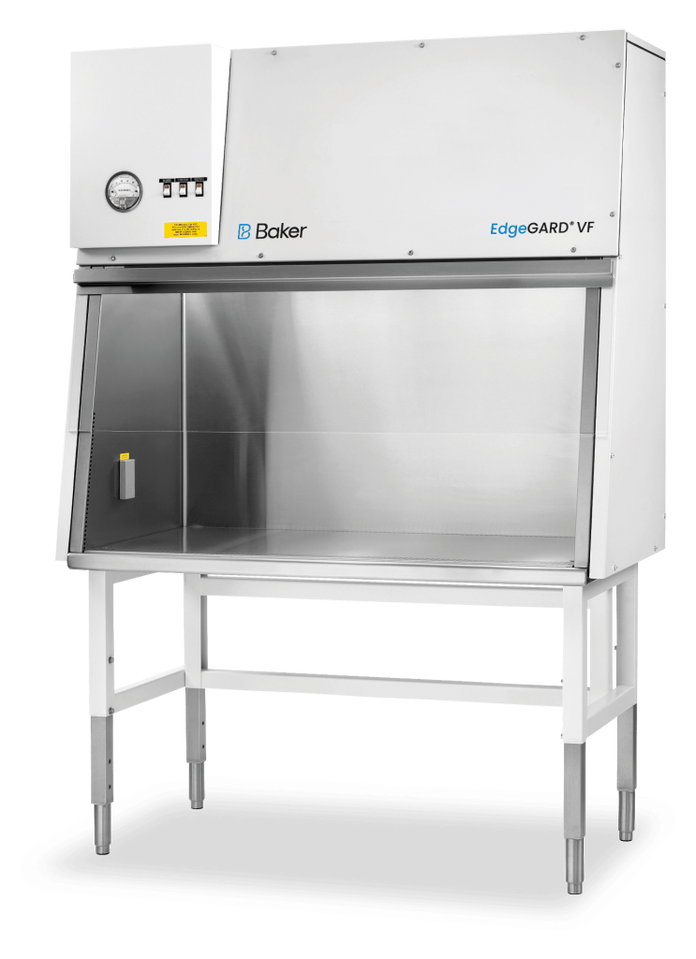

Baker - EGVF601 - 6' EdgeGARD® VF Vertical-Flow Clean Bench

Baker - EGVF601 - 6' EdgeGARD® VF Vertical-Flow Clean Bench

Baker - EGVF601 - 6' EdgeGARD® VF Vertical-Flow Clean Bench

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The EdgeGARD® VF is a vertical-flow recirculating air clean bench that provides protection for samples and work procedures where product protection and particulate control are required.

Features

Clean Benches Designed with You in Mind


The EdgeGARD® VF is a vertical-flow recirculating air clean bench that provides protection for samples and work procedures where product protection and particulate control are required.


  • ISO Class 4 (Class 10) cleanliness (for 0.5 micrometer particles)
  • Built for versatility, productivity, and user comfort
  • Latest extension of the EdgeGARD® clean bench line

Unlike conventional horizontal-flow clean benches, the EdgeGARD® VF provides vertical, uni-directional, and controlled airflow over the entire work surface, while reducing energy consumption, noise, and airflow turbulence.


Recognized as the industry's most reliable clean bench, this extension of Baker's EdgeGARD® brand provides lower life-cycle costs and years of trouble-free operation.

Specifications

Overview

  • Nominal Height:
    97.56" (247.8 cm)
  • Nominal Width:
    77.5" (196.85 cm)
  • Nominal Length:
    32" (81.28 cm)
  • Internal Height:
    31.81" (80.8 cm)
  • Internal Width:
    70" (177.8 cm)
  • Internal Length:
    25.13" (63.83 cm)

Technical Data

  • Nominal Size:
    6'
  • Exterior Dimensions with Stationary Stand (w x d x h [min to max]):
    77.5" x 32.0" x [89.06" - 97.56"]
  • Shipping Weight (Benchtop Model):
    564 lbs
  • Shipping Weight (with Channel Stand):
    646 lbs
  • Access Opening (Working Position):
    14"
  • Access Opening (Loading/Cleaning Position):
    30.38
  • Electrical Requirements:
    115 V, AC
  • Amps / Breaker:
    16 / 20
