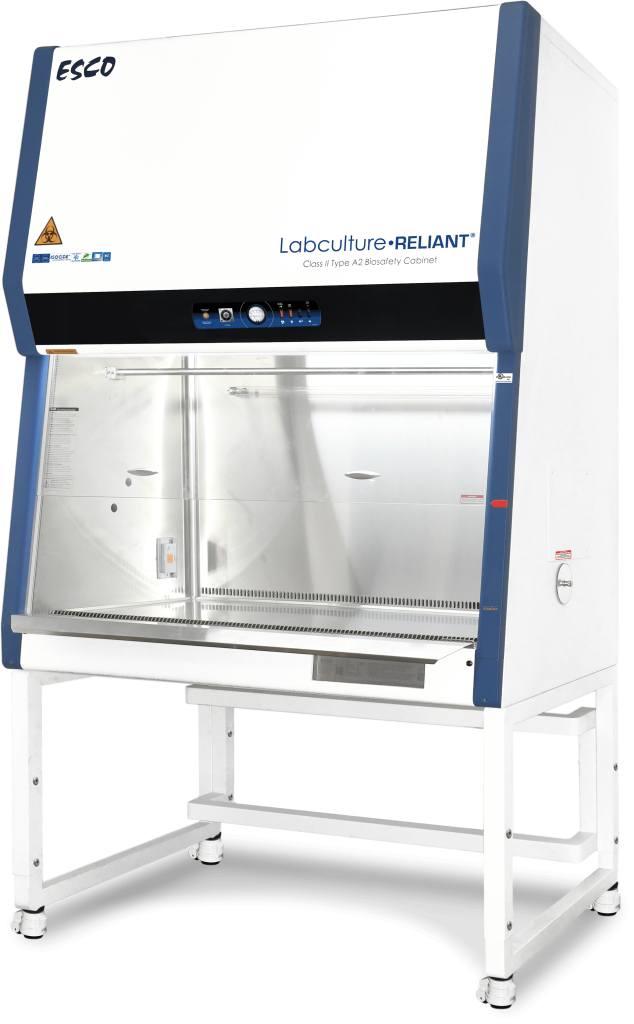

ESCO - LR2-3S9 - Labculture Reliant G4 Class II Type A2 Biological Safety Cabinet

ESCO - LR2-3S9 - Labculture Reliant G4 Class II Type A2 Biological Safety Cabinet

ESCO - LR2-3S9 - Labculture Reliant G4 Class II Type A2 Biological Safety Cabinet

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Labculture® reliant G4 class II type A2 biological safety cabinet, 3ft/0.9m, 8-inch opening.

Features

The new Labculture® Reliant G4 BSC is NSF-certified and available in three sash height openings: 8", 10", and 12" inches, with standby height that easily activates standby mode.



LR2 G4 ergonomic work zone is comprised of bright illumination using industry-leading LED combined with raised, durable, stainless-steel armrest and large, recessed, spill-containing work tray devised for optimum work comfort.



Rocker Switches and Pressure Gauge



  • New and improved controller interface
  • Easy to use switches and displays filter loading status
  • Manually adjustable UV timer



Energy-efficient LED



  • Optimum work zone brightness
  • Ideal light intensity of 1200 lux
  • Saves energy and optimizes work comfort



Ergonomic Sash



  • Available in 8", 10", and 12" sash openings
  • Frameless, shatterproof, and UV-absorbing tempered glass



Tray support beams and holder



  • Support beams for less vibration and holder for easy drain pan cleaning



Cabinet Construction



  • Stainless steel side walls with side capture zones and negative pressure to optimize containment
  • Single-piece work tray, spill retaining and easy to clean



Green Product



  • Equipped with energy-efficient DC ECM that allows up to 70% energy savings vs AC motor Extremely low energy consumption
  • Standby mode allows reduced power consumption by 80%



ULPA Filter



  • 10x filtration efficiency compared to the HEPA filter
  • Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5
  • Same 10 years filter life and replacement cost as HEPA filters



*99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA

*>99.999% at MPPS, H14 as per EN 1822 EU



Isocide™ Antimicrobial Powder Coating



  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Specifications

Overview

  • Internal Height:
    28.3" (71.88 cm)
  • Internal Width:
    36" (91.44 cm)
  • Internal Length:
    24.6" (62.48 cm)

Technical Data

  • Nominal Size:
    0.9 meter (3')
  • External Dimensions (W x D x H) - Without Arm Rest:
    1035 x 815 x 1570 mm (40.8" x 32.1" x 61.8")
  • External Dimensions (W x D x H) - With Arm Rest:
    1035 x 873 x 1570 mm (40.8" x 34.4" x 61.8")
  • Usable Work Area:
    0.47 m2 (5.0 sq.ft.)
  • Sash Opening:
    Available in 203 mm (8")
  • Maximum Sash Opening:
    570 mm (22.5")
  • ULPA Filter Typical Efficiency:
    ≥99.999% for particle size between 0.1 to 0.3 microns
  • Sound Emission (dBA) - NSF/ANSI 49:
    57
  • LED Lamp Light Intensity:
    > 1200 lux (111 ft. cd)
  • Cabinet Construction - Main Body:
    Electro-galvanized steel with white oven-baked epoxy-polyester Isocide™ antimicrobial powder-coated finish, 1.5 mm (0.06")/16 gauge thick
  • Cabinet Construction - Work Zone:
    Stainless steel type 304 with no.4 finish, 1.5 mm (0.06")/16 gauge thick
  • Cabinet Construction - Sash Window:
    6 mm UV-absorving TemPered Glass
  • Net Weight:
    243 Kg (536 lbs)
  • Shipping Weight:
    292 Kg (644 lbs)
  • Shipping Dimensions, Maximum (W x D x H):
    1185 x 890 x 1900 mm (46.7" x 35.0" x 74.8")
  • Shipping Volume Dimensions (W x D x H):
    2.00 m³ (cu.ft.)

Average Airflow Velocity - Airflow Volume

  • Average Airflow Velocity - Inflow:
    0.53 m/s (105 fpm)
  • Average Airflow Velocity - Downflow:
    0.30 m/s (60 fpm)
  • Airflow Volume - Inflow:
    356 m3/h (210 cfm)
  • Airflow Volume - Downflow :
    581 m3/h (345 cfm)
  • Airflow Volume - Exhaust:
    356 m3/h (210 cfm)

Electrical (110-130 VAC, 50/60 Hz)

  • Nominal Power (Watt):
    163
  • Heat Load (BTU/hr):
    556
  • Full Load Amps Exclude 5A EO:
    10 A
  • Optional Outlets FLA:
    5A
