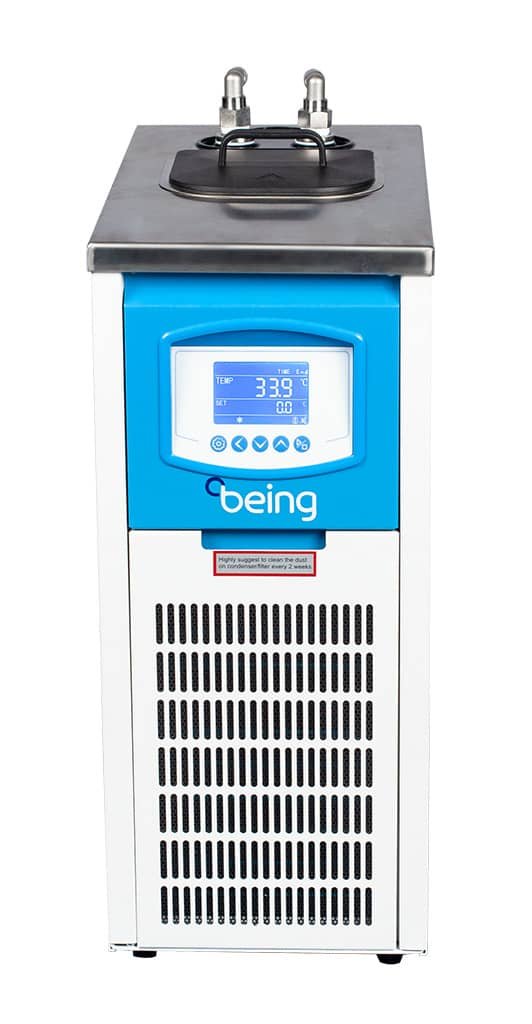

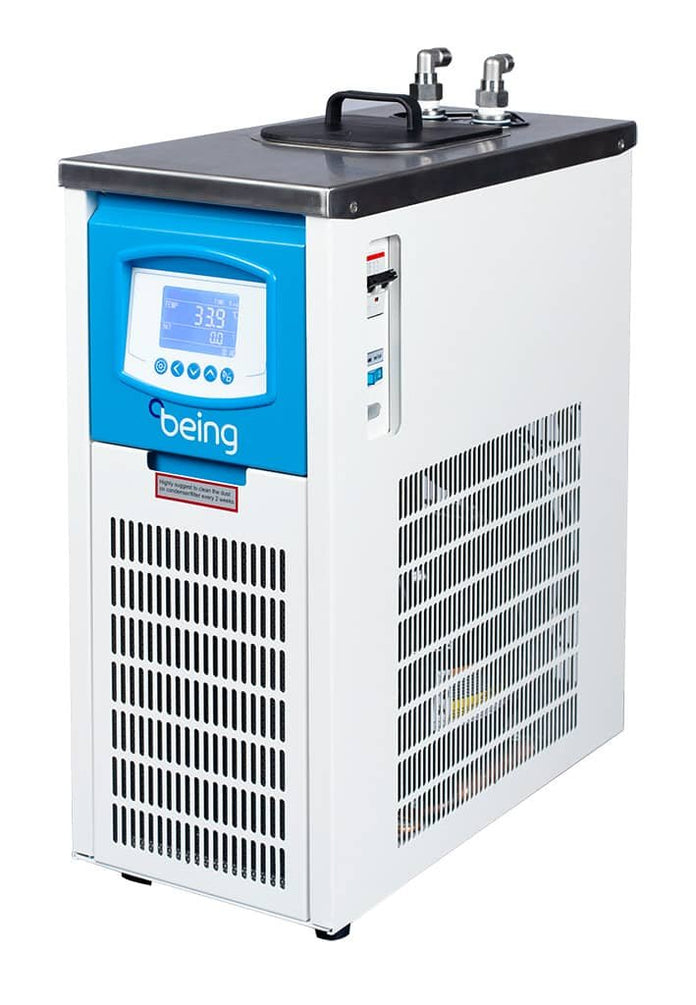

Being - BRC15110U - Recirculating Chiller

Features
The BEING BRC Series cooling/heating recirculating chillers provide continuously reliable and stable laboratory temperature control for a wide range of applications like medical diagnostic equipment, rotary evaporators, vacuum systems, plasma etching, laser etching, and jacketed reactors, to name a few.
Performance and Features
- Designed so that test results are in line with international standards DIN 12880.

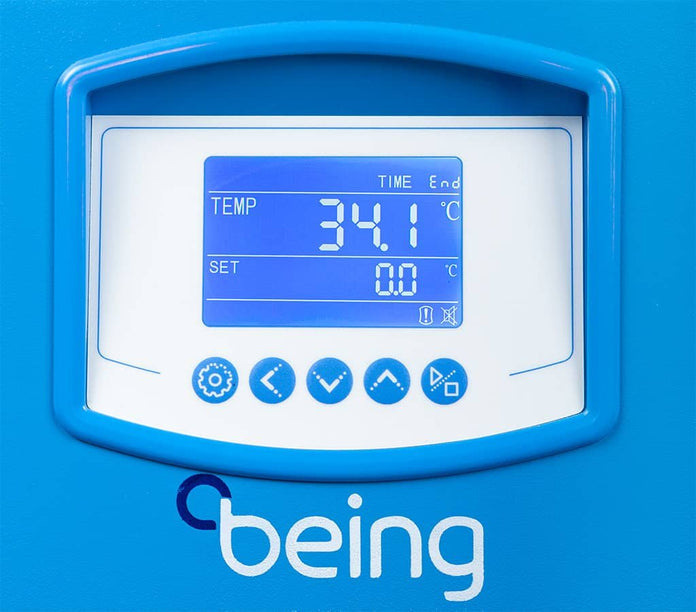

- PID temperature controller with LCD screen provides accurate and reliable temperature control.
- Automatic calibration function, be able to adapt to a variety of laboratory environments.
Convenience
- A product line breadth to meet a variety of needs.
- Wide range of options to meet a variety of experimental needs.
- Temperature/Capacity/Liquid Flow/Pressure/Control Mode/Internal Circulation/External Circulation.
- Convenient design for easy maintenance.
- Round curved inner angle is easy to clean.

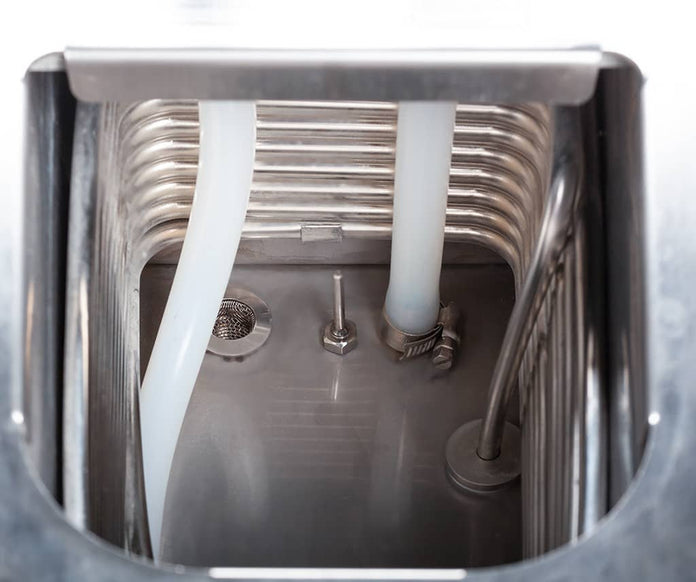

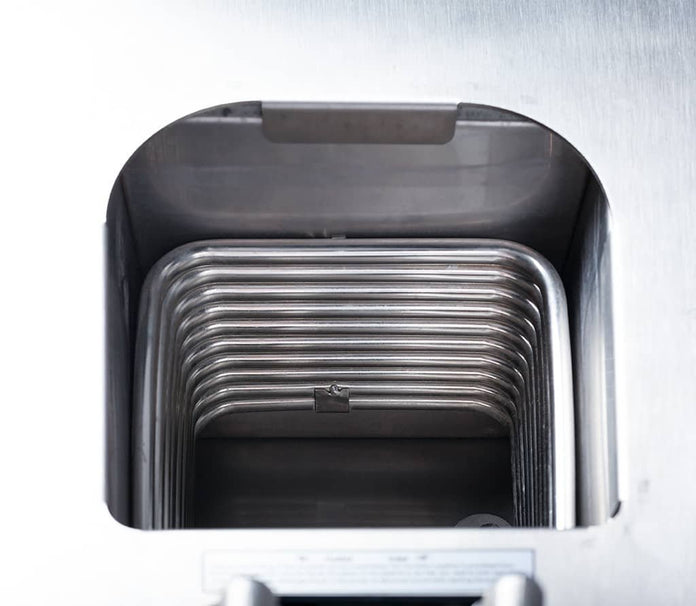

- Inner chamber is made from corrosion-resistant mirror stainless steel.
Safety
- Preset On/Off function.
- Built-in power interruption protection function, automatic run after power interruption.
- Independent over-temperature protection meets DIN 12880 International standard requirements.
- Temperature deviation alarm.
- Over-current protection alarm.
Specifications
Overview
-
Nominal Height:32.1" (81.53 cm)
-
Nominal Width:15.8" (40.13 cm)
-
Nominal Length:19.7" (50.04 cm)
-
Capacity:0.5
Cooling Features
-
Lowest Temp Without Load:-20°C
-
Temperature Range:-20°C to 20°C
-
Temperature Stability:±2°C
-
Cooling Capacity (W) @20°C:1800
-
Cooling Capacity (W) @10°C:1500
-
Cooling Capacity (W) @0°C:1400
-
Cooling Capacity (W) @-10°C:1000
-
Cooling Capacity (W) @-20°C:500
-
Refrigerant:R410A
Pump
-
Pump Type:DC Magnetic Drive Vortex
-
Recirculating Pump Power:60W
-
Pump Flow Rate:17 L/min
-
Max. Pump Head:15 m
-
Pump Max. Pressure:22 psi (152 kPa)
-

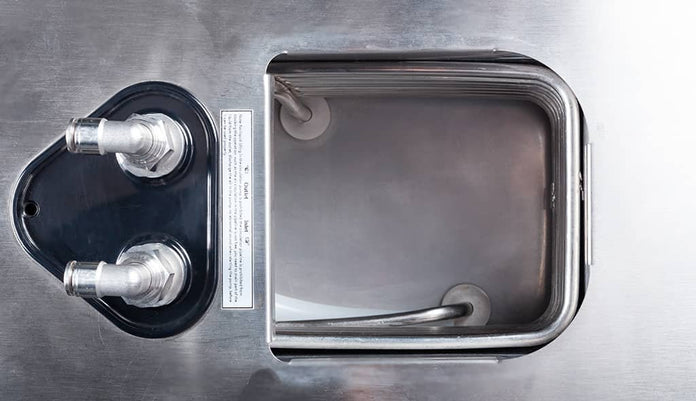

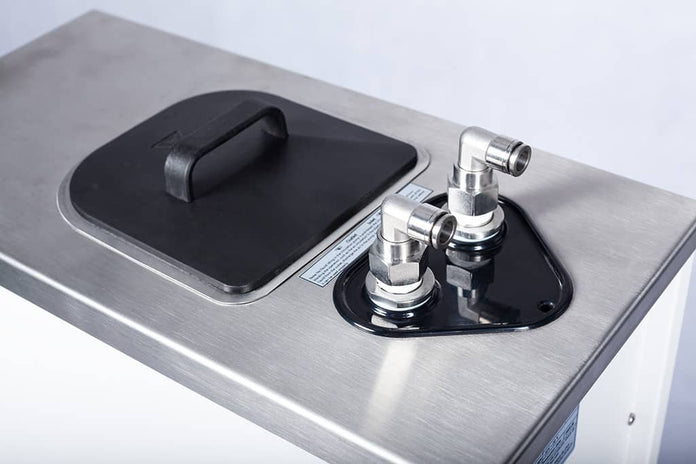

Inlet/Outlet Tube OD (mm):Ø12 (DN15)
-

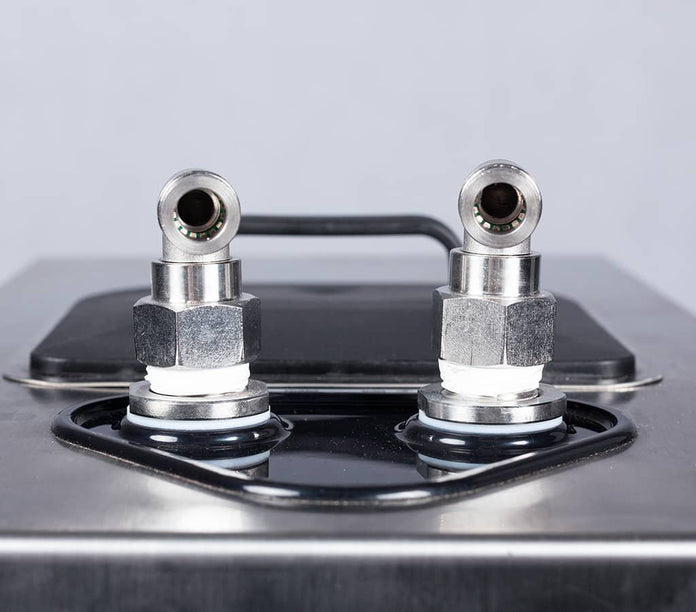

Inlet/Outlet Fitting Type:Push-to-Connect
Capacity - Electrical
-
Storage Tank:15.5L
-
Liquid:13L
-
Net Weight:60 kg
-
Feet / Caster:Locking casters
-
Noise:≤55 dB
-
Supported Rotavaps (Capacity x Units):5L x 2 or 10L x 1
-
Whole Unit Power:1300W
-
Electrical Plug Type:NEMA 5-15
-
Power Requirement:115VAC / 60Hz
-

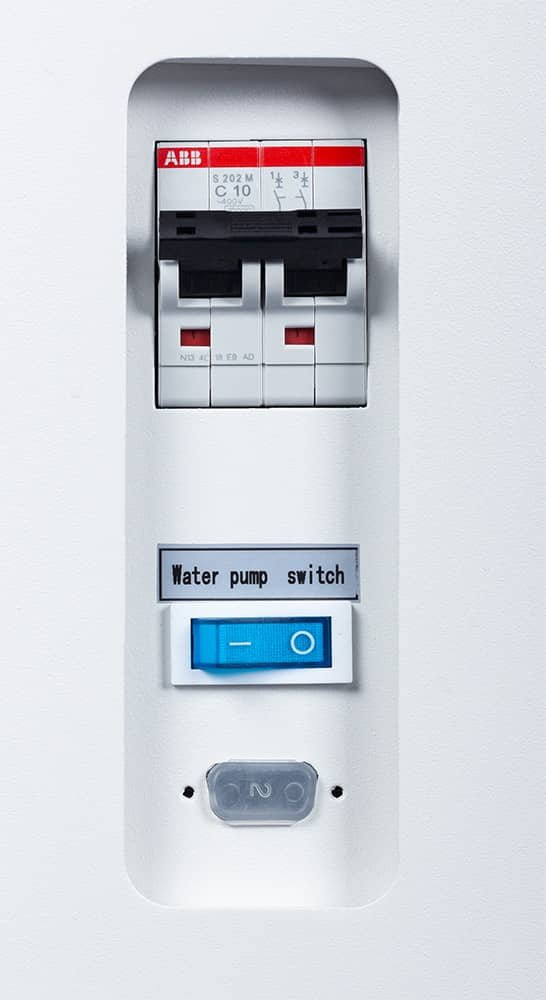

Safety Features:Delay, leakage, overcurrent, overvoltage
