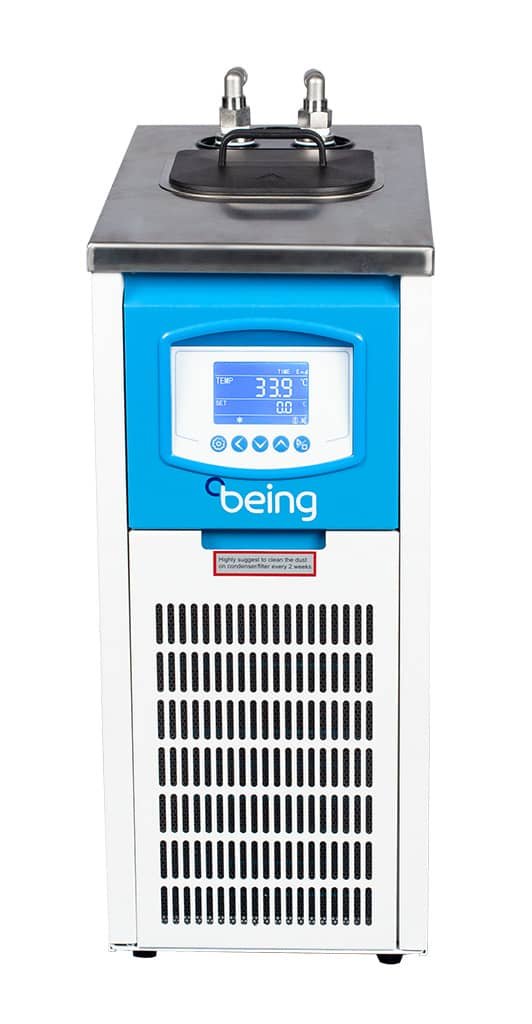

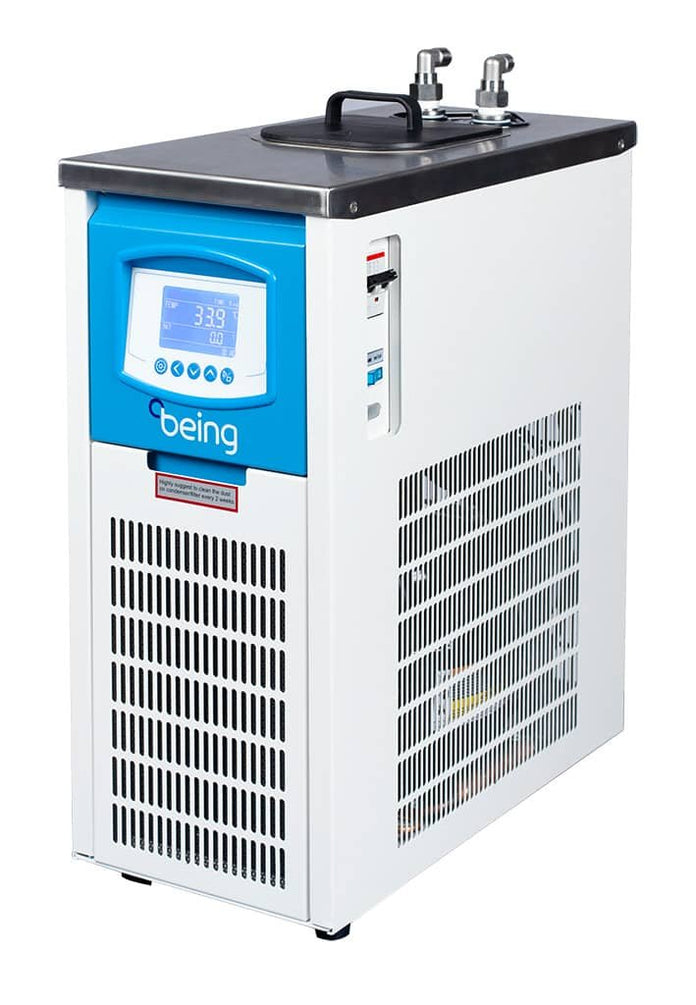

The BEING BRC Series cooling/heating recirculating chillers provide continuously reliable and stable laboratory temperature control for a wide range of applications like medical diagnostic equipment, rotary evaporators, vacuum systems, plasma etching, laser etching, and jacketed reactors, to name a few.

Features

The BEING BRC Series cooling/heating recirculating chillers provide continuously reliable and stable laboratory temperature control for a wide range of applications like medical diagnostic equipment, rotary evaporators, vacuum systems, plasma etching, laser etching, and jacketed reactors, to name a few.


Performance and Features


  • Designed so that test results are in line with international standards DIN 12880.

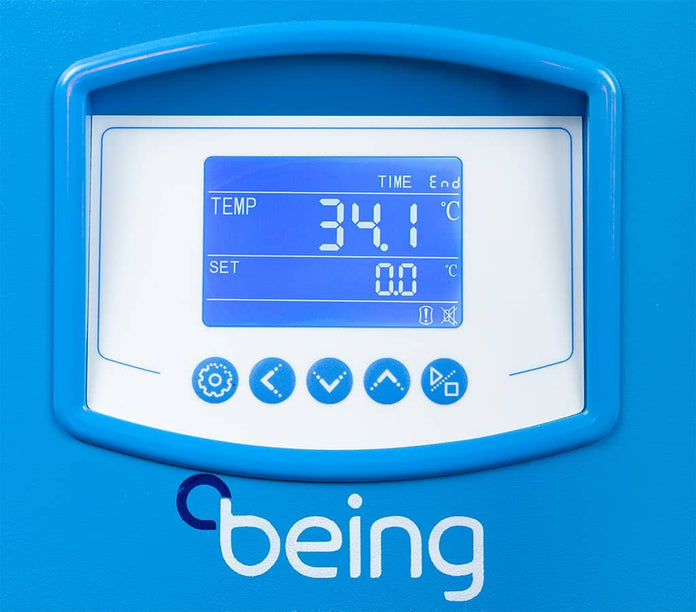

  • PID temperature controller with LCD screen provides accurate and reliable temperature control.
  • Automatic calibration function, be able to adapt to a variety of laboratory environments.

Convenience


  • A product line breadth to meet a variety of needs.
  • Wide range of options to meet a variety of experimental needs.
  • Temperature/Capacity/Liquid Flow/Pressure/Control Mode/Internal Circulation/External Circulation.

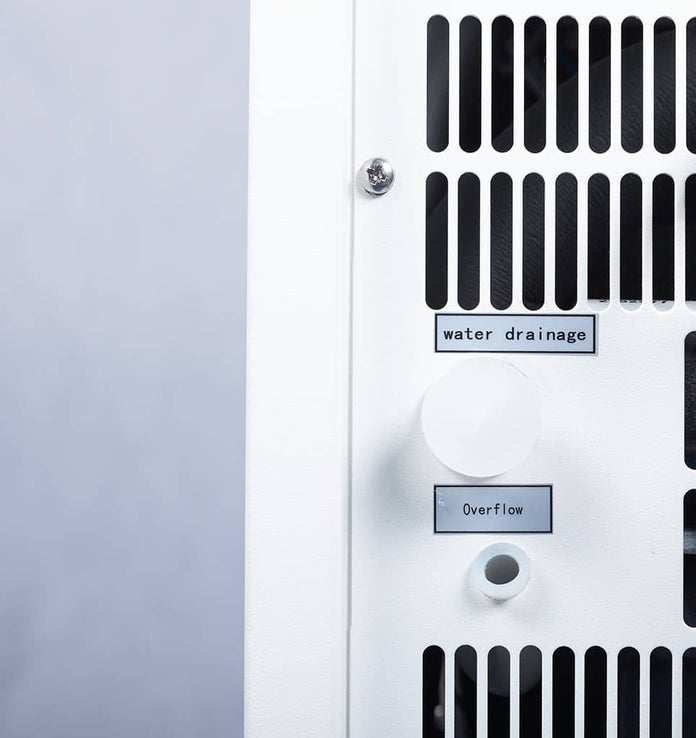

  • Convenient design for easy maintenance.
  • Round curved inner angle is easy to clean.

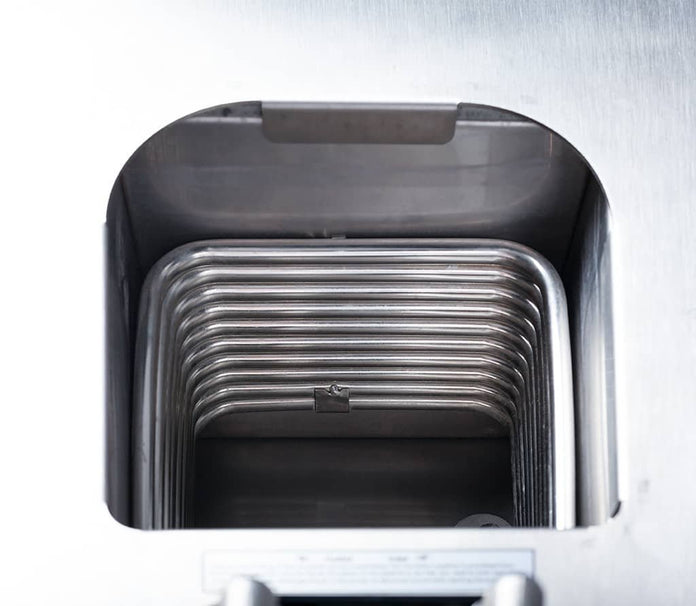

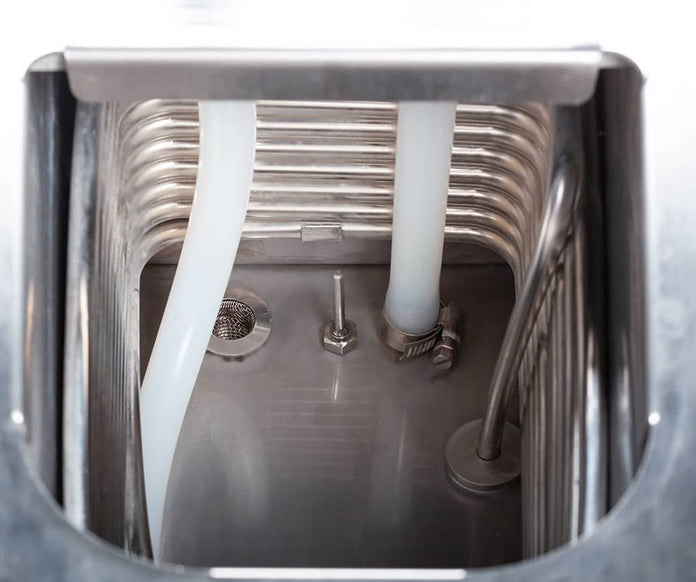

  • Inner chamber is made from corrosion-resistant mirror stainless steel.

Safety


  • Preset On/Off function.

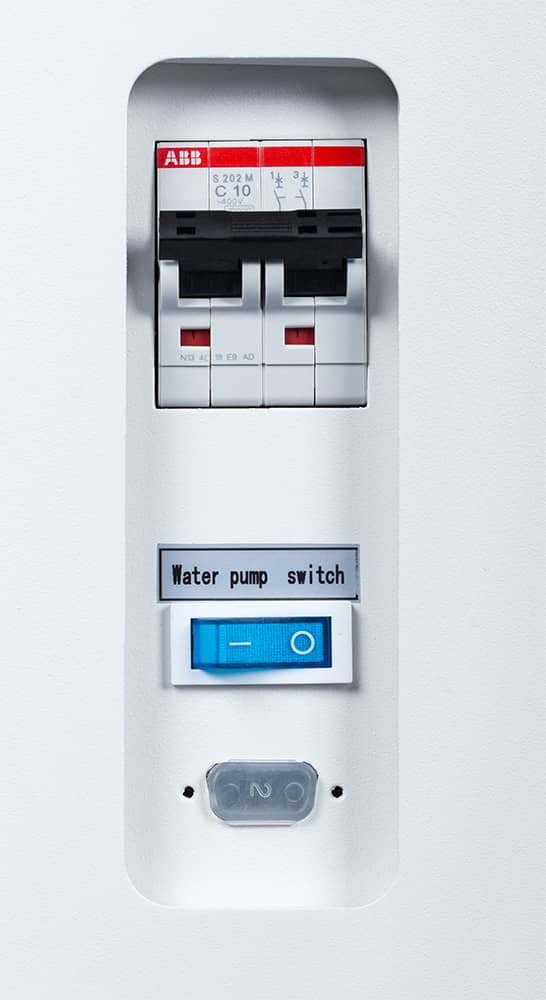

  • Built-in power interruption protection function, automatic run after power interruption.
  • Independent over-temperature protection meets DIN 12880 International standard requirements.
  • Temperature deviation alarm.
  • Over-current protection alarm.

Specifications

Overview

  • Nominal Height:
    20.1" (51.05 cm)
  • Nominal Width:
    9.1" (23.11 cm)
  • Nominal Length:
    17.7" (44.96 cm)
  • Capacity:
    0.2

Cooling Features

  • Lowest Temp Without Load:
    -20°C
  • Temperature Range:
    -20°C to 20°C
  • Temperature Stability:
    ±2°C
  • Cooling Capacity (W) @20°C:
    580
  • Cooling Capacity (W) @10°C:
    530
  • Cooling Capacity (W) @0°C:
    470
  • Cooling Capacity (W) @-10°C:
    300
  • Cooling Capacity (W) @-20°C:
    100
  • Refrigerant:
    R404A

Pump

  • Pump Type:
    DC Magnetic Drive Vortex
  • Recirculating Pump Power:
    30W
  • Pump Flow Rate:
    6 L/min
  • Max. Pump Head:
    9 m
  • Pump Max. Pressure:
    13 psi (90 kPa)

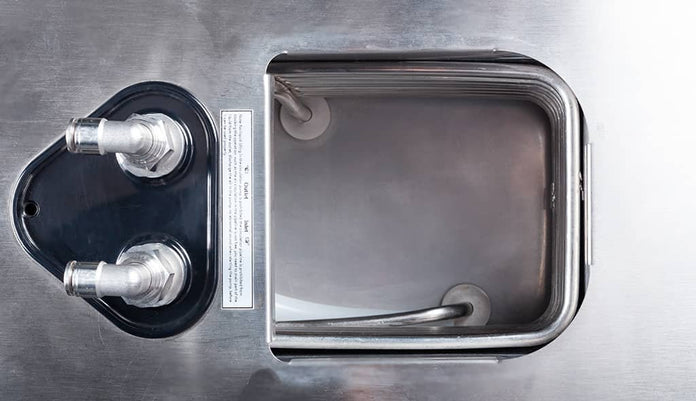

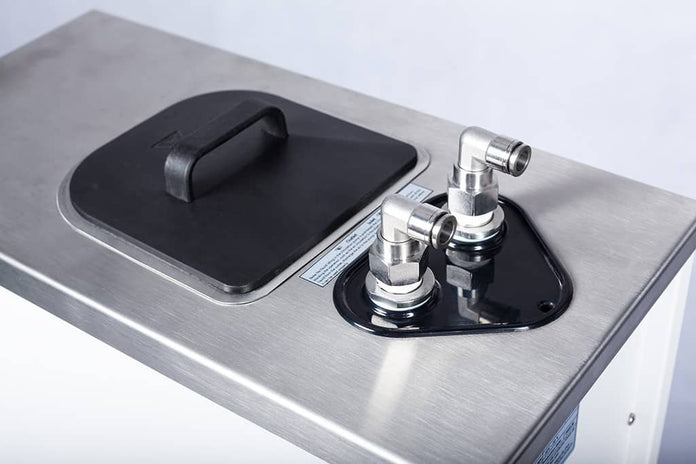

  • Inlet/Outlet Tube OD (mm):
    Ø10 (DN15)

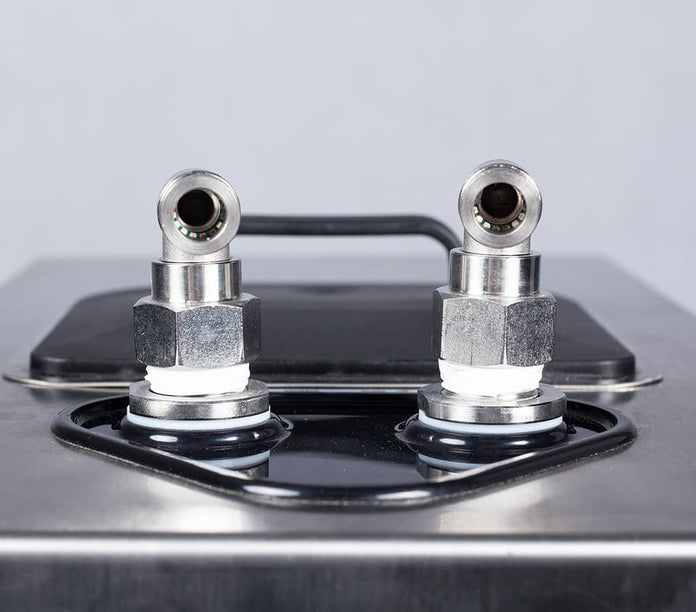

  • Inlet/Outlet Fitting Type:
    Push-to-Connect

Capacity - Electrical

  • Storage Tank:
    5L
  • Liquid:
    3.5L
  • Net Weight:
    32 kg
  • Feet / Caster:
    Feet
  • Noise:
    ≤45 dB
  • Supported Rotavaps (Capacity x Units):
    2L x 1
  • Whole Unit Power:
    550W
  • Electrical Plug Type:
    NEMA 5-15
  • Power Requirement:
    115VAC / 60Hz
  • Safety Features:
    Delay, leakage, overcurrent, overvoltage
