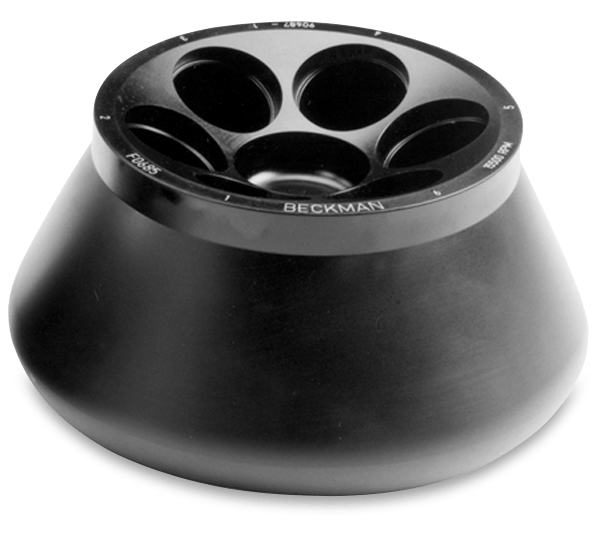

Rotor assembly F0685.

Features

F0685 Fixed-Angle Rotor, Aluminum



  • Major applications: Pelleting subcellular organelles, viruses, bacteria, mitochondria, chloroplasts, or algae.
  • Places: 6
  • Tube Volumes: 85ml microcentrifuge tubes



Allegra 64R, Allegra X-22, Allegra X-22R; Max RPM 15,500, 8,000, 10,000; Max RCF 26,320, 6,953, 10,864.



Notes: Maximum speed/RCF are different in the Allegra 64R and Allegra X-22 centrifuges. This rotor is rated at a lower speed in the Allegra X-22 and X-22R centrifuges, so g-forces and k factors are different.



For use in Allegra 64R, Allegra X-22 Series, and discontinued GS-15 Series, Allegra 21 Series and Avanti 30 centrifuges.

Specifications

Overview

Technical Data

  • Platform:
    Allegra 64
  • Angle:
    25
  • Max g-Force:
    26,320.00
  • Number of Tubes:
    6 x 85ml/38 x 104mm(6 x 85ml/2 x 4 in)

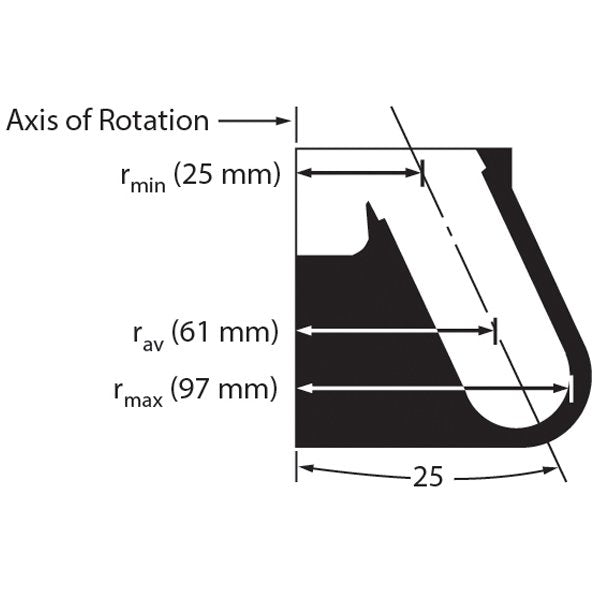

  • RMAX:
    97
  • RAV:
    61mm
  • Rotor Type:
    Fixed-Angle (General Purpose)
  • Maximum RPM:
    15,500 rpm (Performance based on Allegra 64R)
  • K-Factor:
    1,428
  • Nominal Capacity:
    510ml
  • RMIN:
    25
  • Materials:
    Aluminum
