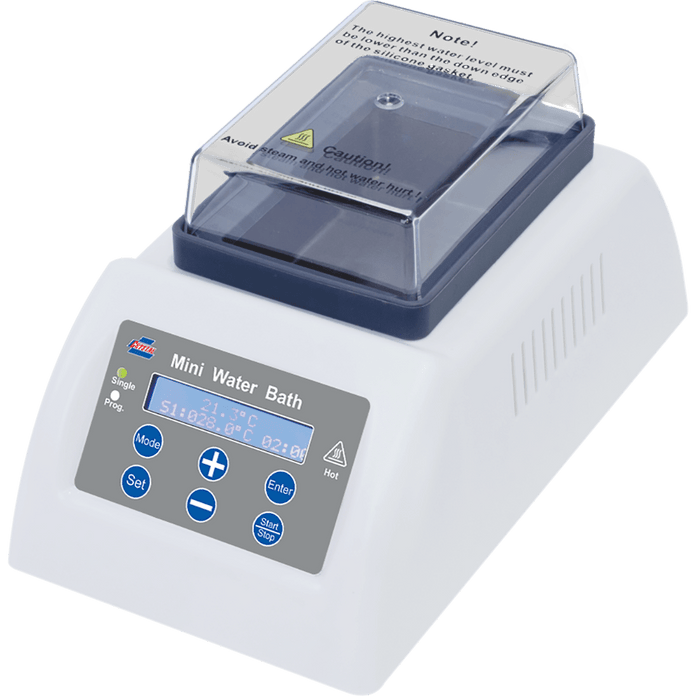

Crystal Industries - WB-01A - Digital Mini Water Bath
Features
Crystal Digital Mini Waterbaths, with 240ml capacity, is designed to provide highly precise and accurate temperature control from ambient to 100°C for various size tubes (0.2ml microtubes to 7ml tubes), within a unique, convenient space-saving footprint.
- Microprocessor PID control with digital display
- Excellent temperature uniformity
- Overheating alarm and automatic shut off
- Dry run protection with audible alarm to avoid damage if the water level is too low
- Indicator light illuminates when temperature >60°C
- Various tube holders are available to order separately
Specifications
Overview
-
Nominal Height:3.8" (9.65 cm)
-
Nominal Width:5.6" (14.22 cm)
-
Nominal Length:10.3" (26.16 cm)
Technical Data
-
Temperature Range:Ambient +5°C~100°C
-
Temperature Stability:@37°C, ≤±0.1°C (Water Temp)
-
Temperature Uniformity:@37°C, ≤±0.3°C (Water Temp)
-
Heat Up Time:20°C to 95°C, ≤60 min
-
Timer:0~99 h 59 min or Continuous
-
Programmable:6 Segments
-
Display:LCD
-
Capacity:240ml
-
Chamber Dimensions:113 x 76 x 39 mm (4.5 x 3.0 x 1.5 inch)
-
Accessories Included in Standard Packaging:1 x WBA14 Vapor Insulating Cover
-
Ambient Temperature:5°C~40°C
-
Ambient Relative Humidity:≤85%
-
Power Supply:AC110V±11V, 60Hz
-
Max Power:100W
-
Net Weight:1.2 kg (2.7 lbs)
-
Protection Level:IP22
-
Certifications:CE
